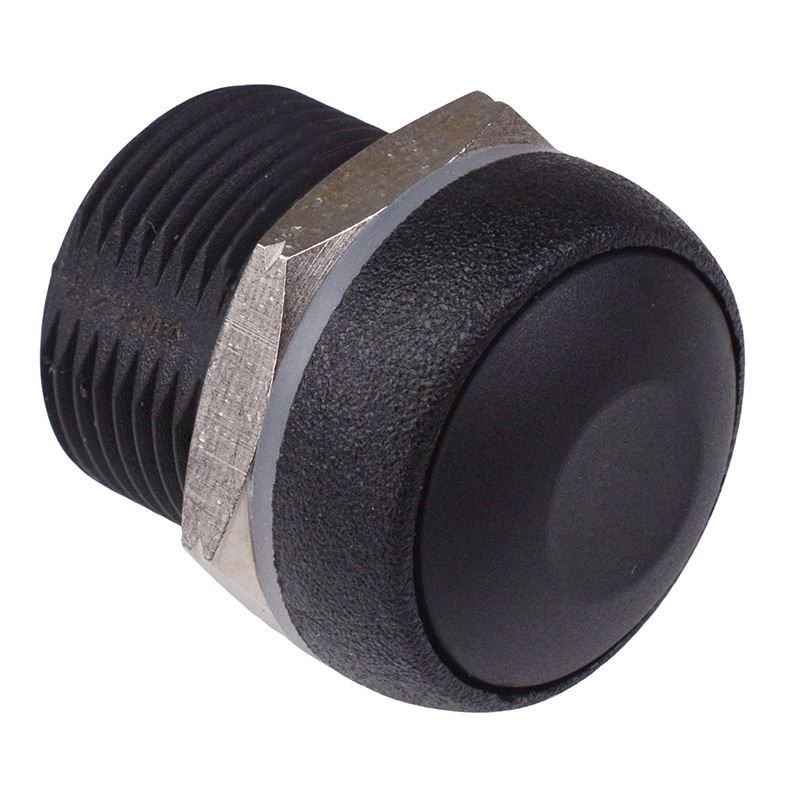

IRR3S422 Black Momentary 16mm Push Button Switch SPST IP67 APEM

The IRR3S422 is a black momentary push button switch with a 16mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

Momentary operation

Tactile feedback

SPST contacts

16mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 200mA 48VDC, 5A 28VDC

Panel thickness: 8mm max

Dimensions: 25.4 x 19.8mm (length x diameter)
