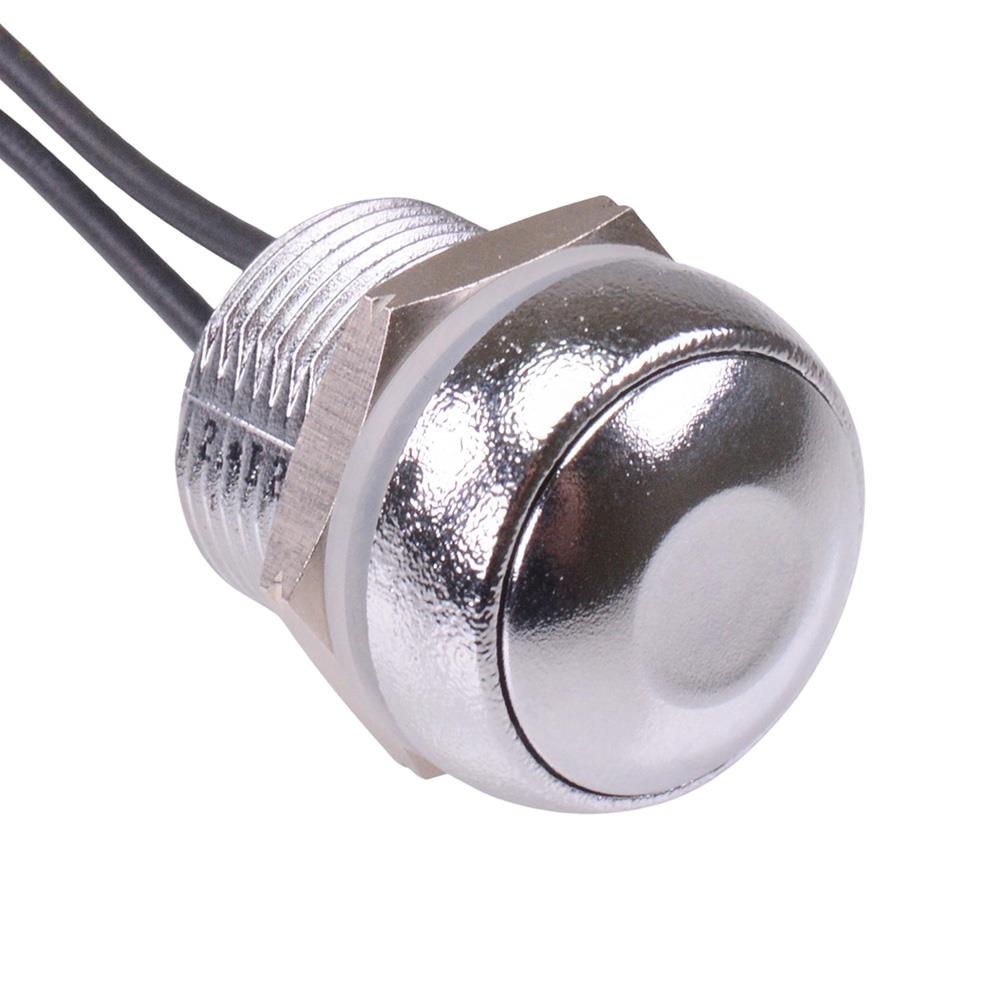

IRR3F488 APEM Chrome Round 16mm Momentary Push Button Switch Prewired IP67

The IRR3F488 is a round sealed momentary push button switch with a 16mm bushing and normally open SPST contacts. The switch features IP67 protection rating and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: chrome

Panel cut-out: 16.2mm

Contacts: momentary normally open

Terminals: 500mm flying leads

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 21.8mm (diameter x height)
