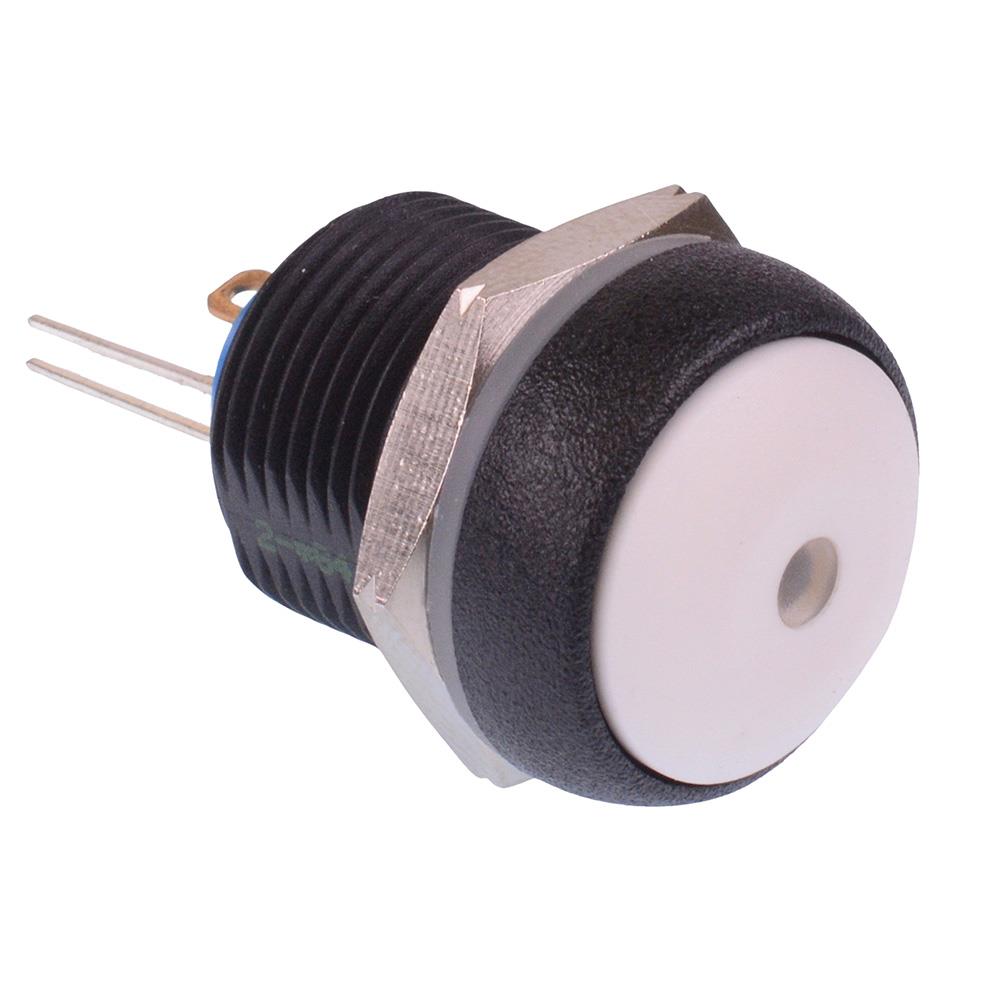

IRR1S472L0Y APEM Yellow LED White Button Round 16mm Latching Push Button Switch IP67

The IRR1S472L0Y is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and solder lug terminals. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: white

LED colour: yellow

LED forward voltage: 2.1V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: latching SPST

Terminals: solder lug

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 31mm (diameter x height)
