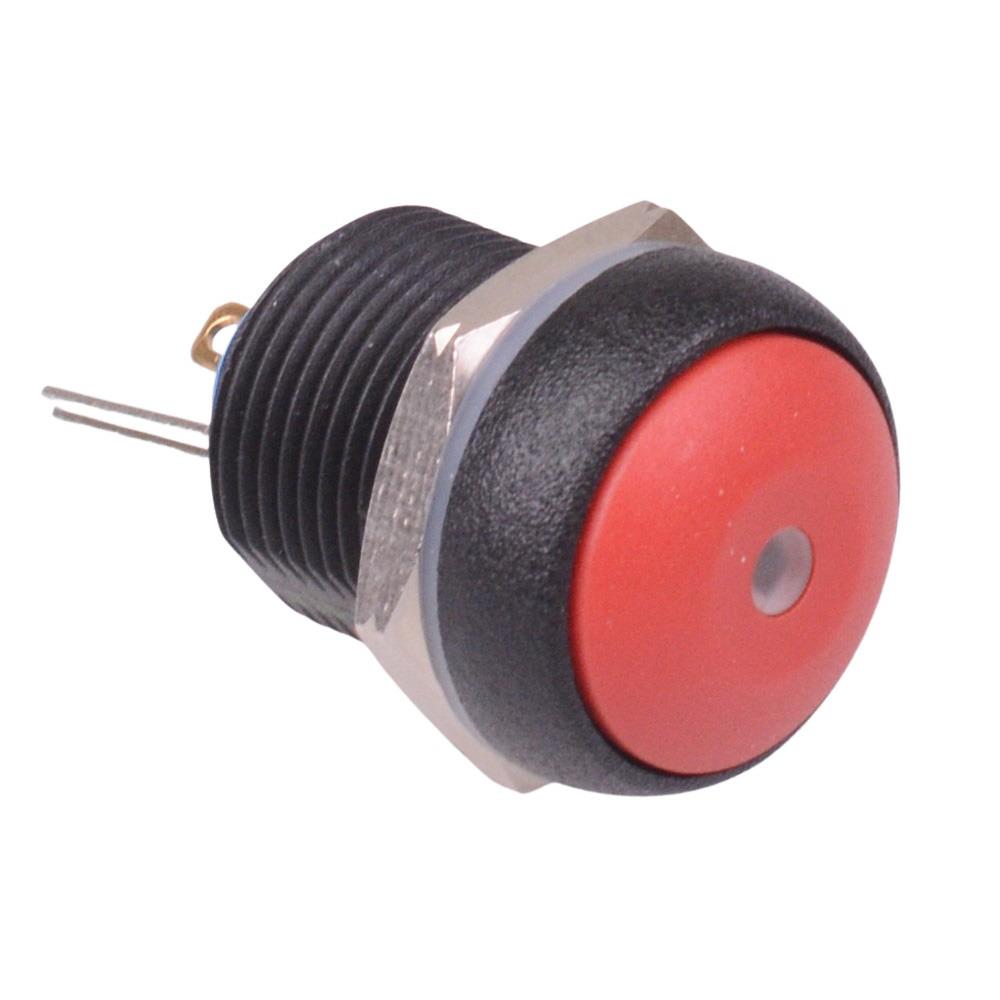

IRR1S462L0S APEM Red LED Red Button Round 16mm Latching Push Button Switch IP67

The IRR1S462L0S is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and solder lug terminals. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: red

LED colour: red

LED forward voltage: 1.95V

LED forward current: 20mA

Contact configuration: SPST

Panel cut-out: 16.2mm

Contacts: gold plated silver

Terminals: solder lug

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 27.7mm (diameter x height)
