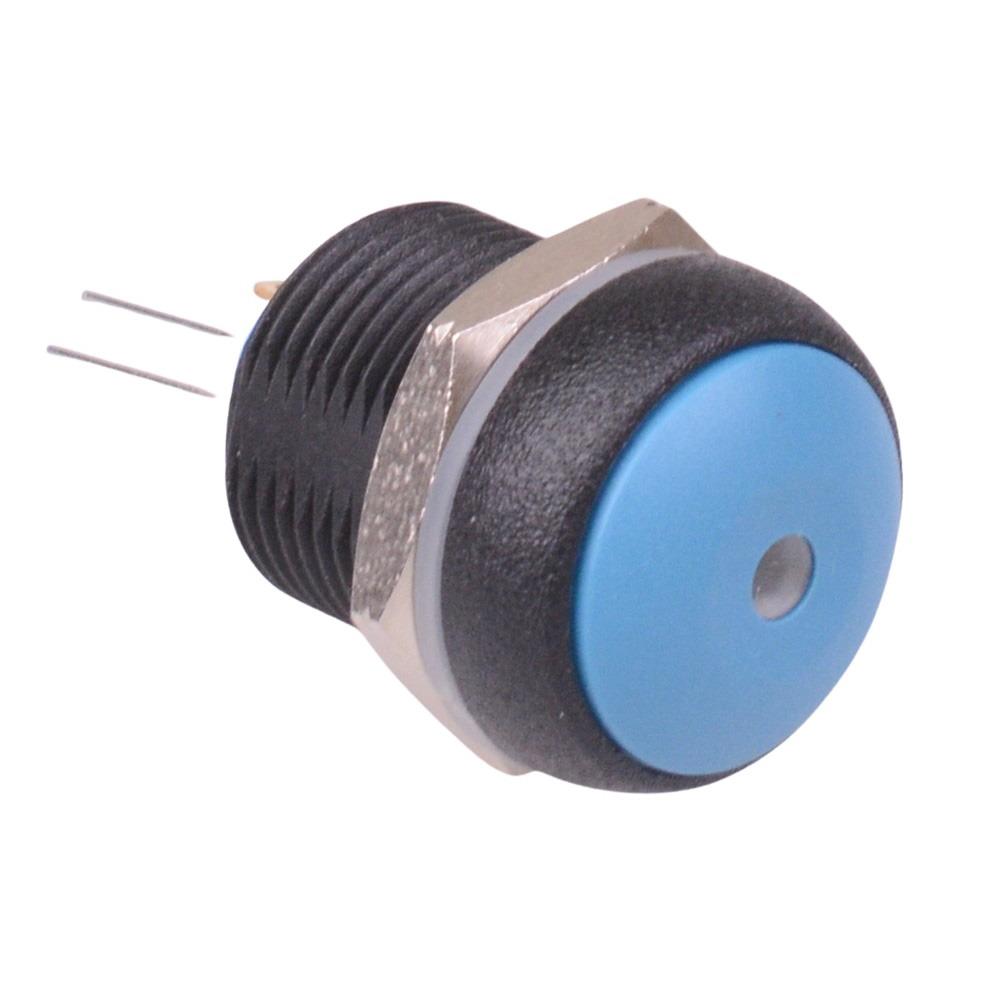

IRR1S412L0B APEM Blue LED Blue Button Round 16mm Latching Push Button Switch IP67

The IRR1S412L0B is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and solder lug terminals. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: blue

LED colour: blue

LED forward voltage: 3.2V

LED forward current: 20mA

Contact configuration: SPST

Panel cut-out: 16.2mm

Contacts: gold plated silver

Terminals: solder lug

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 27.7mm (diameter x height)
