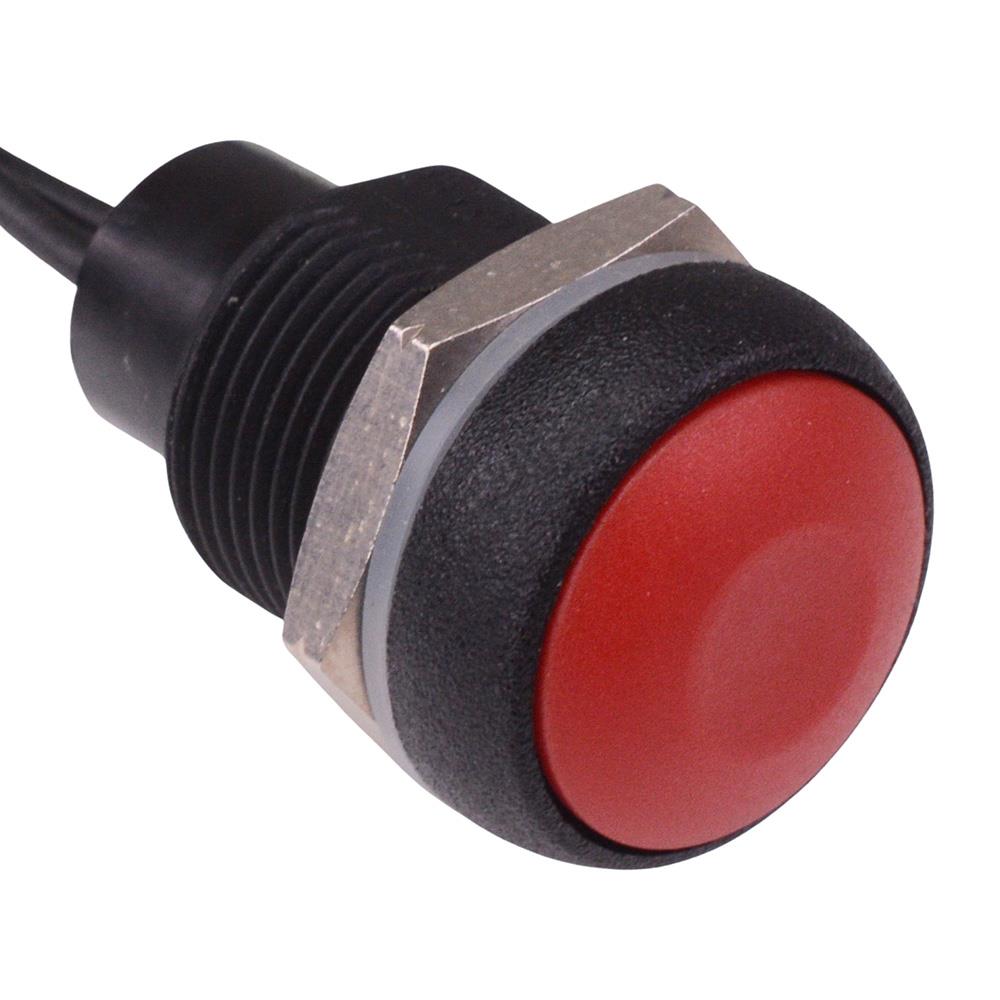

IRR1F462 APEM Red Round 16mm Latching Push Button Switch Prewired IP67

The IRR1F462 is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: red

Panel cut-out: 16.2mm

Contacts: latching SPST

Terminals: 500mm flying leads

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 31mm (diameter x height)
