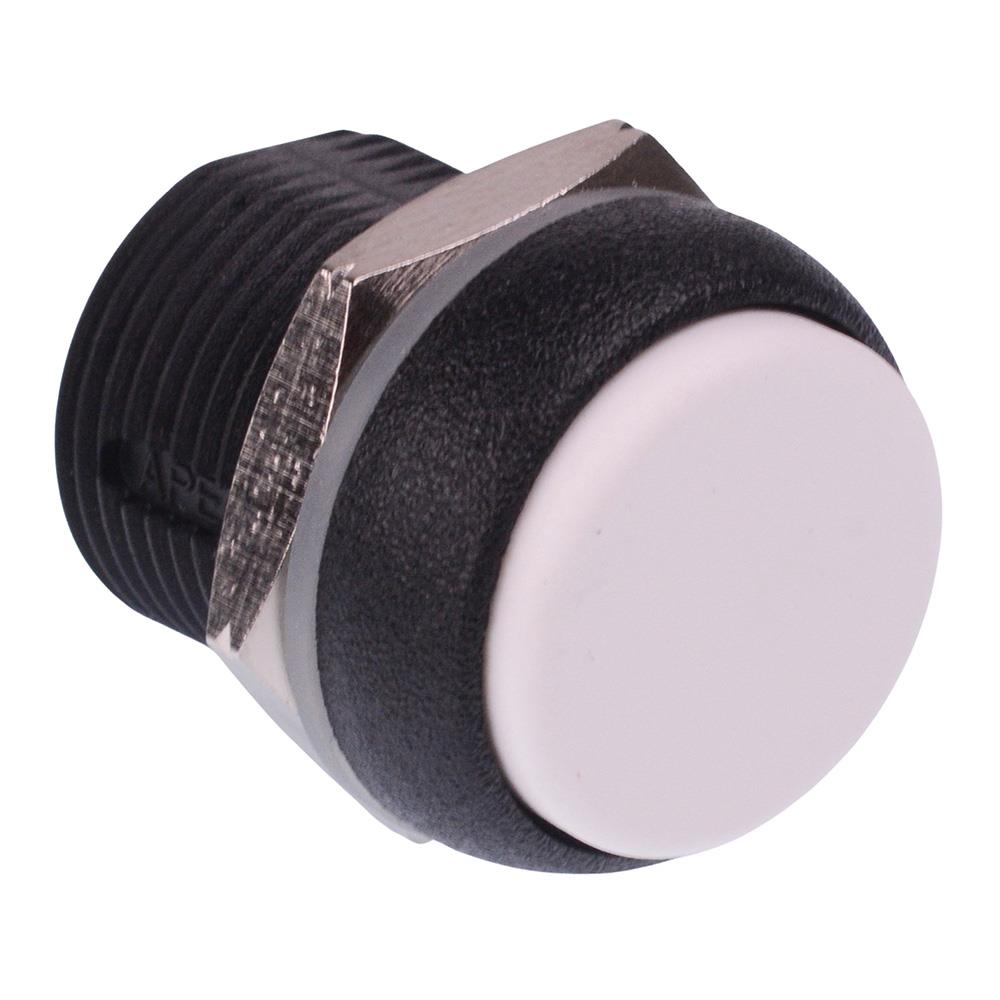

IRP3S472 APEM White Round 16mm Momentary NO Push Button Switch IP67

The IRP3S472 is a round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug contacts. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: white

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: solder lug contacts

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 26.3mm (diameter x height)
