IRC8Z262 APEM Red Square 16mm Momentary Push Button Switch DPDT 5A IP67

IRC8Z262 APEM Red Square 16mm Momentary Push Button Switch DPDT 5A IP67

£16.42
£14.47 £16.42
Sale Sold out

Order Code: 487625

Delivery calculated at checkout.
Available Online Only

Low stock: 1 left
View full details

Product Description

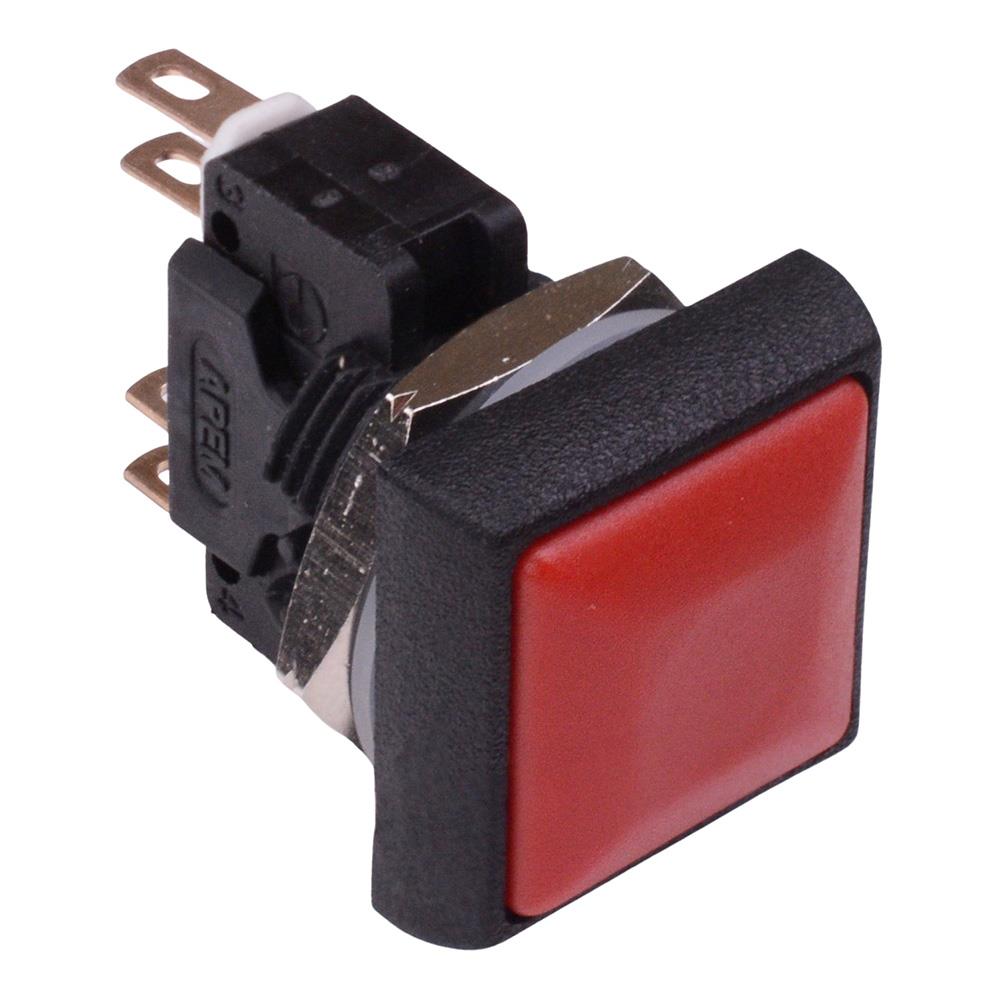

The IRC8Z262 is a square sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

  • Button colour: red
  • Panel cut-out: 16.2mm
  • Contacts: DPDT
  • Terminals:quick connect / solder lug contacts
  • Contact rating: 5A 250VAC
  • Protection rating: IP67
  • Maximum panel thickness: 3mm
  • Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
