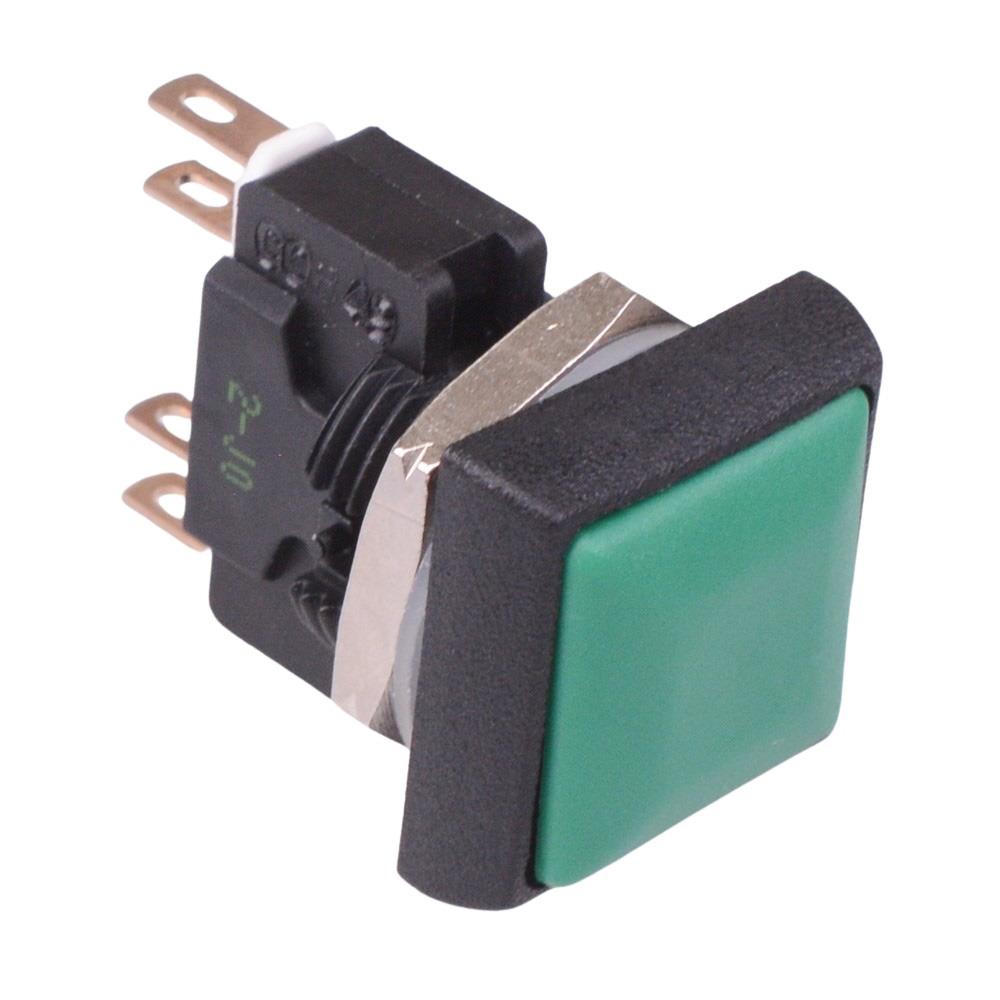

IRC8Z232 APEM Green Square 16mm Momentary NO/NC Push Button Switch DPDT 5A IP67

The IRC8Z232 is a green square sealed momentary push button switch with a 16mm bushing and combined NO/NC contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

Button colour: green

Panel cut-out: 16.2mm

Contacts: NO/NC combined

Terminals: quick connect / solder lug contacts

Contact rating: 5A 250VAC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
