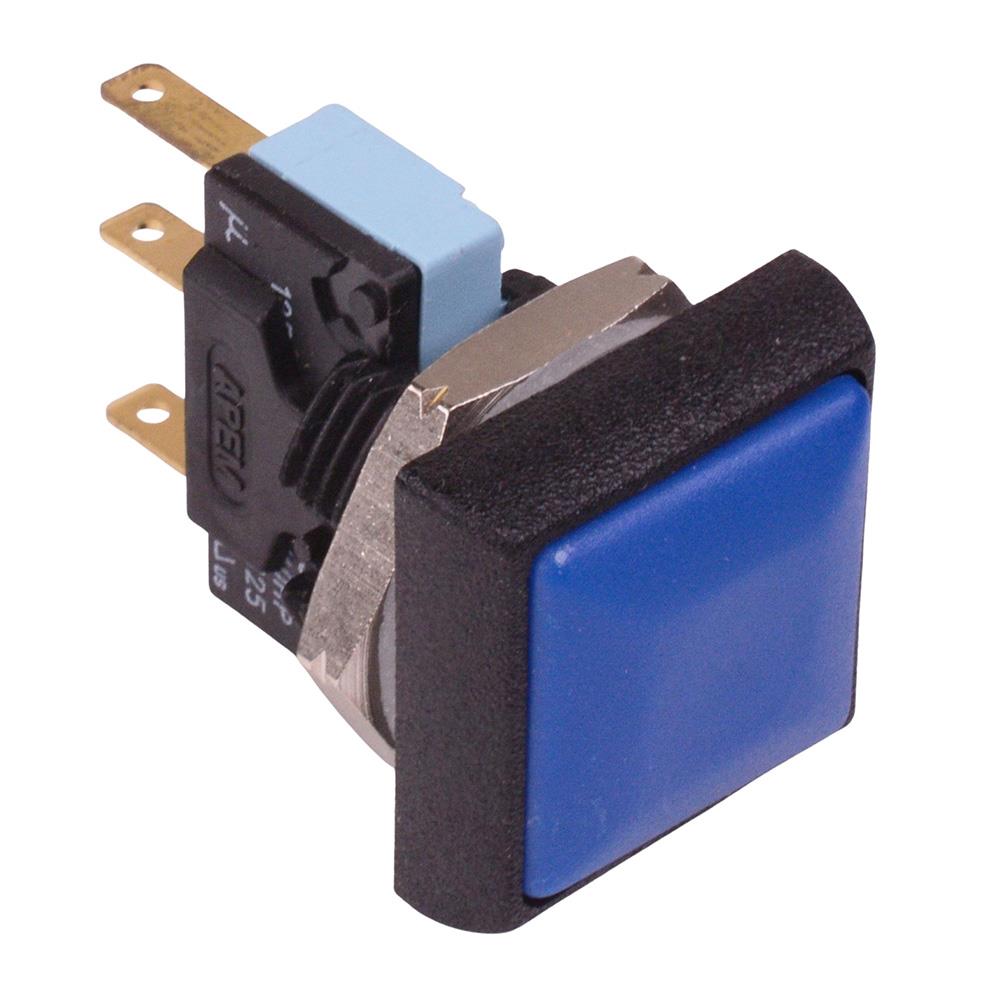

IRC7Z2B2 APEM Dark Blue Square 16mm Momentary Push Button Switch SPDT 5A IP67

The IRC7Z2B2 is a square sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

Button colour: dark blue

Panel cut-out: 16.2mm

Contacts: momentary NO + NC

Terminals:quick connect / solder lug contacts

Contact rating: 5A 250VAC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
