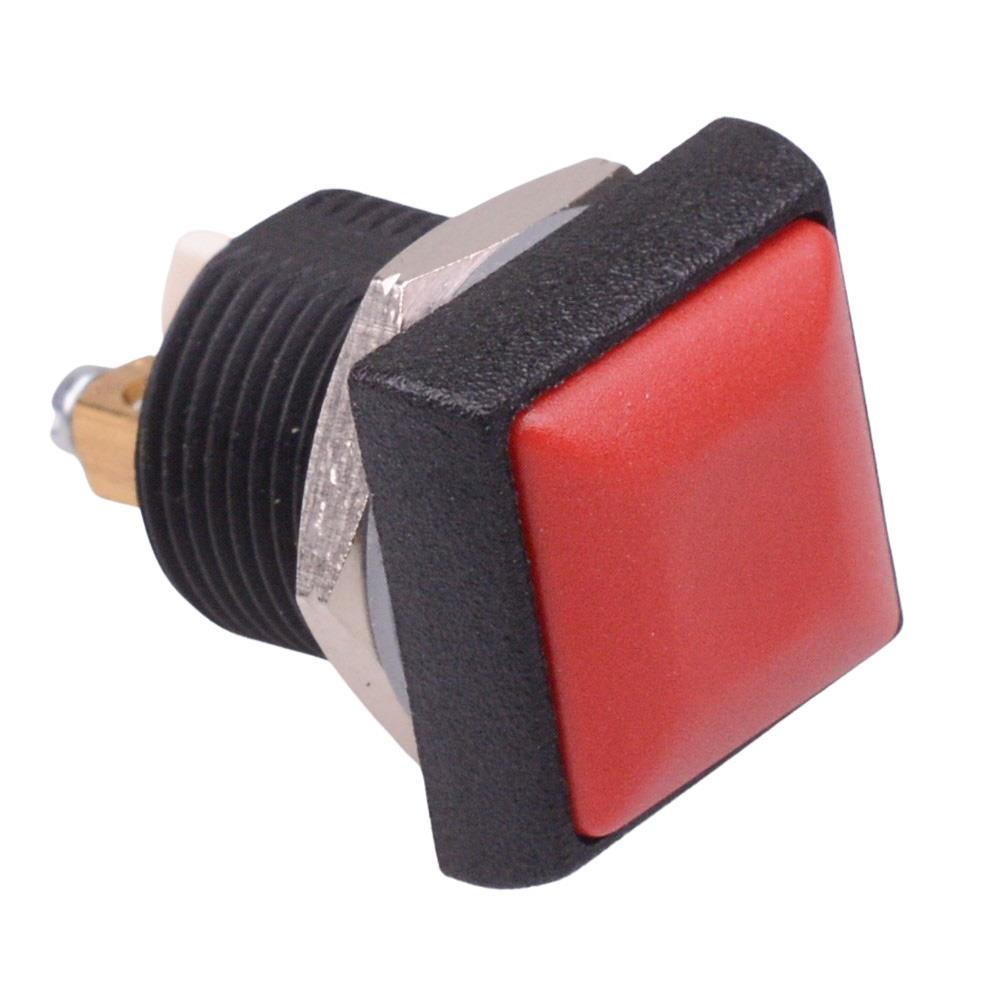

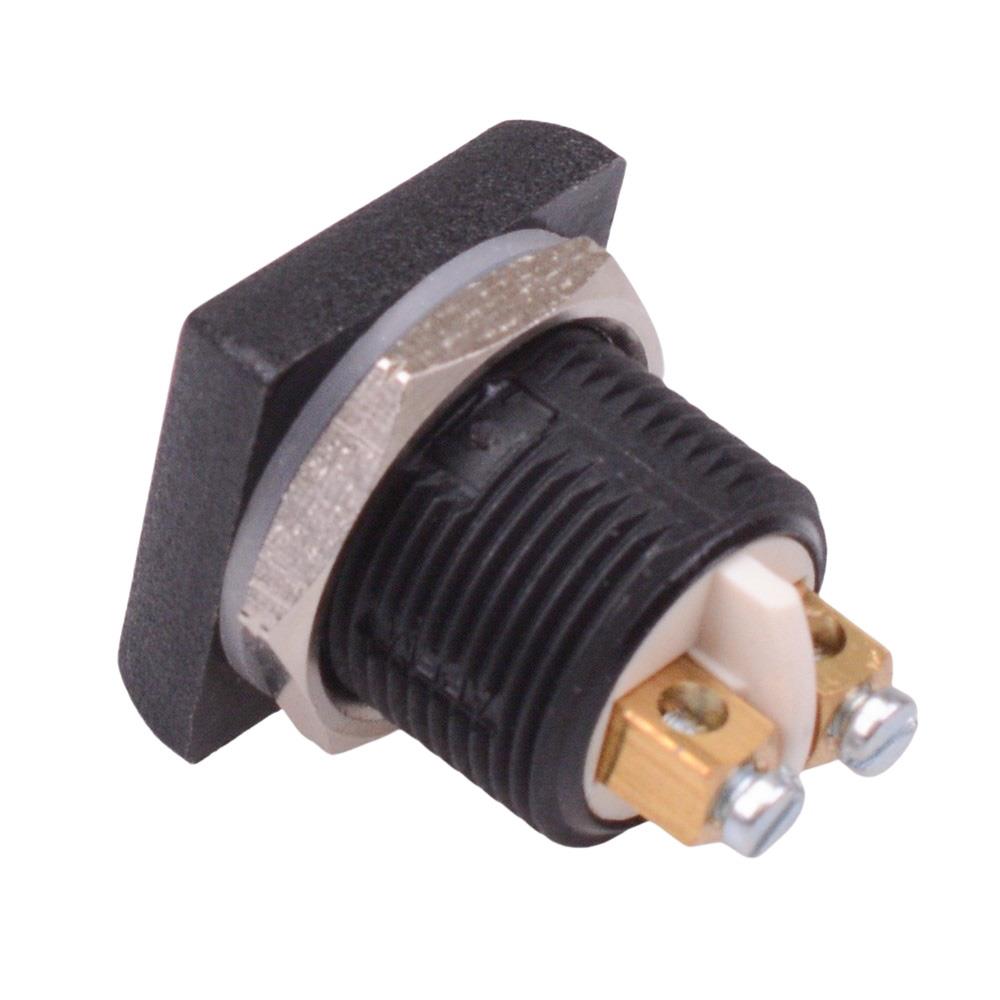

IRC3V262 APEM Red Square 16mm Momentary NO Push Button Switch Screw Terminals IP67

The IRC3V262 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and screw contacts rated up to 4A 48VDC. The switch is suitable for applications including automotive and marine.

Button colour: red

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: screw

Contact rating: 4A 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 30.5mm (length x width x height)
