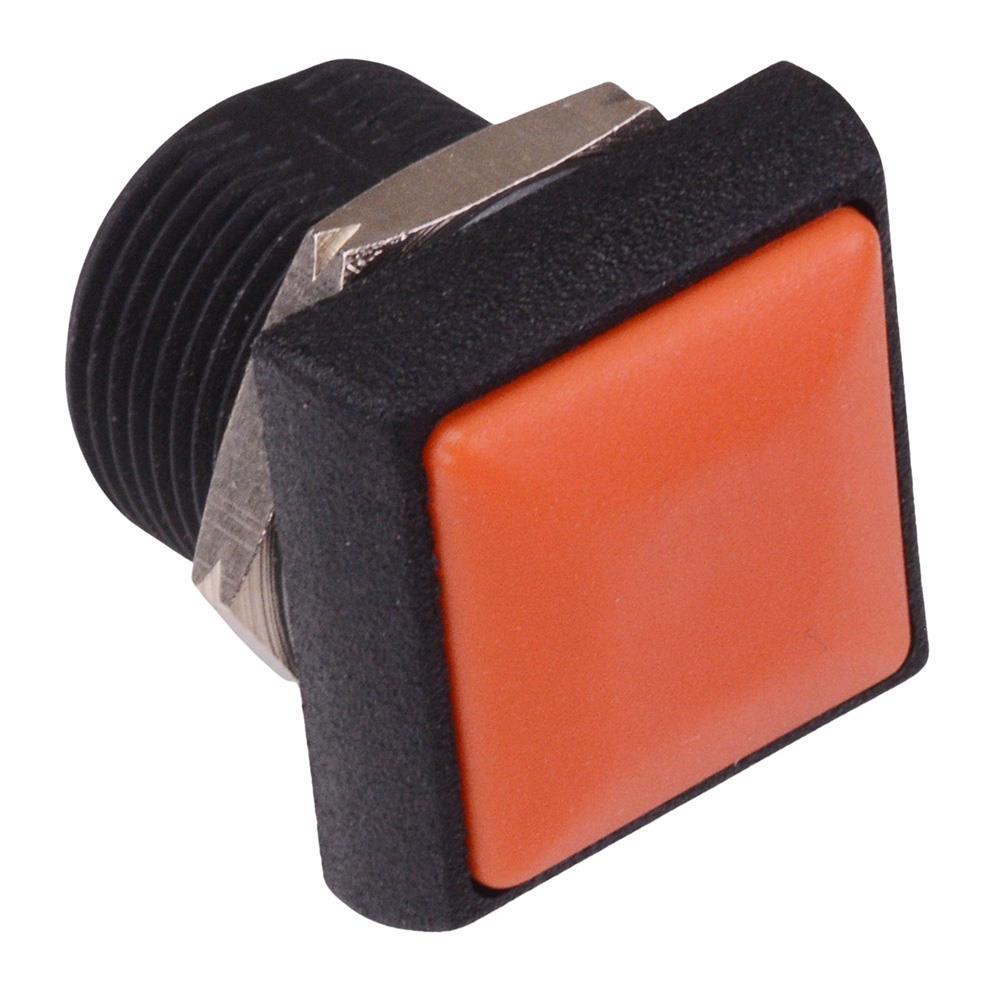

IRC3S492 APEM Orange Square 16mm Momentary NO Push Button Switch IP67

The IRC3S492 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.

Button colour: orange

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals:solder lug contacts

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
