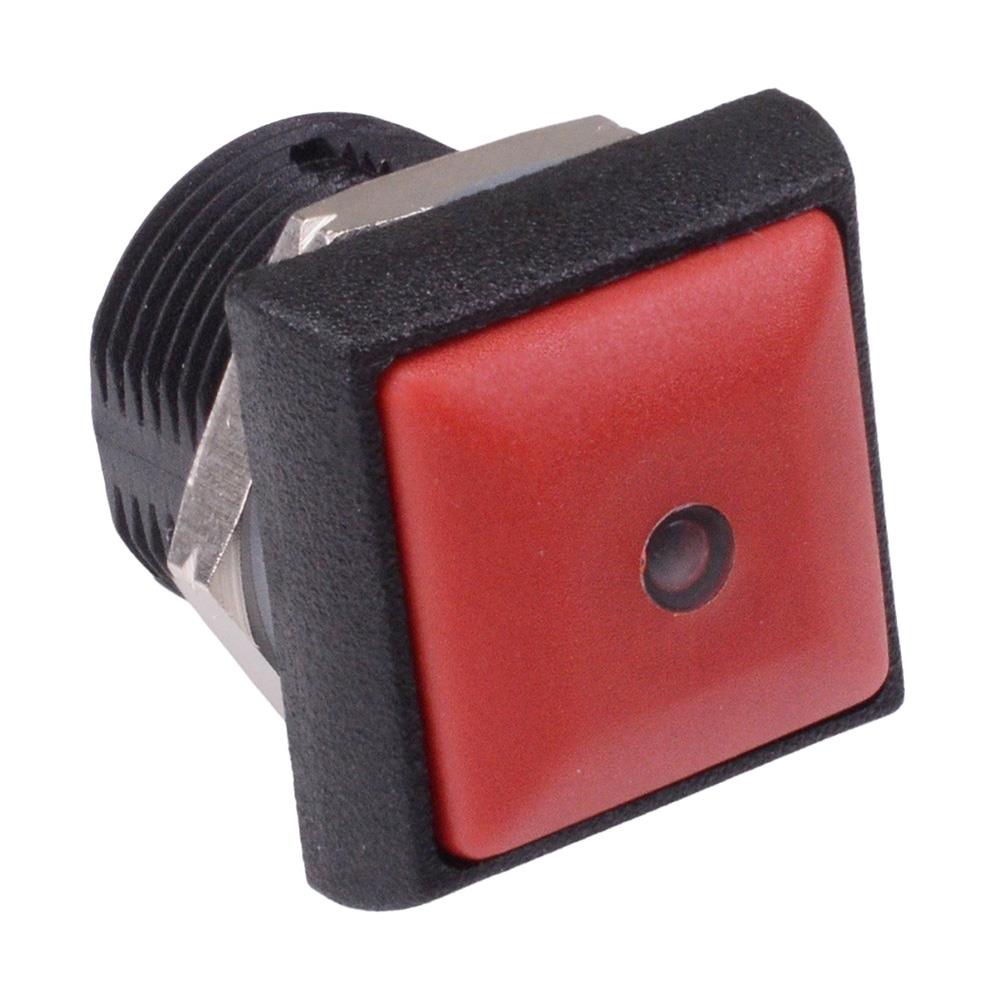

IRC3S462L0S APEM Red LED Red Button Square 16mm Momentary NO Push Button Switch IP67

The IRC3S462L0S is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.

Button colour: red

LED colour: red

LED forward voltage: 2.1V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: solder lug

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
