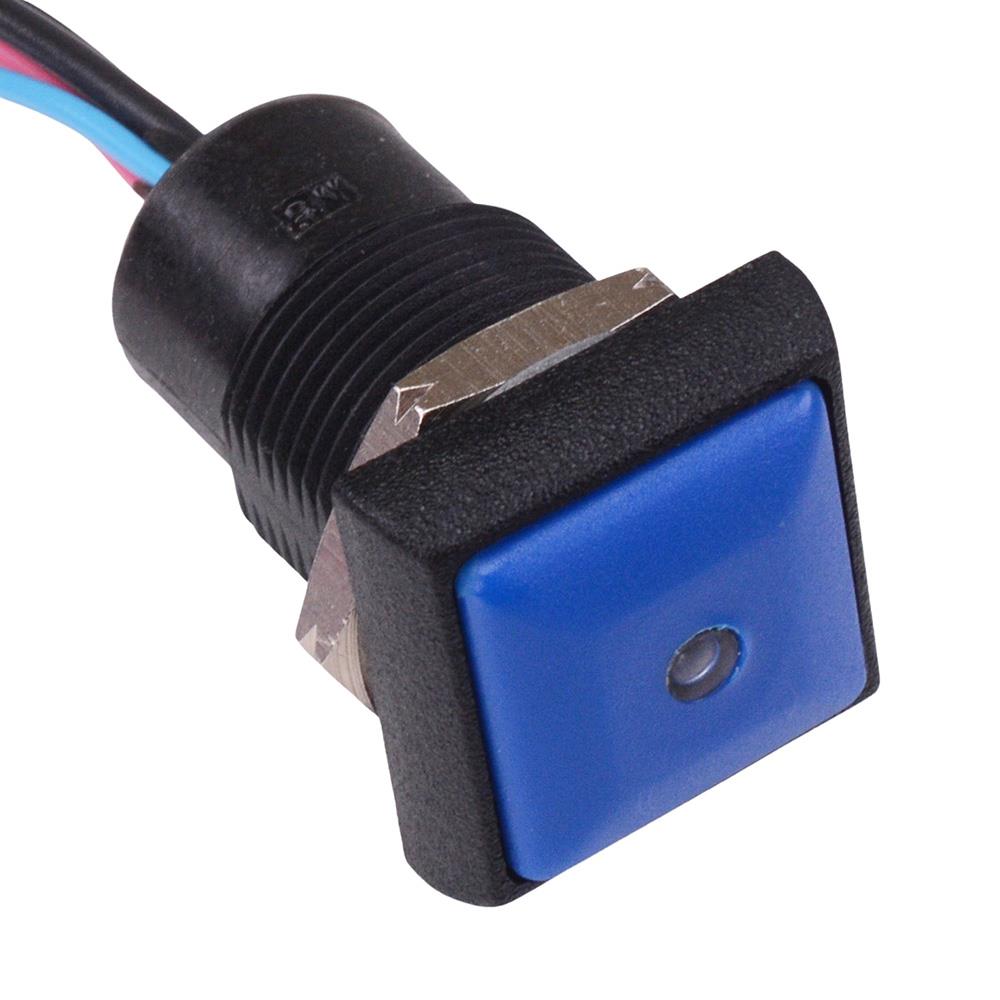

IRC3F4B2L0B APEM Blue LED Blue Button Square 16mm Momentary NO Push Button Switch Prewired IP67

The IRC3F4B2L0B is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: dark blue

LED colour: blue

LED forward voltage: 3.2V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: 500mm flying leads

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
