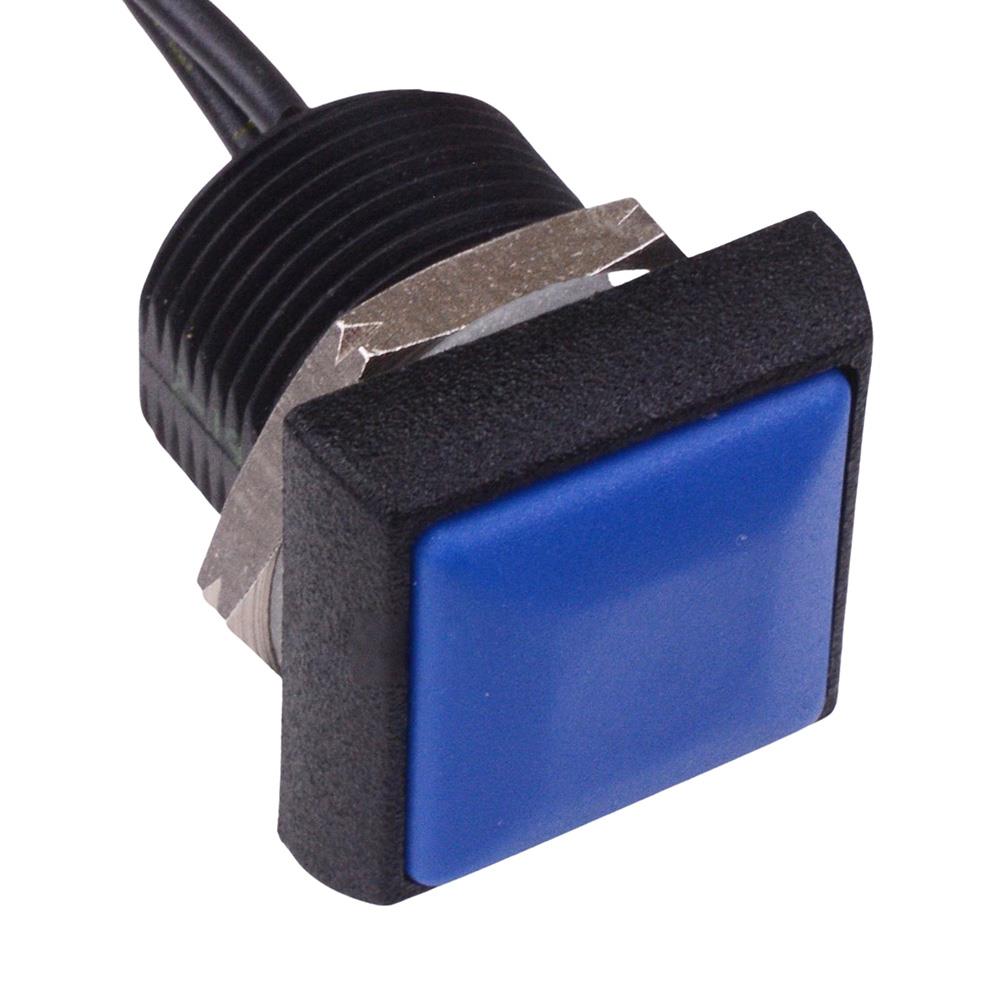

IRC3F4B2 APEM Dark Blue Square 16mm Momentary NO Push Button Switch Prewired IP67

The IRC3F4B2 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: dark blue

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: 500mm flying leads

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
