IQR1S422L0Y APEM Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST

IQR1S422L0Y APEM Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST

£13.41
£13.41
Sale Sold out

Order Code: 487695

Delivery calculated at checkout.
Available Online Only

2 in stock
View full details

Product Description

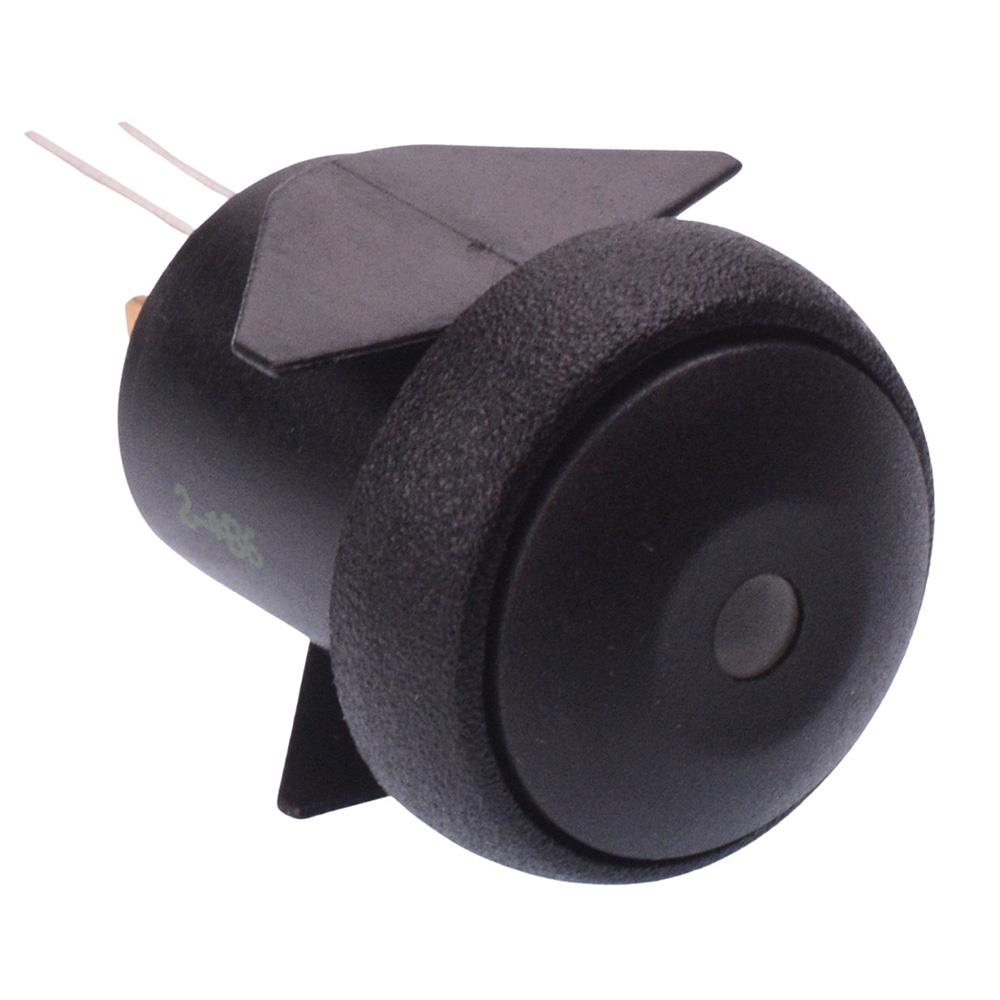

The IQR1S422L0Y is a black latching round push button switch with a snap-in bushing and yellow LED. The switch features solder lug terminals and SPST contacts, suitable for applications including automotive.

  • Latching operation
  • Yellow LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Solder lug terminals
  • SPST contacts
  • Snap-in mounting
  • IP54 protection level
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC
  • Panel thickness: 2.2mm max
  • Dimensions: 27.7 x 19.8mm (height x diameter)
