IPR5SAD3 Green Momentary 12mm Push Button Switch SPDT IP67 APEM

IPR5SAD3 Green Momentary 12mm Push Button Switch SPDT IP67 APEM

£22.36
£12.48 £22.36
Sale Sold out

Order Code: 485998

Delivery calculated at checkout.
Available Online Only

46 in stock
View full details

Product Description

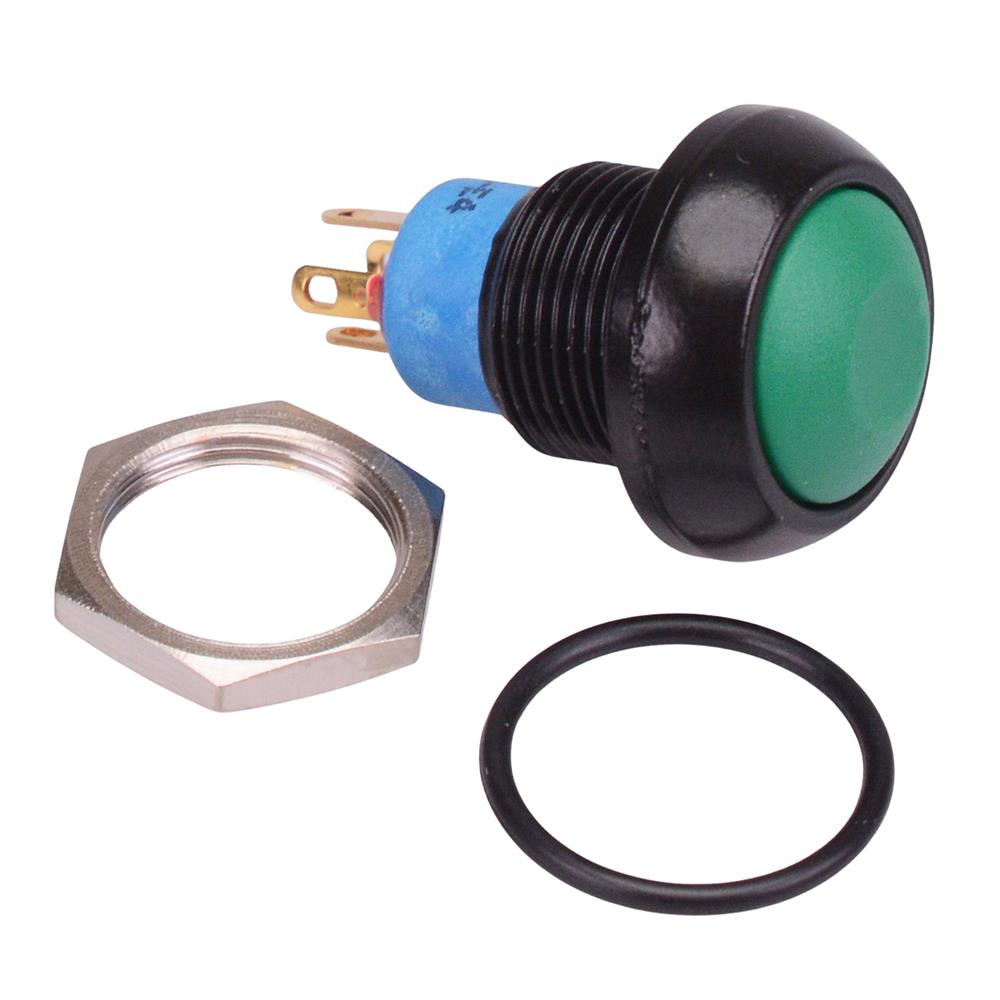

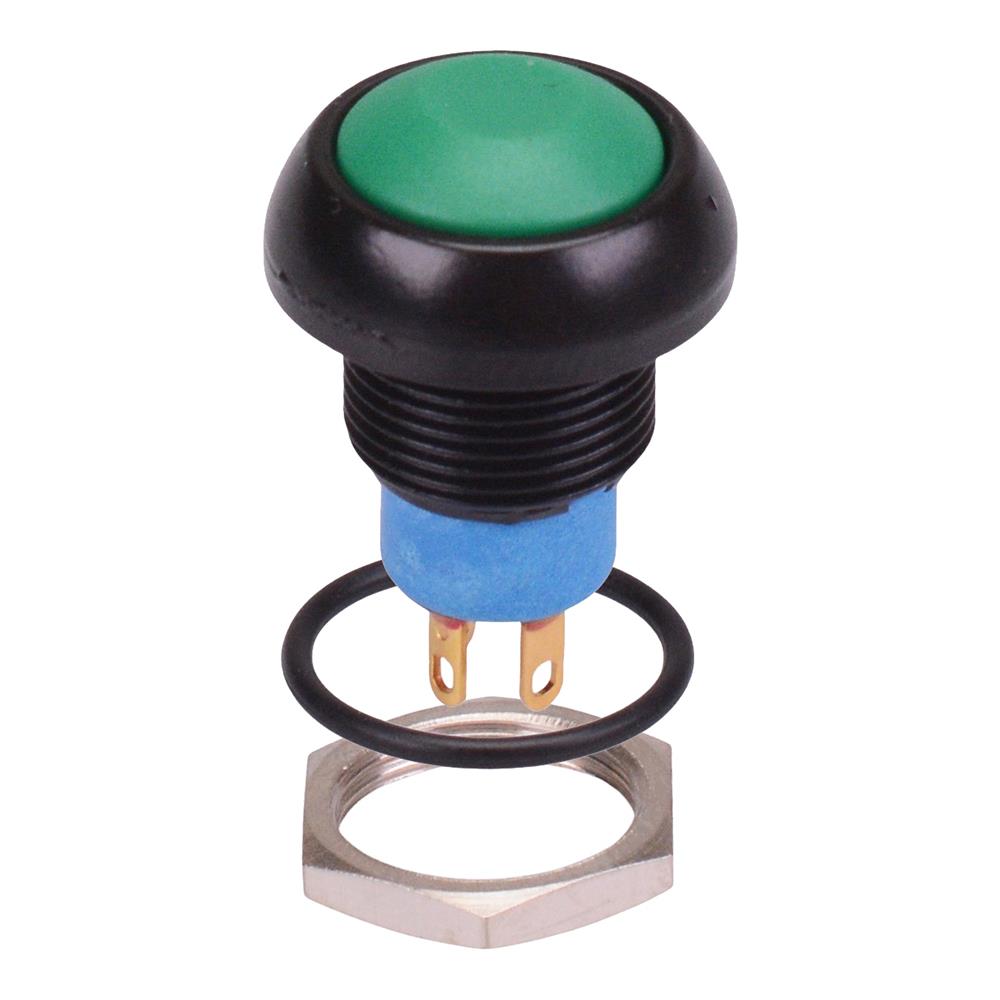

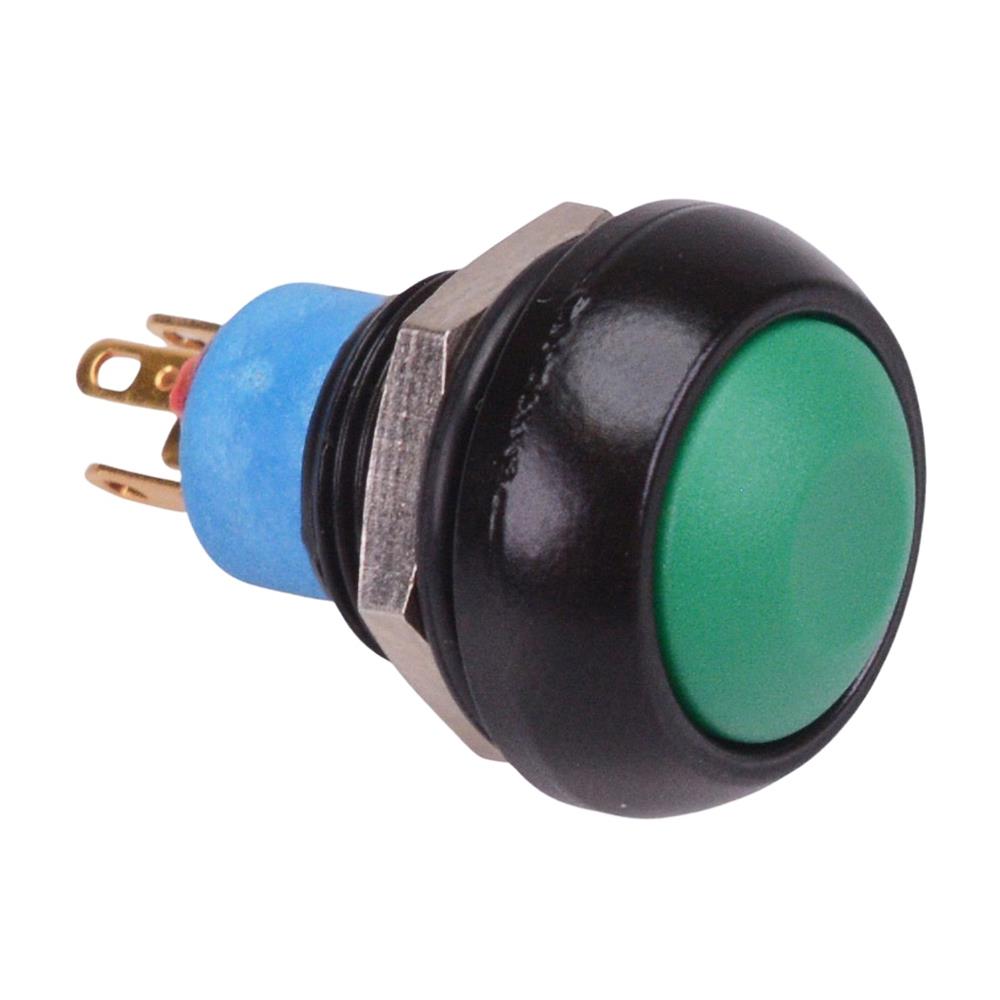

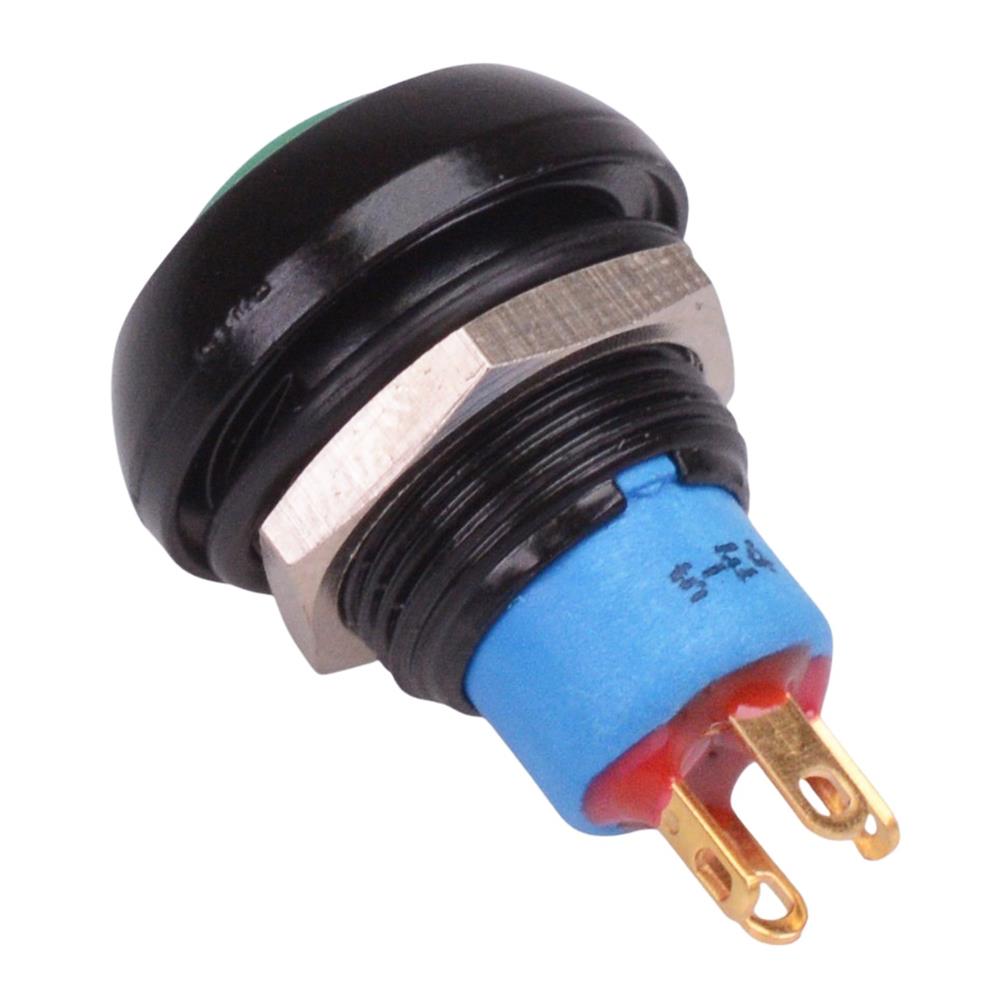

The IPR5SAD3 is a green momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPDT contacts, suitable for applications in harsh environments.

  • Momentary operation
  • SPDT contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Back of panel space requirement: 17.5mm minimum
  • Dimensions: 23.4 x 17.5mm (length x diameter)
