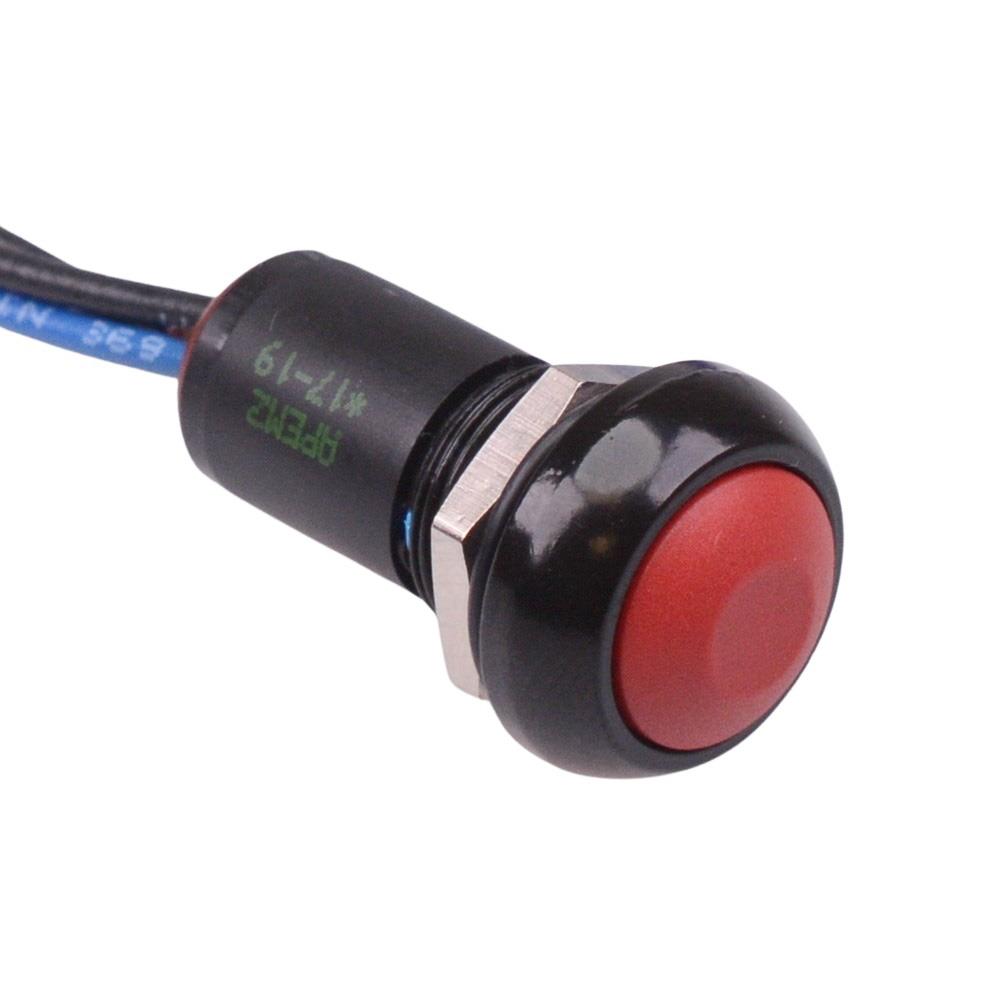

IPR5FAD6 APEM Red Momentary NO/NC Prewired Push Button Switch IP67

The IPR5FAD6 is a red momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features flying leads and NO/NC contacts, suitable for applications in harsh environments.

Momentary operation

NO/NC contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

500mm flying leads

Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Gold plated silver contacts

Panel thickness: 1.5-4mm

Dimensions: 27.0 x 17.5mm (length x diameter)
