IPR3FAD7/1L0G APEM Green LED Round Momentary NO Prewired Push Button Switch SPST IP67

IPR3FAD7/1L0G APEM Green LED Round Momentary NO Prewired Push Button Switch SPST IP67

£22.26
£19.63 £22.26
Sale Sold out

Order Code: 489995

Delivery calculated at checkout.
Available Online Only

150 in stock
View full details

Product Description

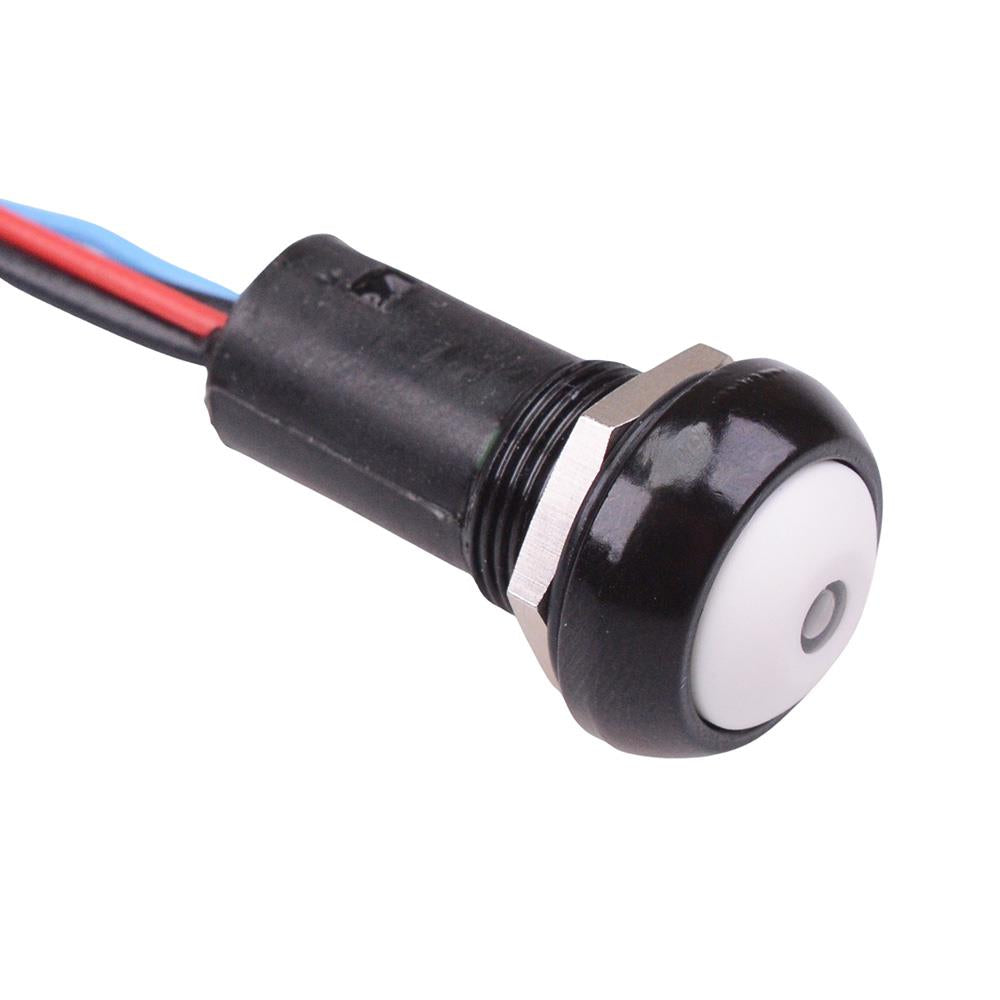

The IPR3FAD7/1L0G is an illuminated white button momentary round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for applications in harsh environments including automotive.

  • Momentary operation
  • White button
  • Green LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • SPST-NO contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • 500mm flying leads
  • Gold plated silver contacts
  • Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Dimensions: 29.8 x 17.5mm (height x diameter)
