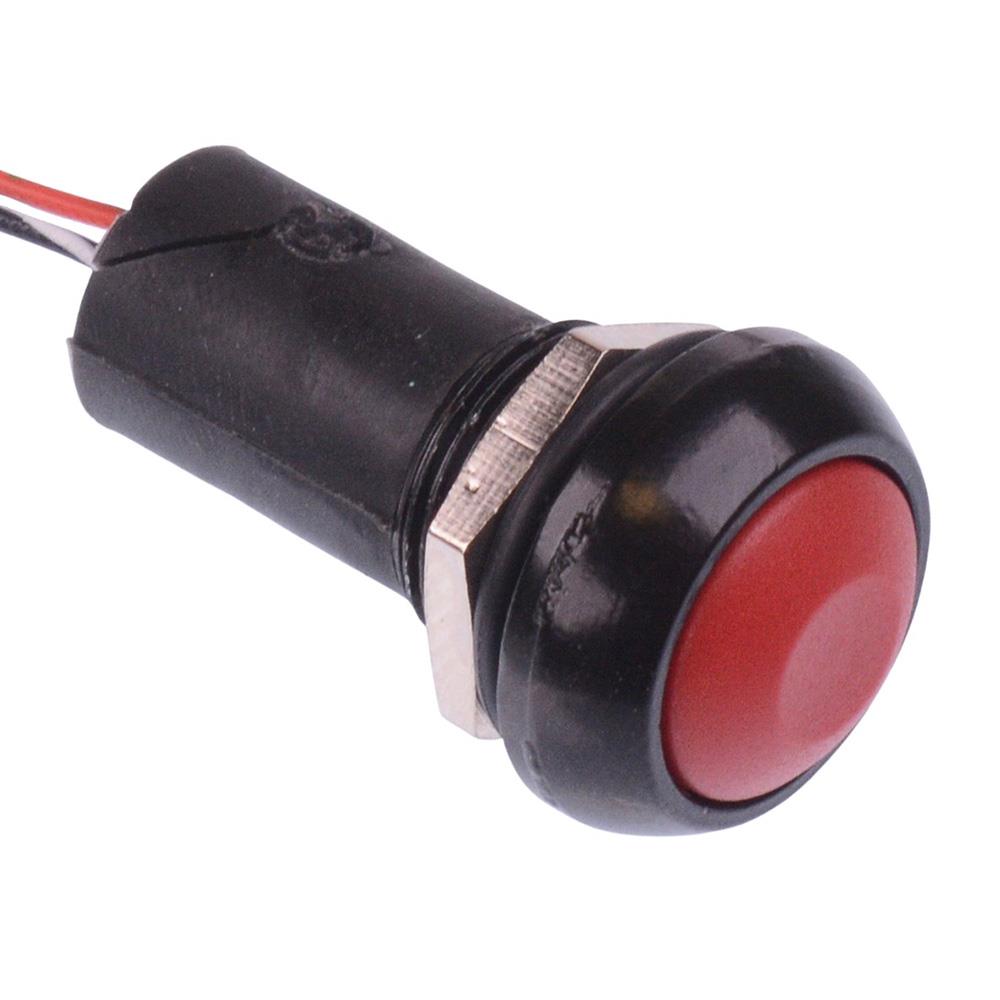

IPR3FAD6X1207-02 APEM Red Round Momentary NO 12mm Push Button Switch SPST IP67

IPR3FAD6X1207-02 APEM Red Round Momentary NO 12mm Push Button Switch SPST IP67

£18.49
£12.22 £18.49
Sale Sold out

Order Code: 487875

Delivery calculated at checkout.
Available Online Only

15 in stock
View full details

Product Description

The IPP3FAD2R0Y101X1223-19 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.

  • Heated seat illuminated symbol
  • Momentary NO operation
  • Yellow LED
  • LED forward voltage: 12V
  • LED forward current: 20mA
  • 150mm flying leads
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Dimensions: 29.8 x 17.5mm (height x diameter)
