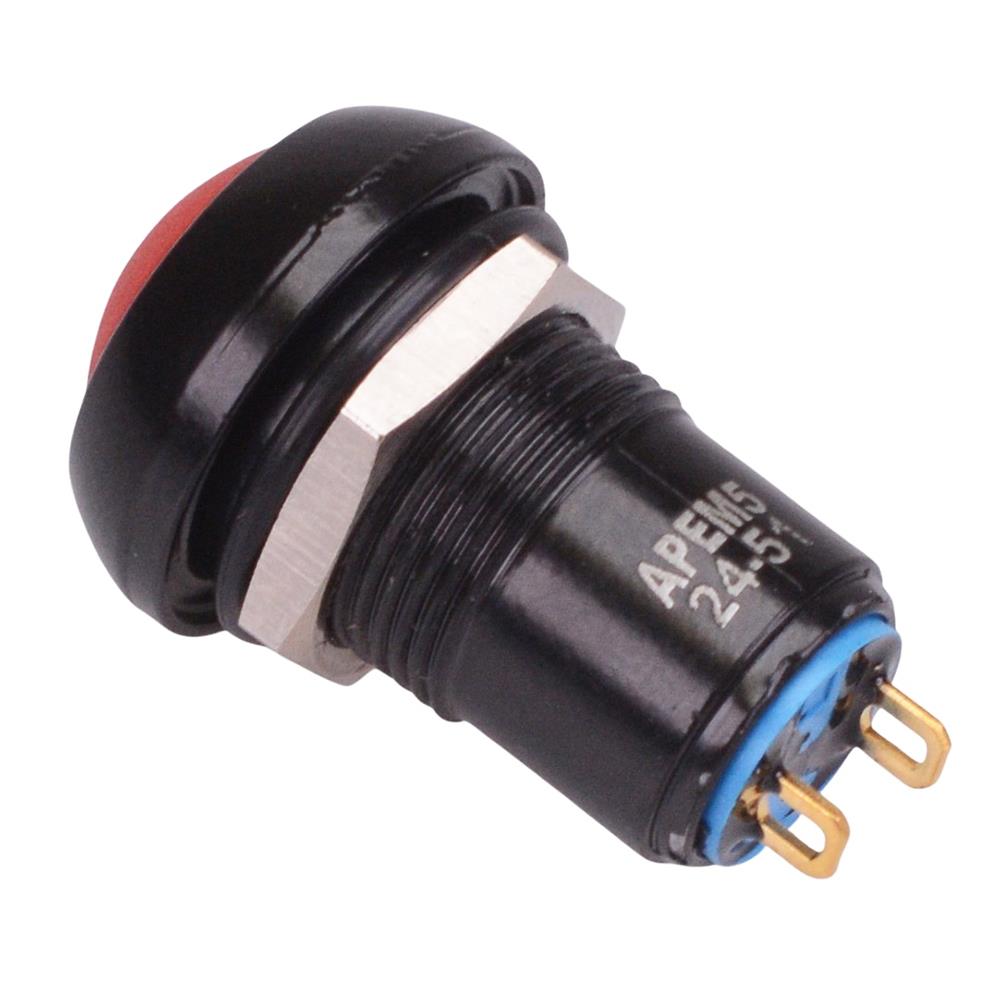

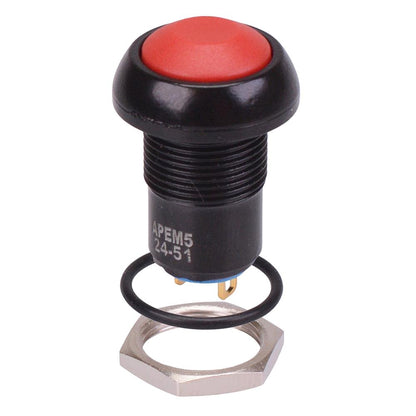

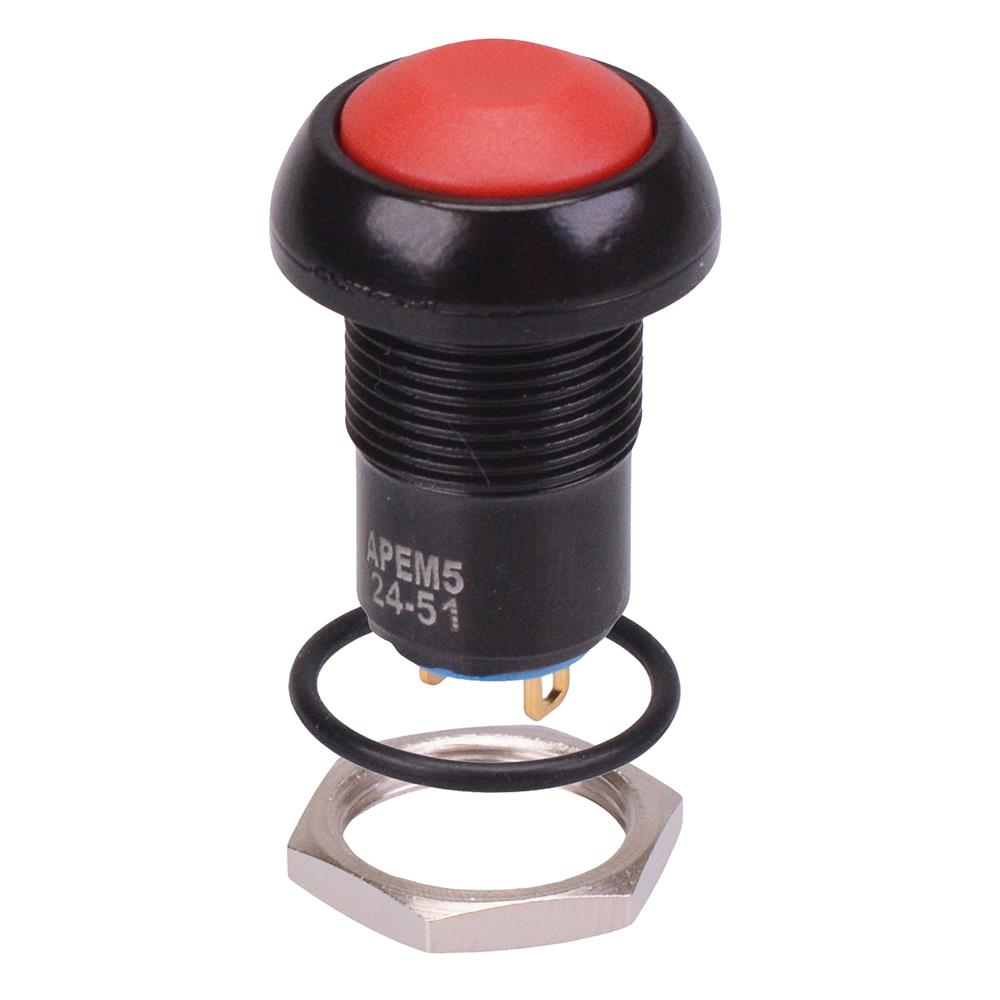

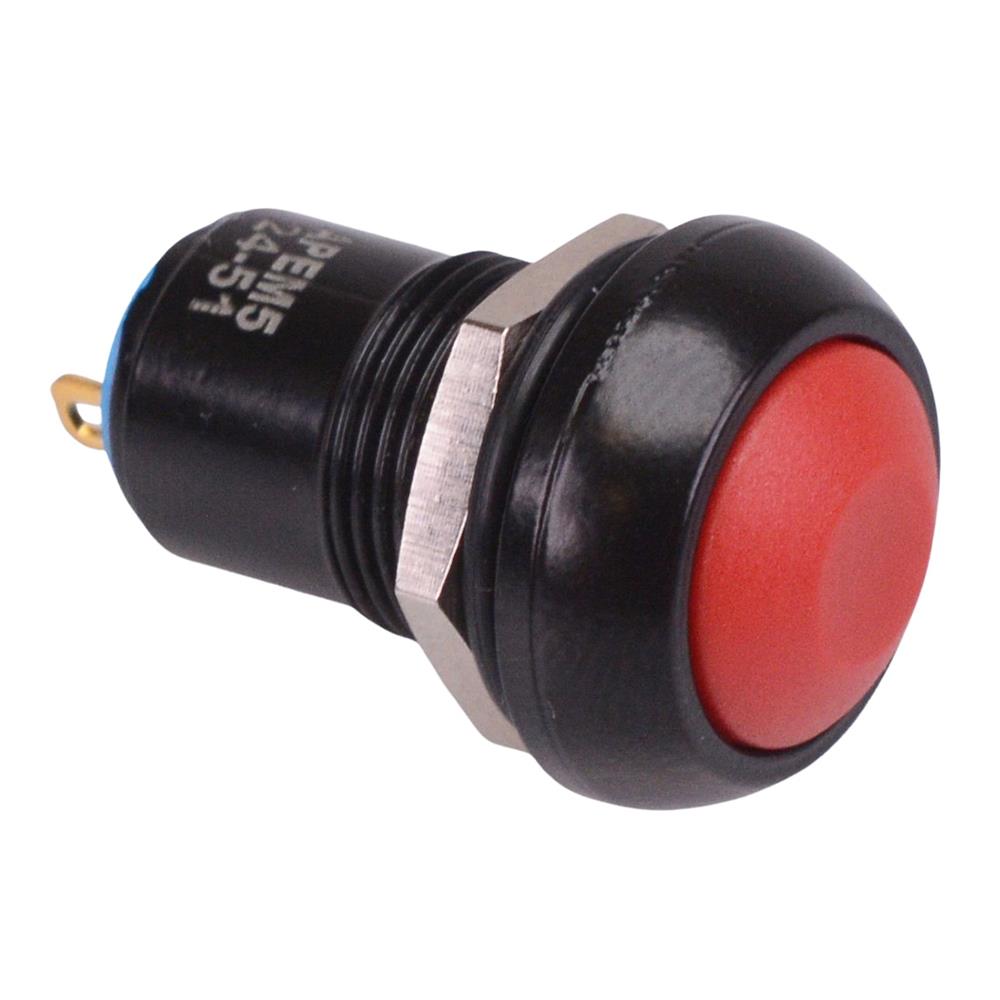

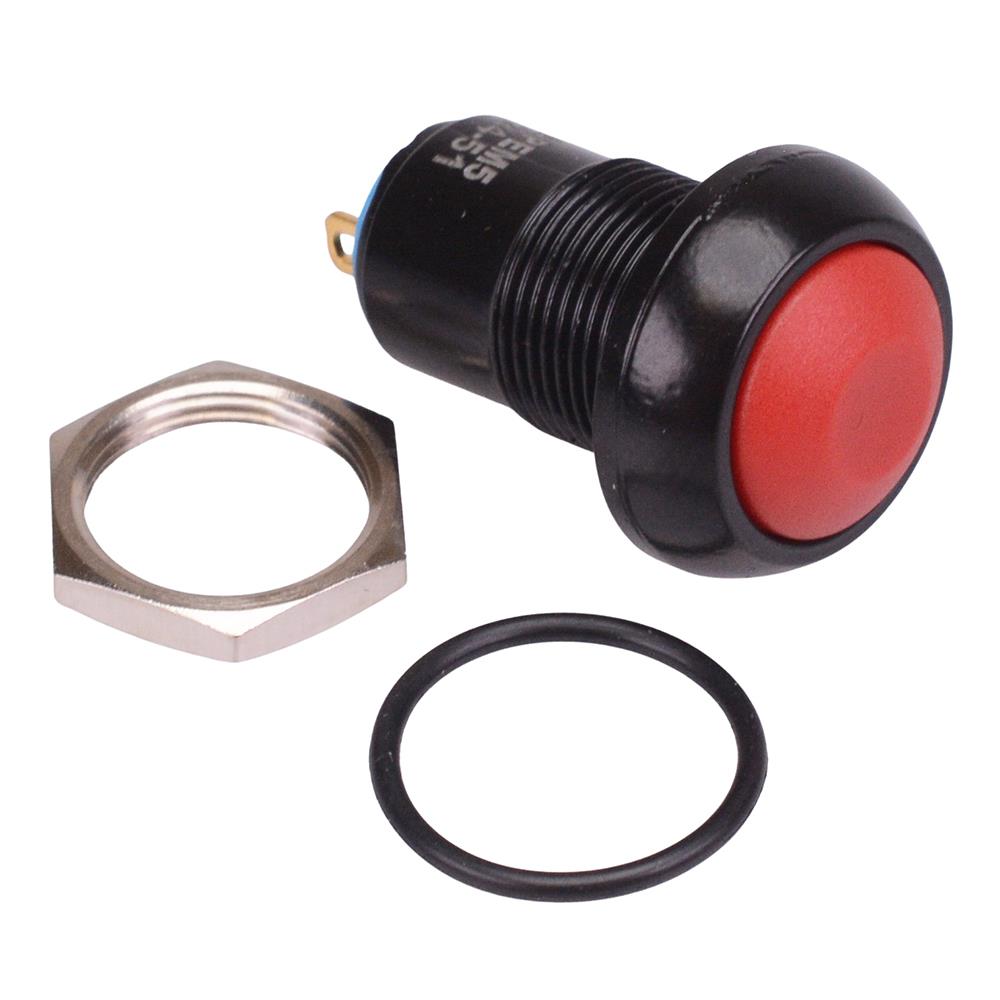

IPR1SAD6 APEM Red Latching 12mm Push Button Switch SPST IP67

The IPR1SAD6 is a red latching push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments.

Latching operation

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC

Panel thickness: 1.5-5.5mm

Back of panel space requirement: 19.1mm minimum

Dimensions: 27.6 x 17.5mm (length x diameter)
