IPR1SAD3101 APEM Green Chrome Round Latching 12mm Push Button Switch SPST IP67

IPR1SAD3101 APEM Green Chrome Round Latching 12mm Push Button Switch SPST IP67

£17.52
£15.45 £17.52
Sale Sold out

Order Code: 487291

Delivery calculated at checkout.
Available Online Only

215 in stock
View full details

Product Description

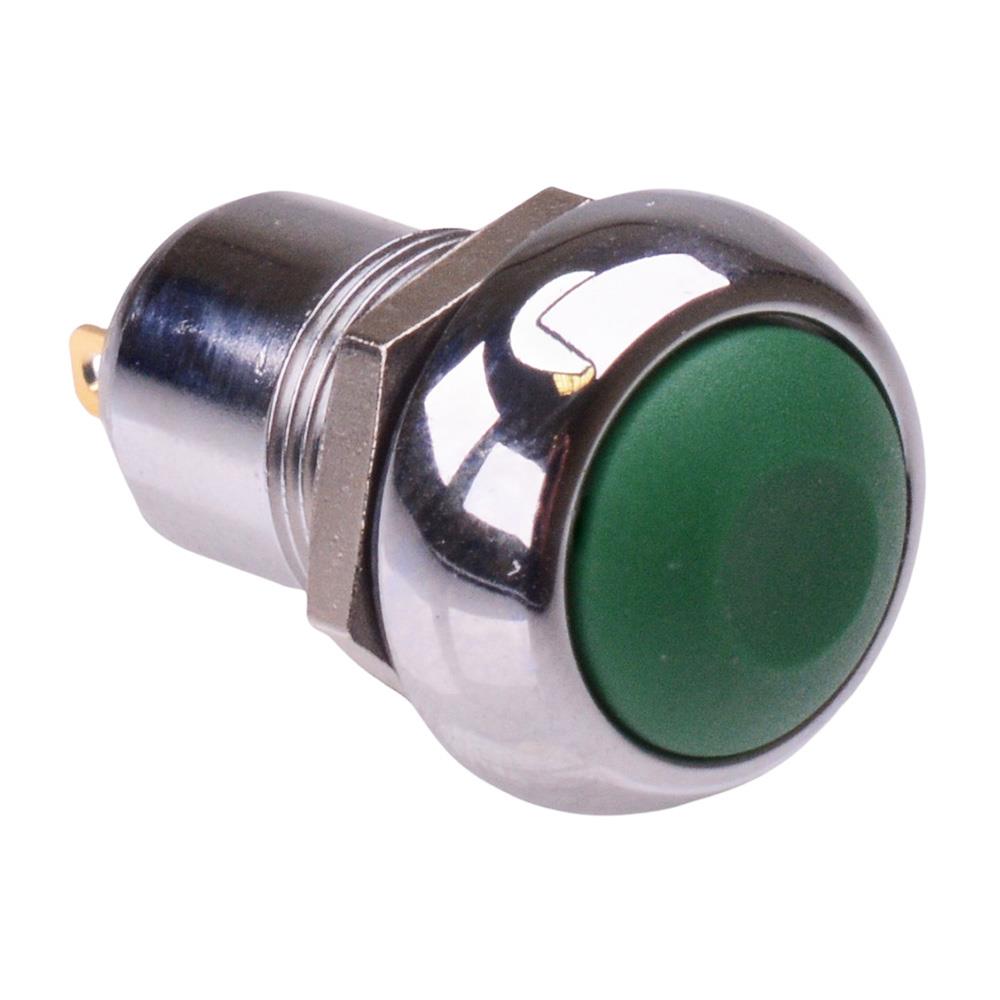

The IPR1SAD3101 is a green button chrome latching round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

  • Latching operation
  • Green button
  • Chrome bezel
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • PCB solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Dimensions: 27.6 x 17.5mm (height x diameter)
