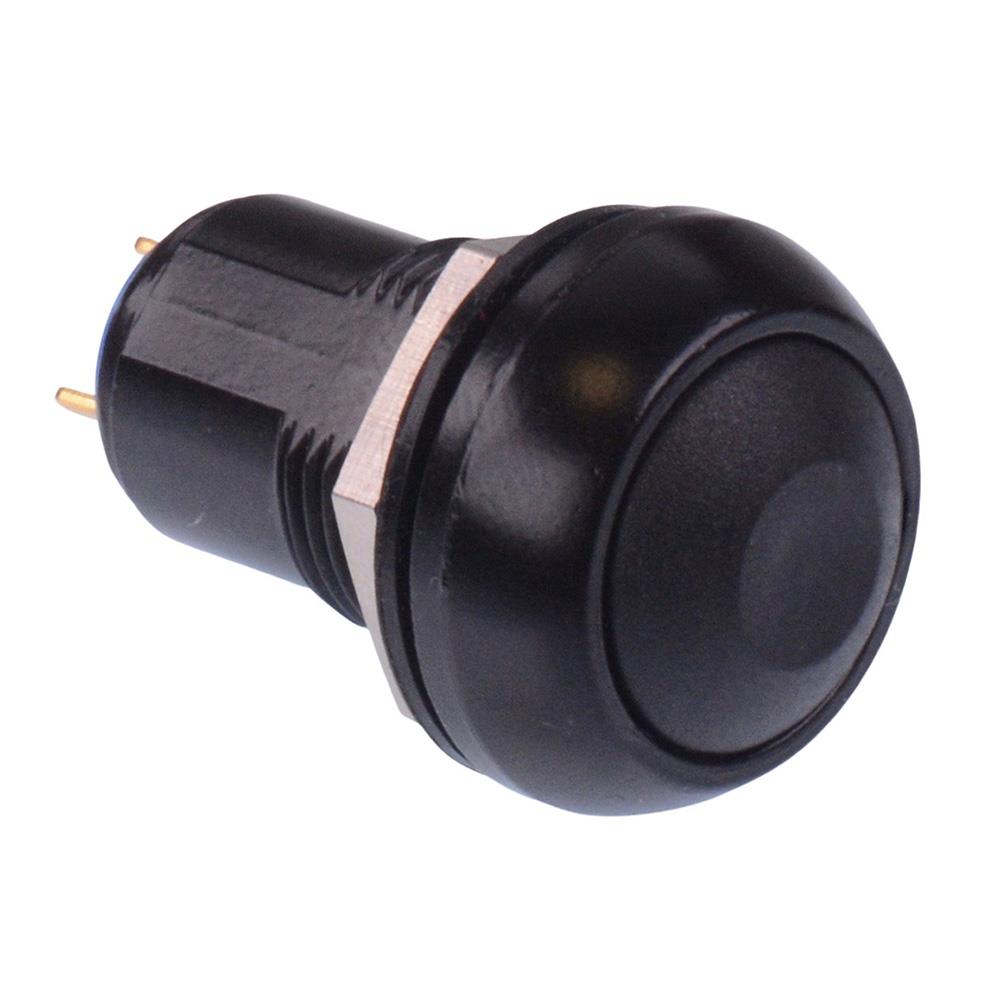

IPR1PAD2 APEM Black Round Latching 12mm Push Button Switch SPST IP67

The IPR1PAD2 is a black latching round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features PCB solder terminals and SPST contacts, suitable for applications in harsh environments including automotive.

Latching operation

Black button

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

PCB solder lug terminals

Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC

Panel thickness: 1.5-5.5mm

Dimensions: 27.6 x 17.5mm (height x diameter)
