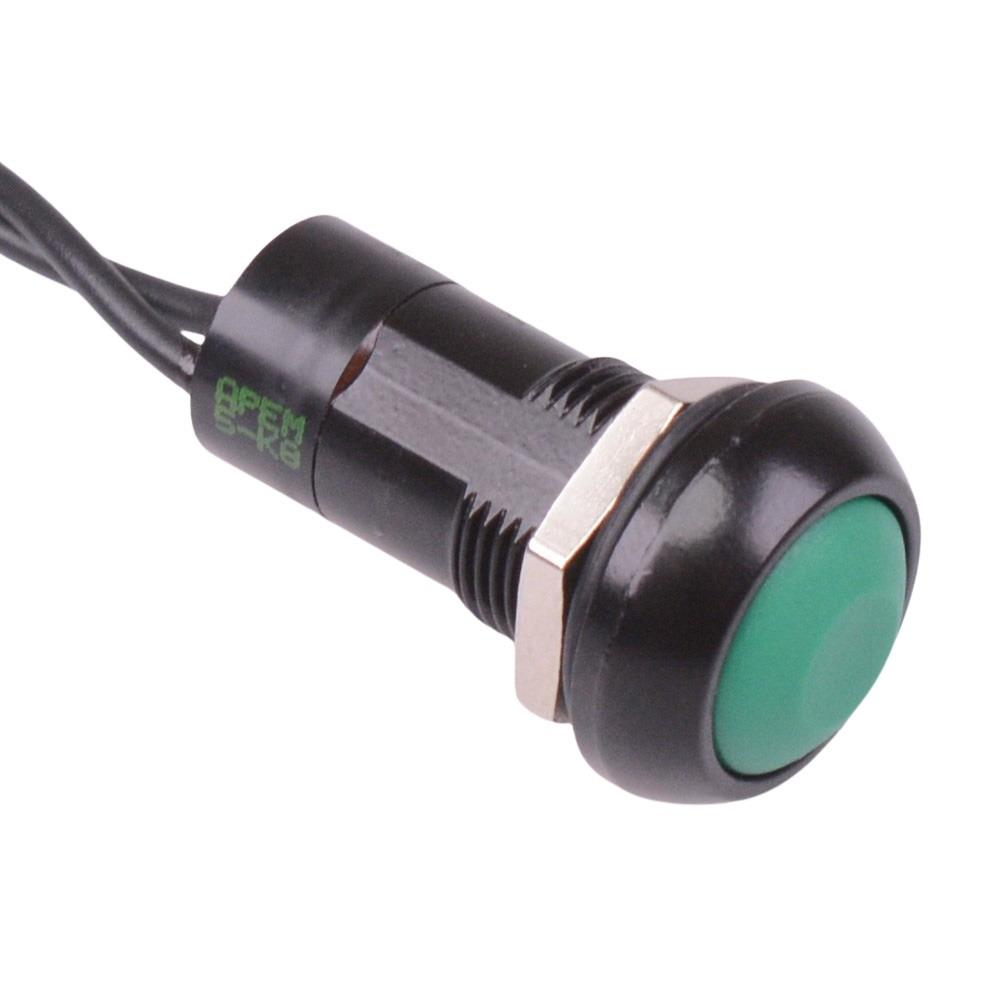

IPR1FAD3 APEM Green Round Latching Prewired Push Button Switch SPST IP67

The IPR1FAD3 is a green latching round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features flying leads and SPST contacts, suitable for applications in harsh environments including automotive.

Latching operation

Green button

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

500mm flying leads

Gold plated silver contacts

Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC

Panel thickness: 1.5-5.5mm

Dimensions: 27.3 x 17.5mm (height x diameter)
