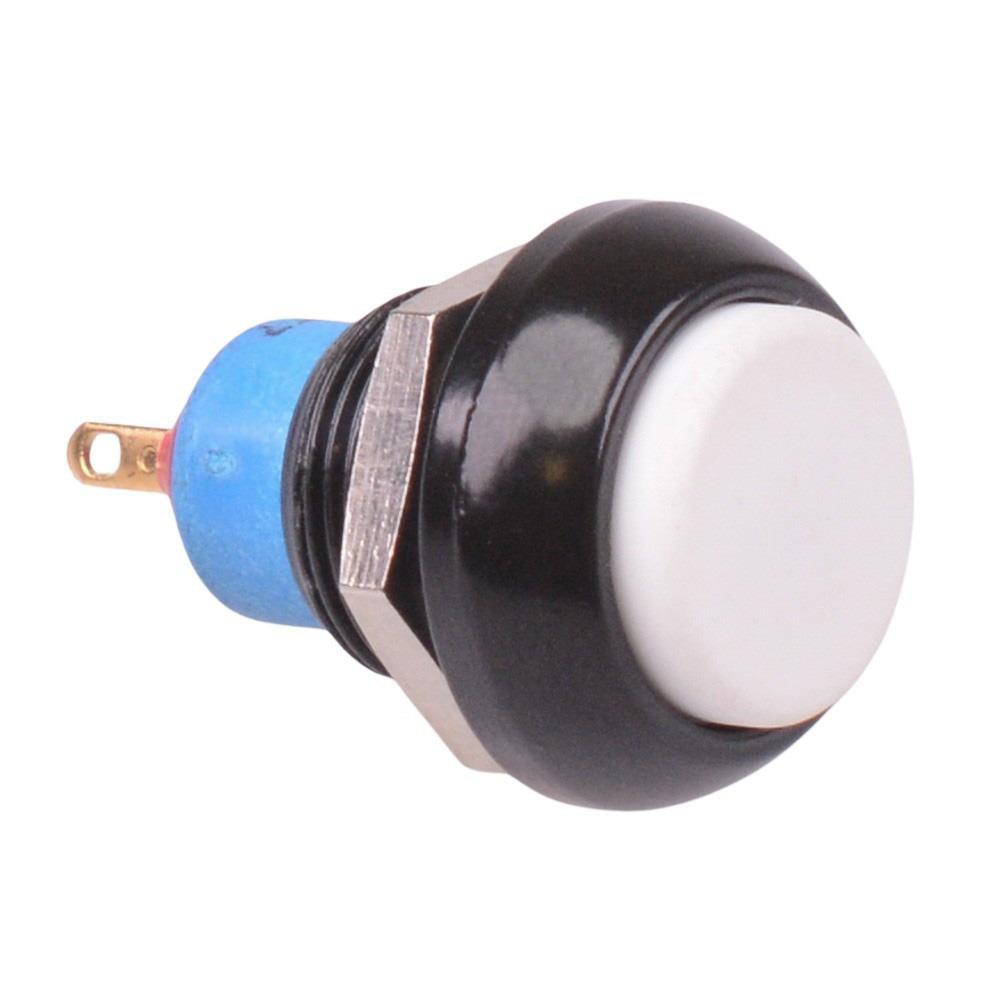

IPP3SAD7/1 APEM White Round Momentary NO 12mm Push Button Switch SPST IP67

IPP3SAD7/1 APEM White Round Momentary NO 12mm Push Button Switch SPST IP67

£18.81
£16.59 £18.81
Sale Sold out

Order Code: 489991

Delivery calculated at checkout.
Available Online Only

Out of stock
View full details

Product Description

The IPP3SAD7/1 is a white momentary square push button switch with a 12mm bushing. The switch features solder lug terminals and NO contacts, suitable for applications in harsh environments including automotive.

  • Momentary NO operation
  • Solder lug terminals
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Gold plated silver contacts
  • Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Dimensions: 25.4 x 17.5mm (height x diameter)
