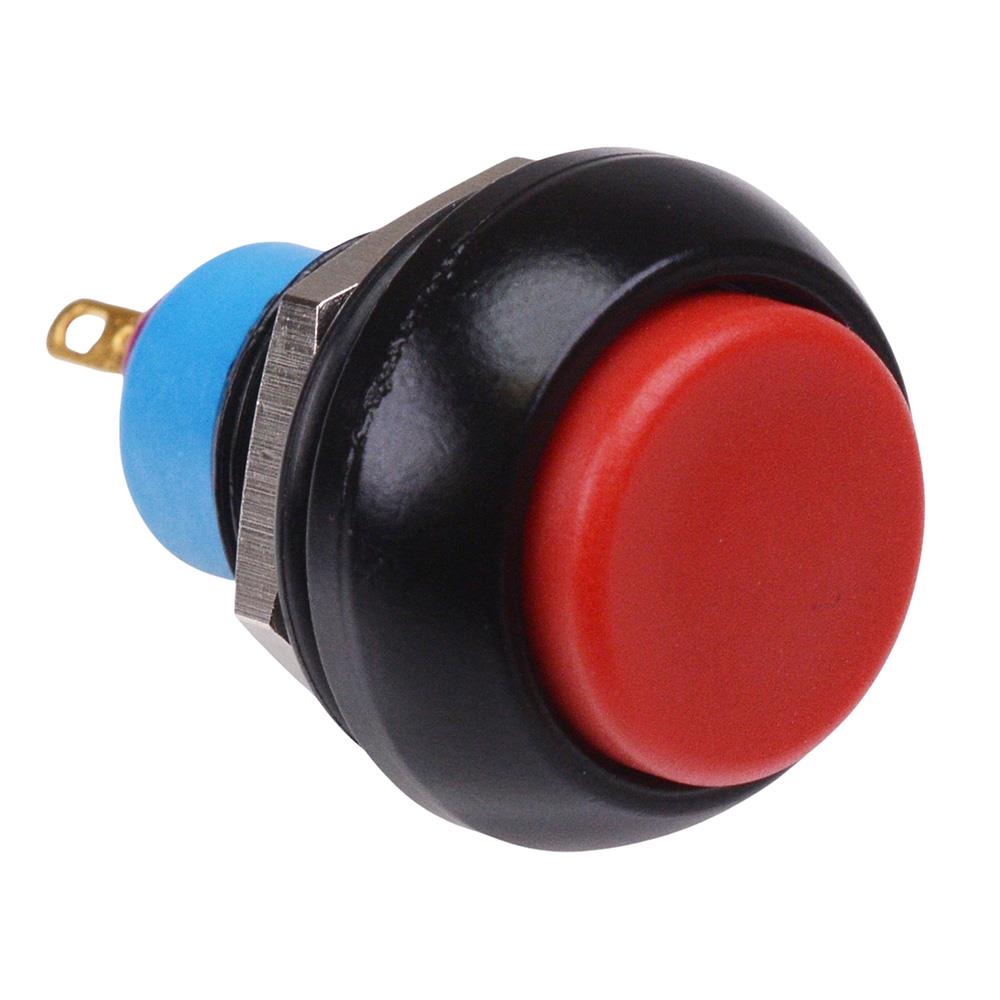

IPP3SAD6 Red Momentary 12mm Push Button Switch Flat Actuator SPST IP67 APEM

The IPP3SAD6 is a red momentary push button switch with a flat round actuator and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments.

Momentary operation

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Panel thickness: 1.5-4mm

Back of panel space requirement: 17.5mm minimum

Dimensions: 23.4 x 17.5mm (length x diameter)
