IPC3SAD6L0G APEM Green LED Red Square Momentary 12mm Push Button Switch SPST IP67

IPC3SAD6L0G APEM Green LED Red Square Momentary 12mm Push Button Switch SPST IP67

£18.77
£16.55 £18.77
Sale Sold out

Order Code: 487376

Delivery calculated at checkout.
Available Online Only

75 in stock
View full details

Product Description

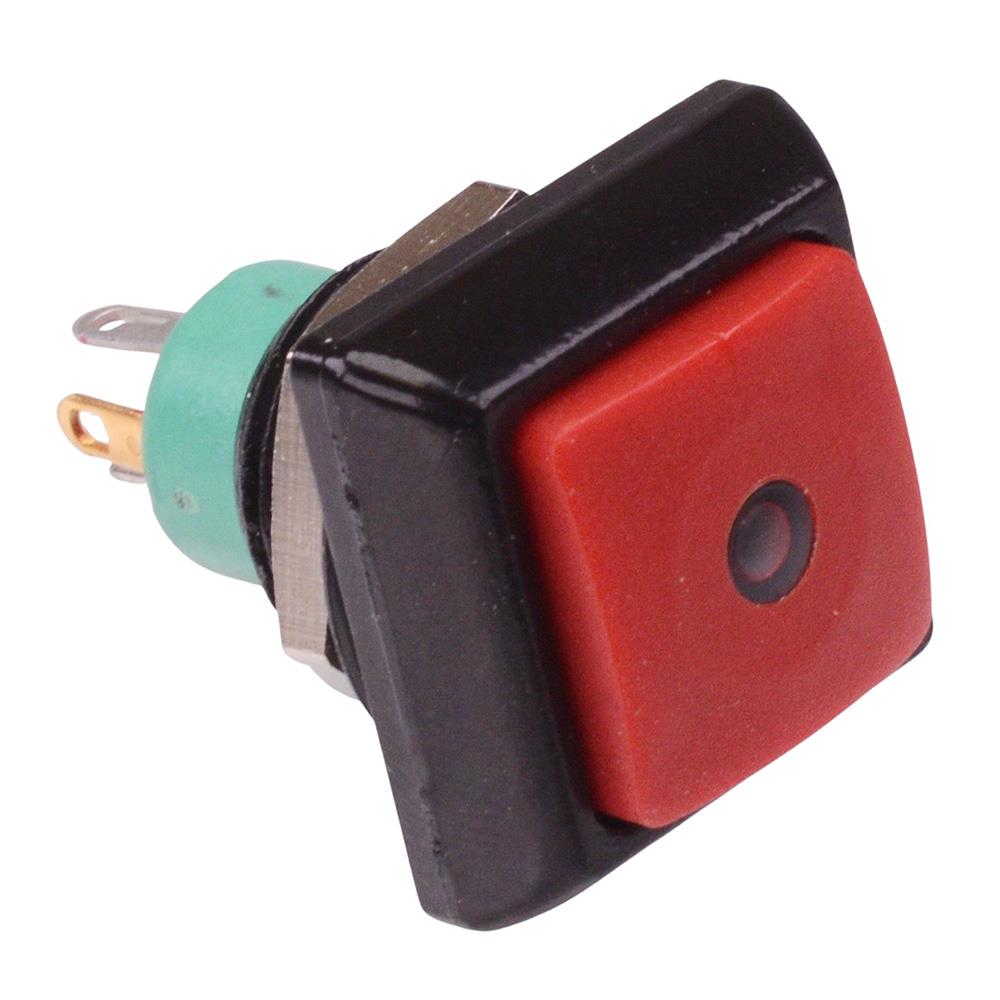

The IPC3SAD6L0G is a red momentary square push button switch with a 12mm bushing and green LED. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

  • Momentary NO operation
  • Green LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Solder lug terminals
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Dimensions: 26.3 x 17.5 x 17.5mm (height x width x length)
