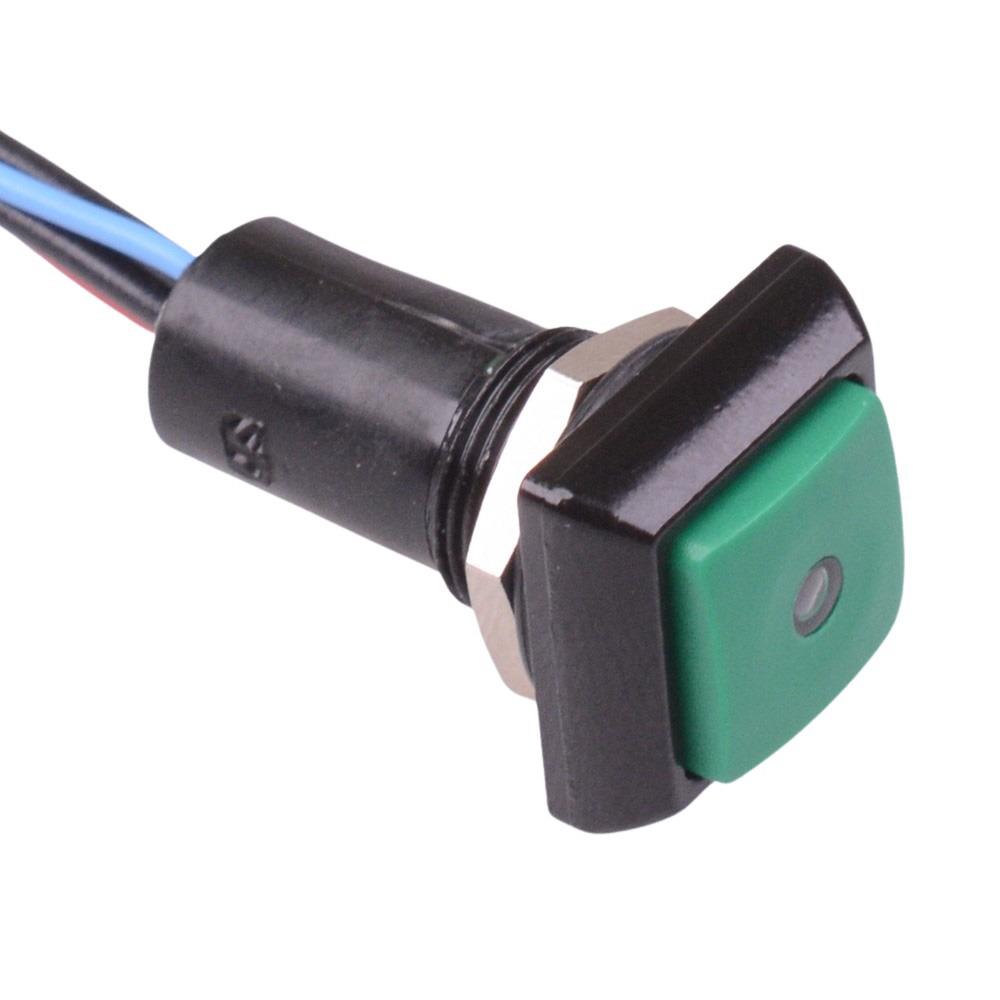

IPC3FAD3L0G APEM Green LED Square Momentary 12mm Push Button Switch Prewired SPST IP67

The IPC3FAD3L0G is a green momentary square push button switch with a 12mm bushing and green LED. The switch features flying leads and SPST normally open contacts, suitable for applications in harsh environments including automotive.

Momentary NO operation

Green LED

LED forward voltage: 2.1V

LED forward current: 20mA

500mm flying leads

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Panel thickness: 1.5-4mm

Dimensions: 29.8 x 17.5 x 17.5mm (height x width x length)
