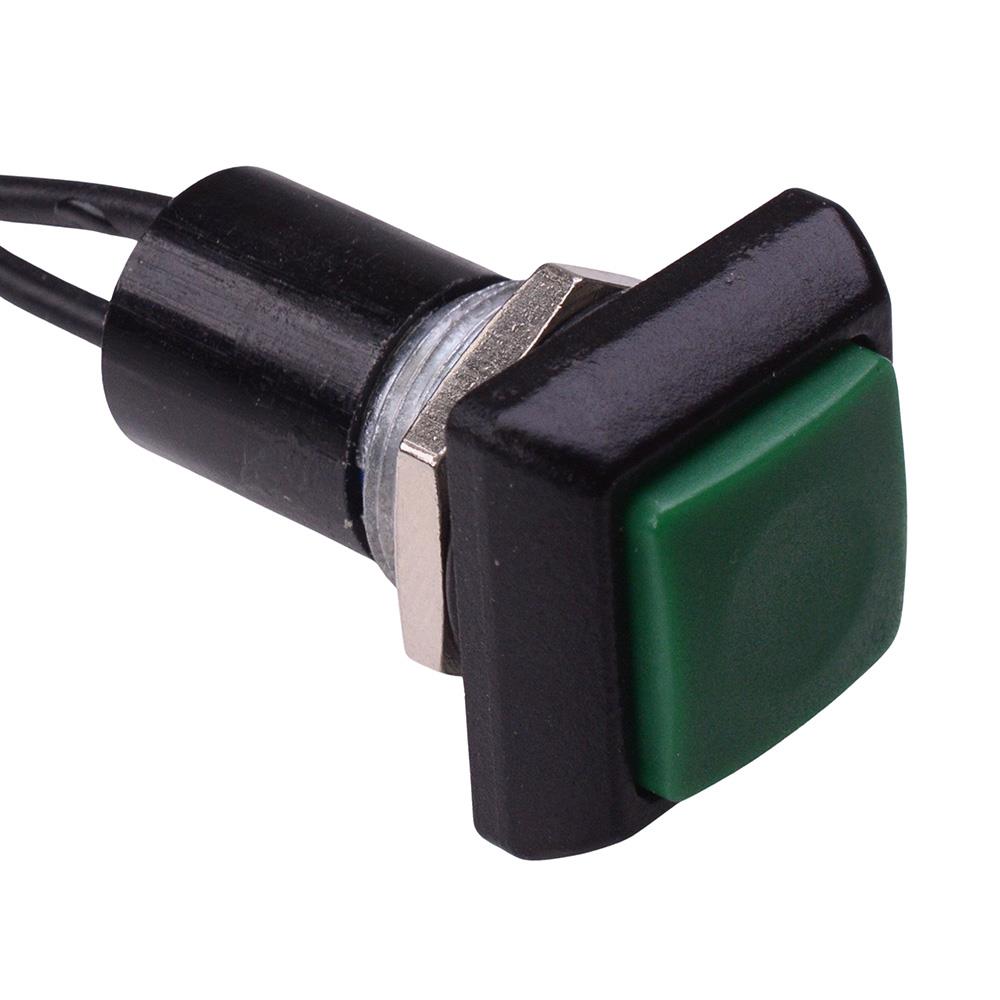

IPC3FAD3 APEM Green Square Momentary NO 12mm Push Button Switch Prewired SPST IP67

The IPC3FAD3 is a green momentary square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features flying leads and SPST contacts, suitable for applications in harsh environments including automotive.

• Momentary NO operation
• Prewired with 500mm flying leads
• SPST contacts
• 12mm bushing
• Sealed to IP67
• Panel cut-out: 13.6mm
• Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
• Panel thickness: 1.5-4mm
• Dimensions: 29.8 x 17.5 x 17.5mm (height x width x length)
