IPC1SAD3 APEM Green Square Latching 12mm Push Button Switch SPST IP67

IPC1SAD3 APEM Green Square Latching 12mm Push Button Switch SPST IP67

£15.03
£14.47 £15.03
Sale Sold out

Order Code: 487507

Delivery calculated at checkout.
Available Online Only

43 in stock
View full details

Product Description

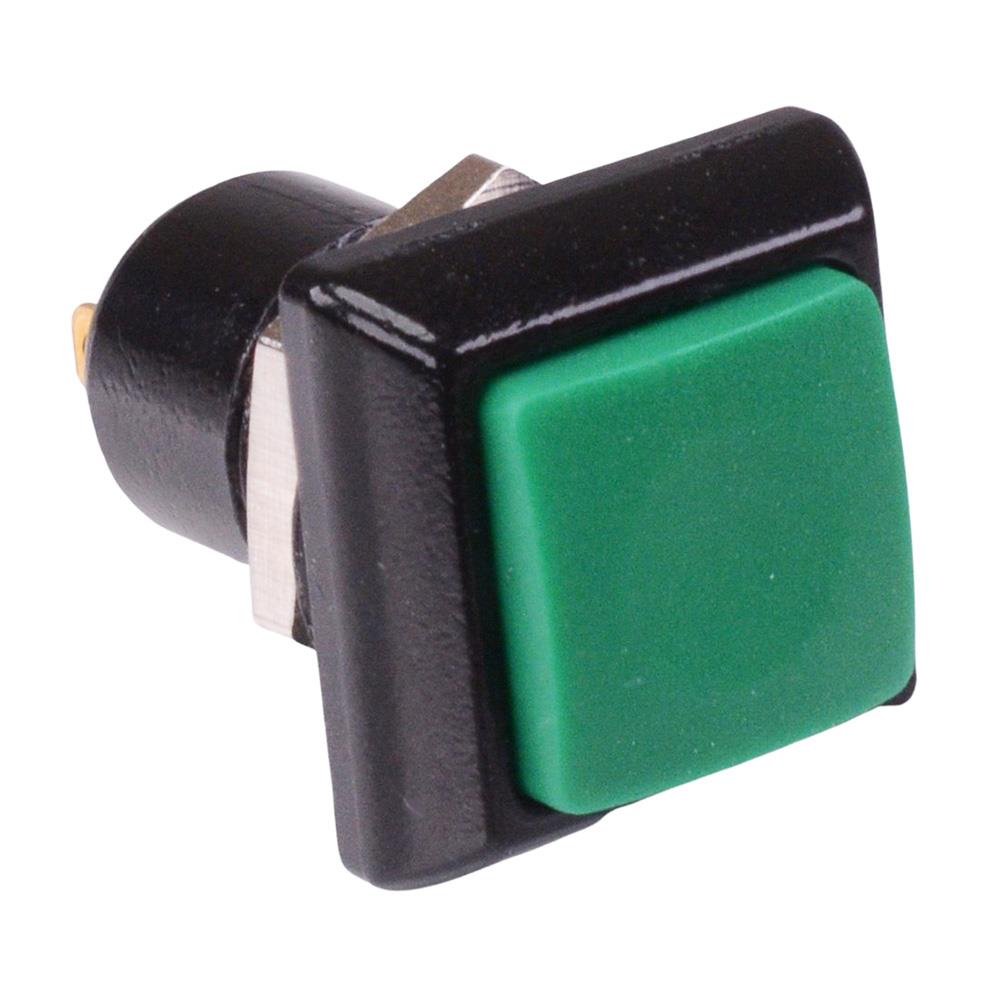

The IPC1SAD3 is a green latching square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

  • Latching operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Dimensions: 27.6 x 17.5 x 17.5mm (height x width x length)
