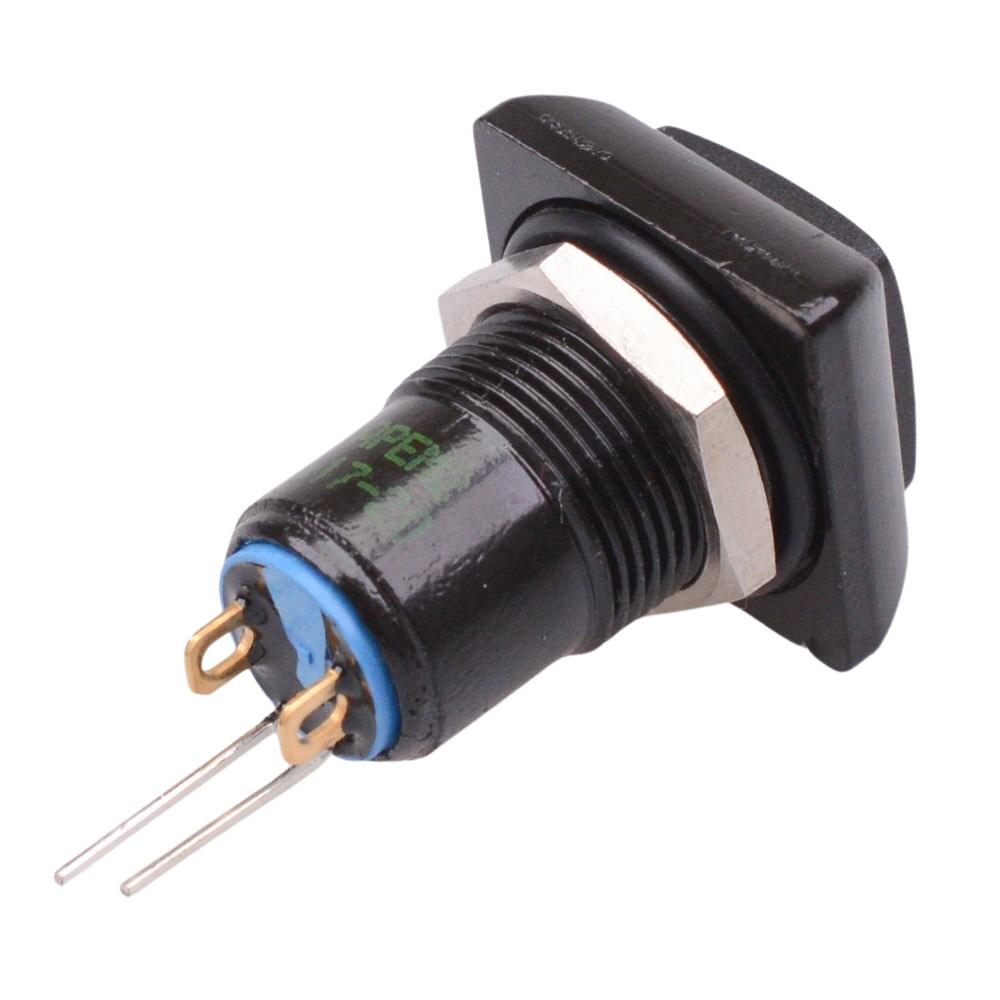

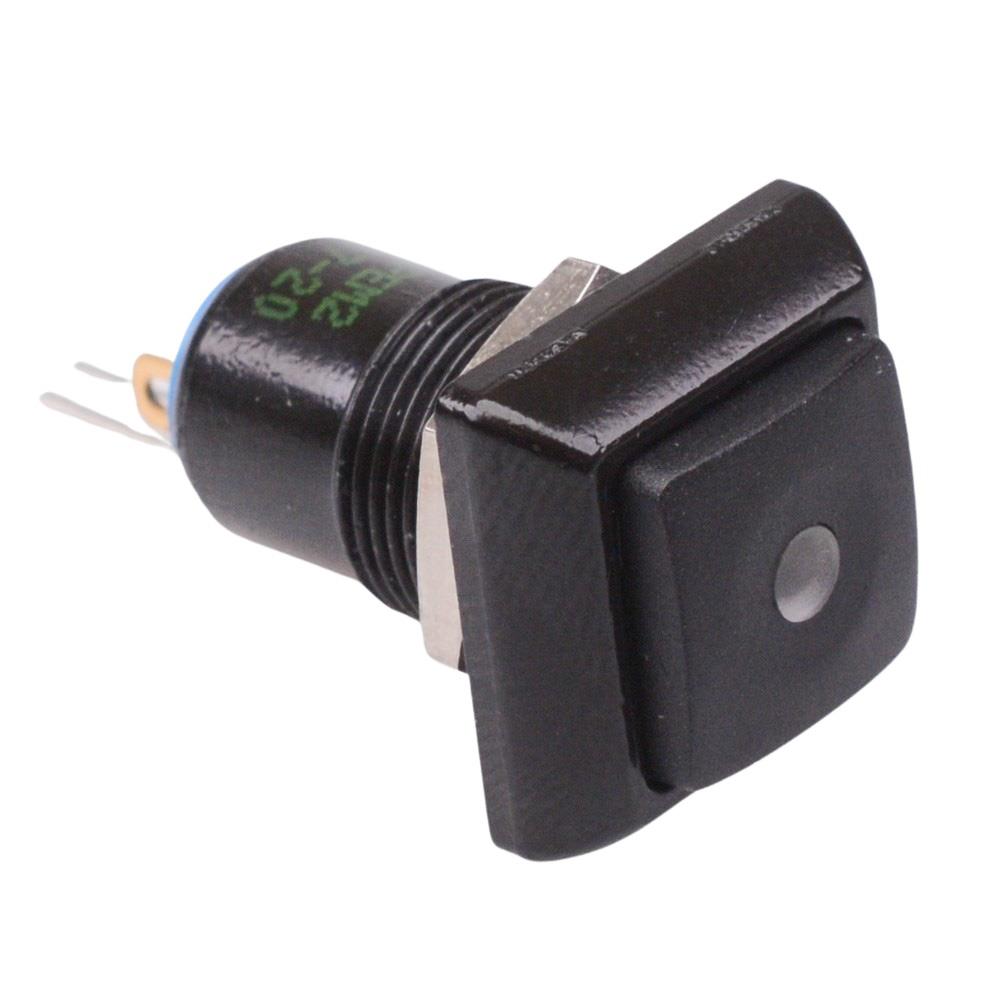

IPC1SAD2L0Y APEM Yellow LED Black Square Latching 12mm Push Button Switch SPST IP67

IPC1SAD2L0Y APEM Yellow LED Black Square Latching 12mm Push Button Switch SPST IP67

£18.77
£16.55 £18.77
Sale Sold out

Order Code: 489980

Delivery calculated at checkout.
Available Online Only

32 in stock
View full details

Product Description

The IPC1SAD2L0Y is an illuminated black latching square push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.

  • Black button
  • Latching operation
  • Yellow LED
  • LED forward voltage: 2V
  • LED forward current: 20mA
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Gold plated silver contacts
    • \
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Dimensions: 27.6 x 17.5 x 17.5mm (height x width x length)
