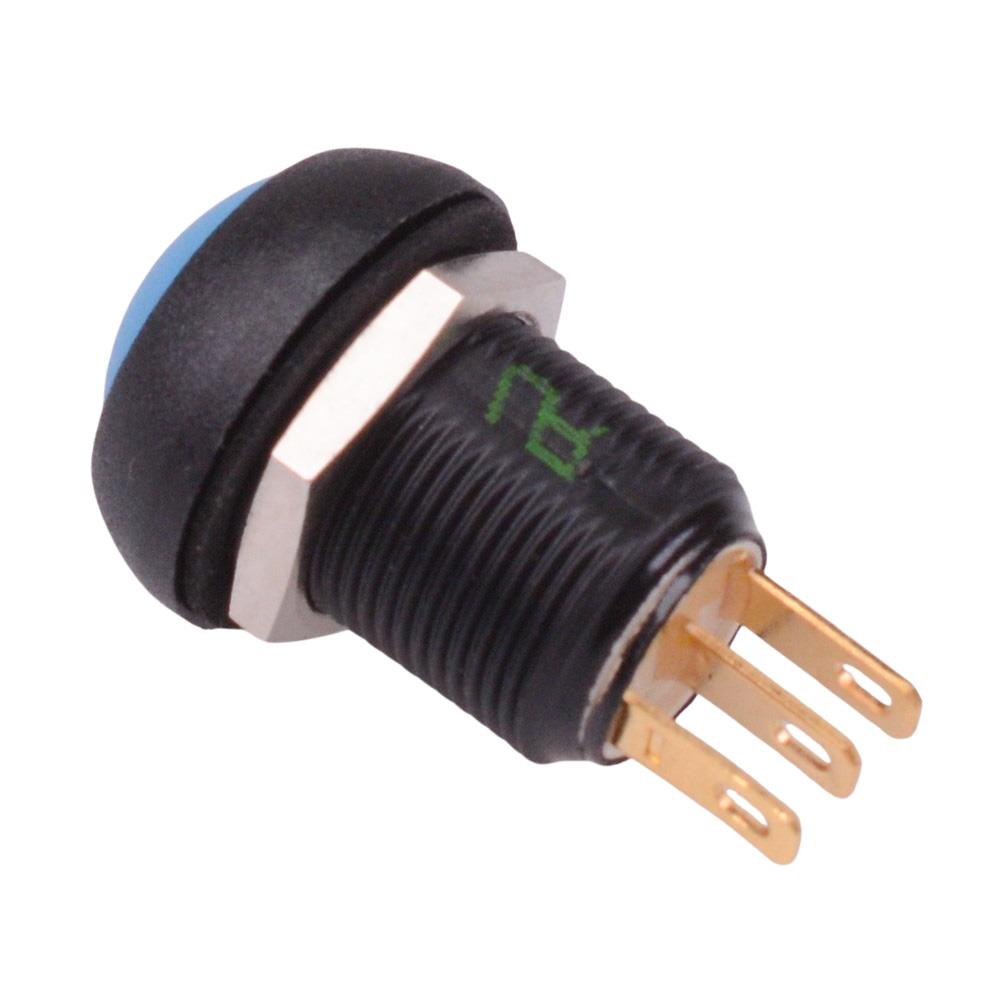

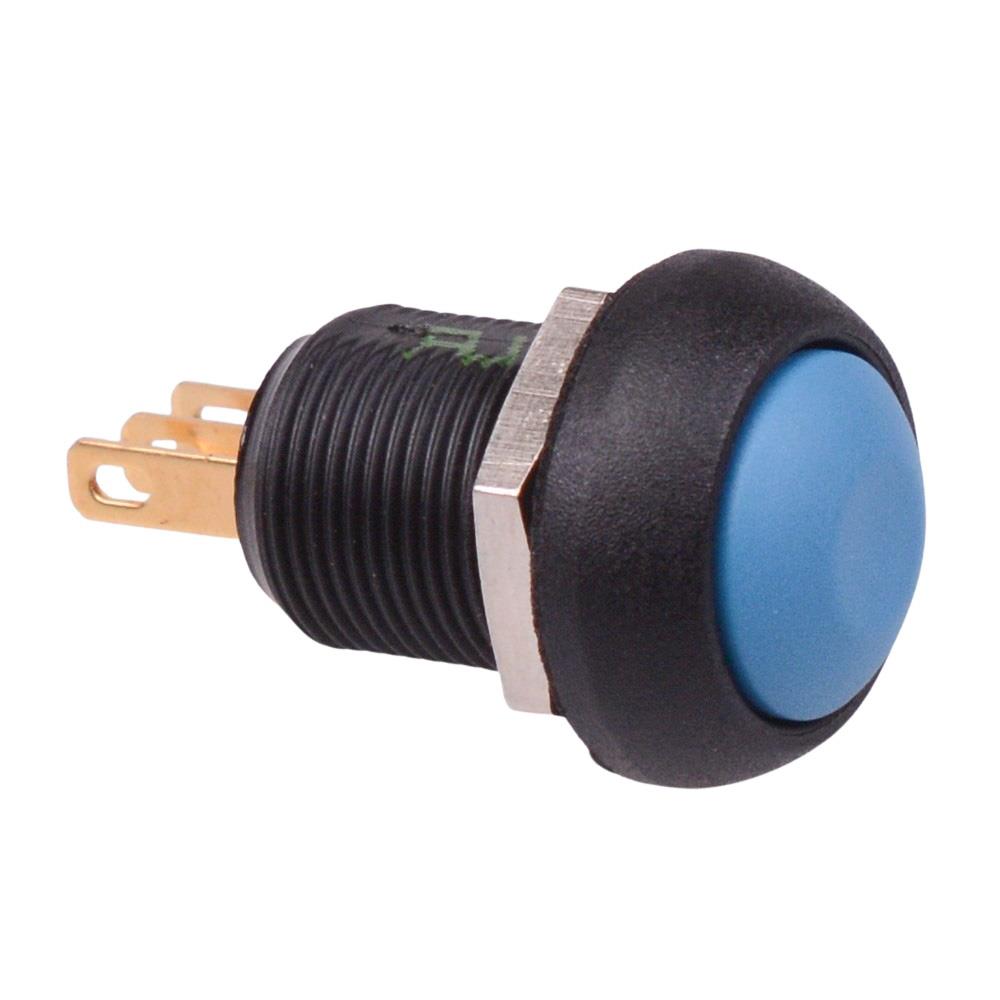

IMR7Z412UL APEM Blue Momentary 12mm Push Button Switch SPDT IP67

The IMR7Z412UL is a blue momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features quick connect terminals and SPDT contacts, suitable for a wide range of applications.

Momentary operation

Snap action: tactile feedback with audible click

SPDT NO/NC contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Quick connect terminals

Rating: 3A 28VDC

Panel thickness: 0.8-4.3mm

Back of panel space requirement: 20mm minimum

Dimensions: 29.0 x 17.5mm (length x diameter)
