IHSR36F2100 APEM Black Hall Effect Momentary NO Push Button Switch IP67

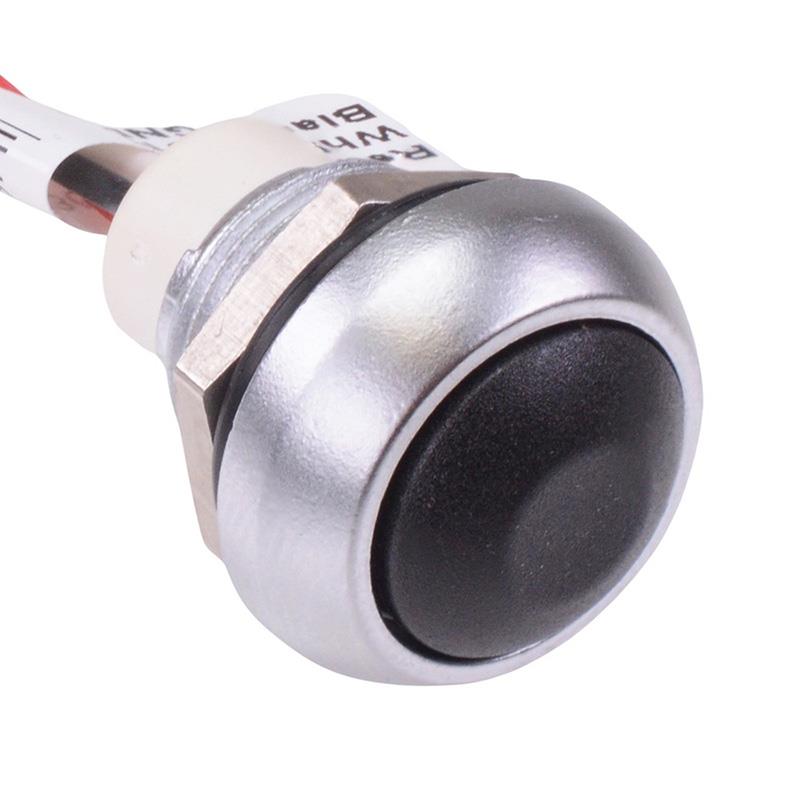

The IHSR36F2100 is a black hall effect momentary push button with satin chrome bezel, manufactured by APEM. The switch features an extremely long lifespan and is sealed to IP67. This makes it ideal for applications where positioning the load is critical, including material handling, loaders, lifts, trucks, buckets and shovels and other applications requiring continuous operations.

Supply voltage: 3.5-24VDC

Supply current: VDC = 12V: 2.5mA Typ. to 5mA max.

Max output current: 50mA

Max output voltage: 24VDC

Output type: NPN

IP67 sealing

Panel cut-out: 13.6mm

Panel thickness: 1.5-4mm

Operating force: 6N typical

150mm 26AWG flying leads

Mechnical life: 5,000,000 cycles
