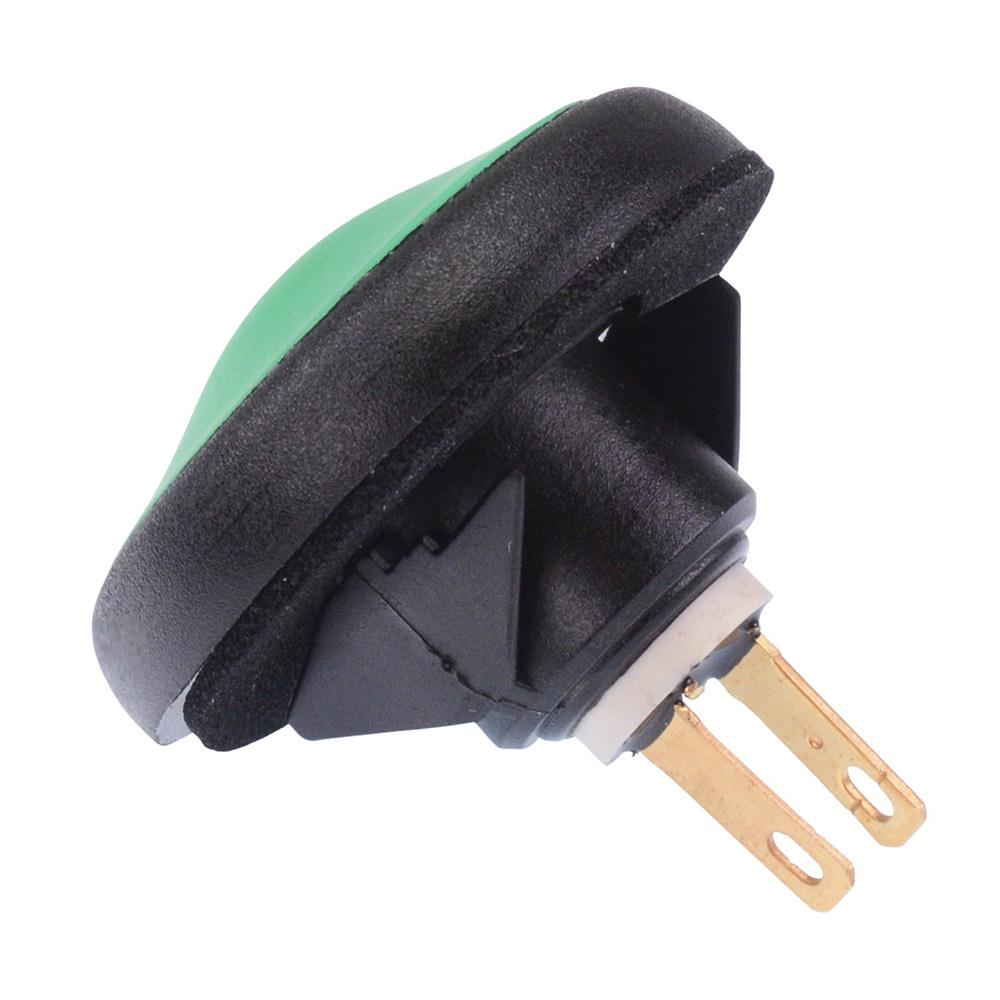

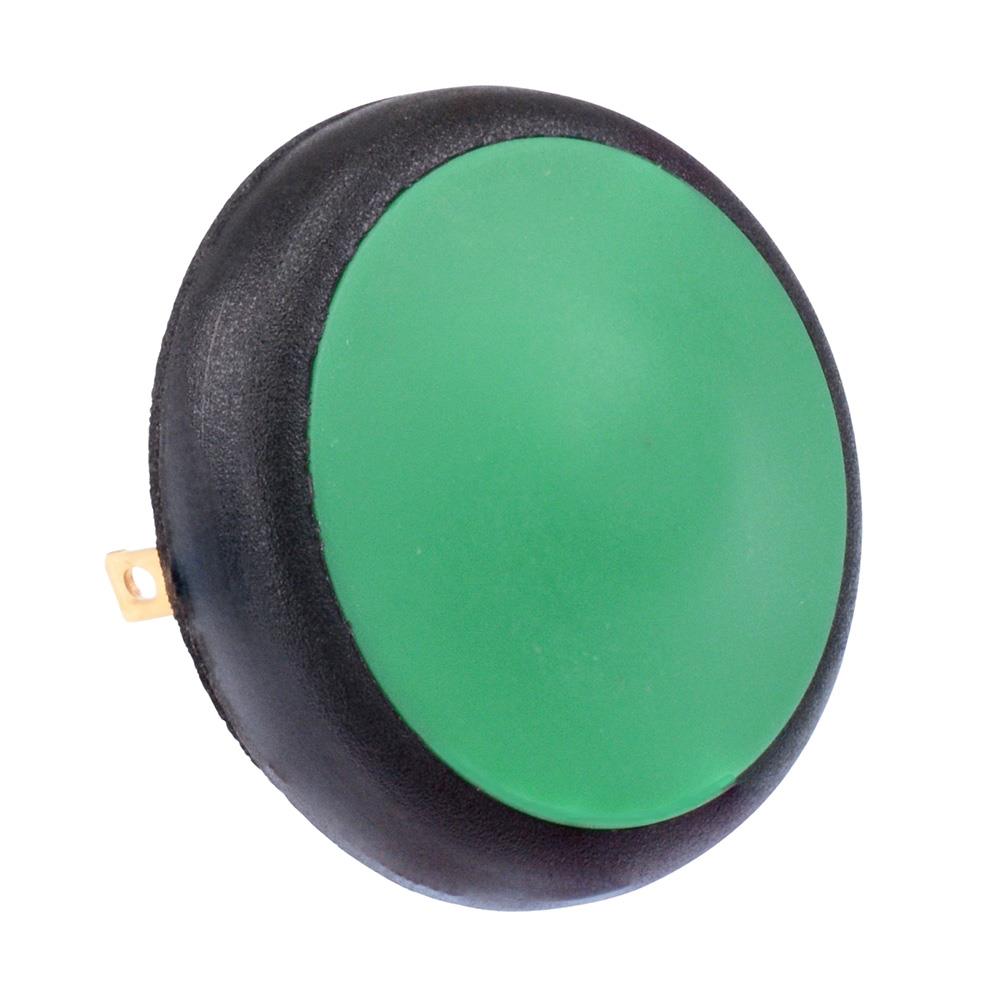

IFB3Z1AD300 APEM Green Momentary Snap-In Membrane Push Button Switch SPST IP67

The IFB3Z1AD300 is a green sealed push button switch with a 25mm actuator and polyamide actuator which depresses when the switch is actuated. The membrane is press fittd onto the bushing which prevents the ingress of liquid or dust. The switch is suited for equipment exposted to bad weather and most notably frost.

Green 25mm diameter actuator

Momentary operation

SPST contacts

Snap-in mounting

Sealed to IP54

Panel cut-out: 16mm

2.8m quick connect/solder terminals

Rating: 400mA 32VAC, 100mA 48VDC

Panel thickness: 0.8-2.5mm

Dimensions: 21 x 17.5mm (length x diameter)
