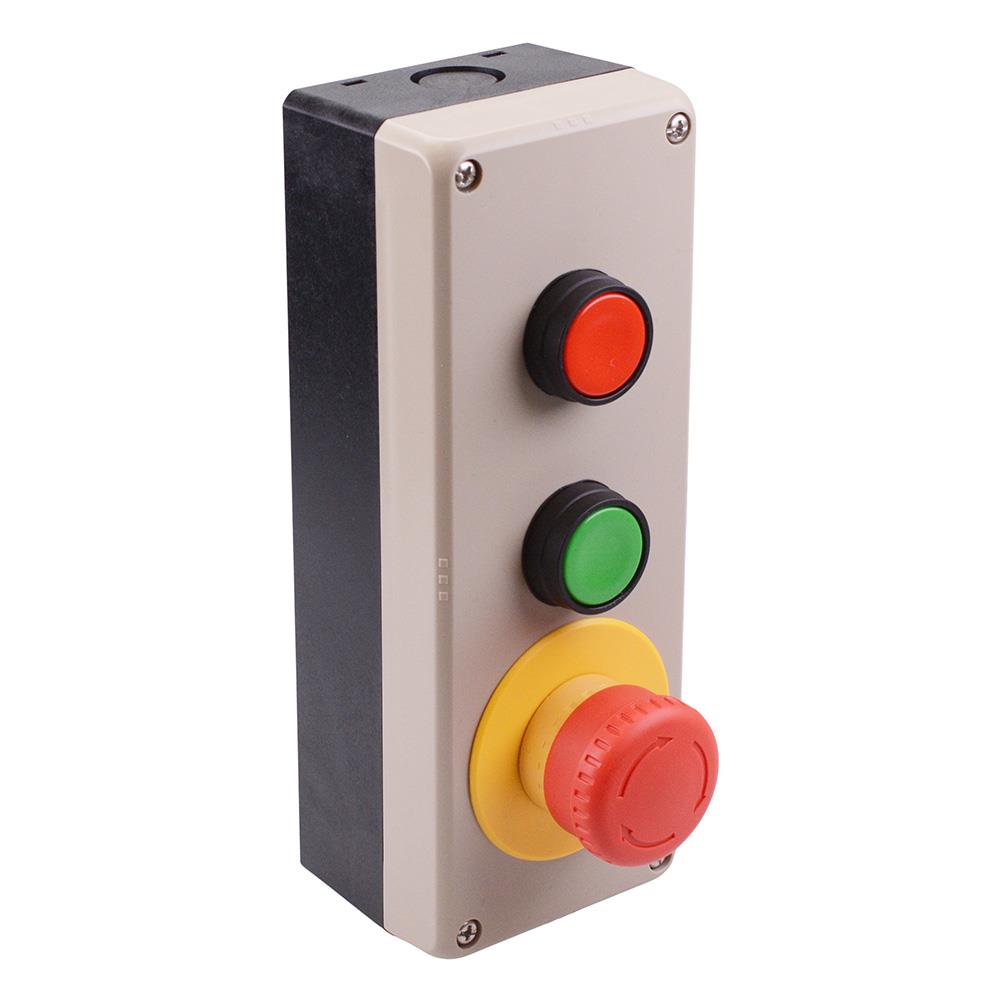

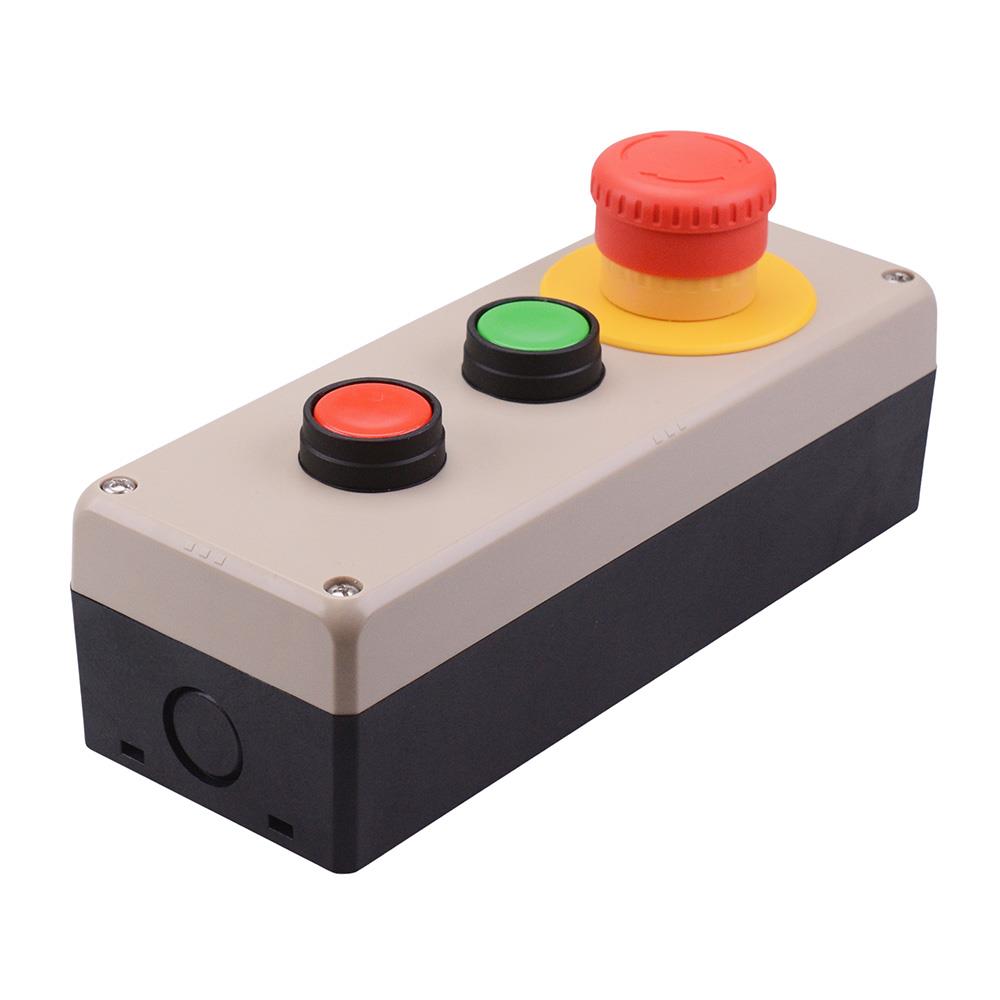

IDEC Red and Green 22mm Momentary Push Button Switches E-Stop Control Station 2NO-1NC IP65

Beige plastic control box fitted with both red and green momentary push button switches with a 2NC E-stop manufactured by IDEC, featuring a heavy-duty rugged construction. The enclosure features 3*22mm cut-outs and lightweight polycarbonate construction.

Switch: 2NO-1NC contacts

E-stop: 2NC

40mm Mushroom E-stop Head

Yellow E-stop face plate

Switch Voltage rating: 600V

Switch Current rating: 10A

Emergency Stop Contact rating: 10A 120V, 6A 240V, 2A 380V

22mm panel cut-outs

23.6mm button diameters

IP65 protection rating

Self cleaning contacts

Interchangeable switch components

2*21.3mm cable knockouts

Enclosure Dimensions: 200 x 76 x 59.5mm (length x width x height)
