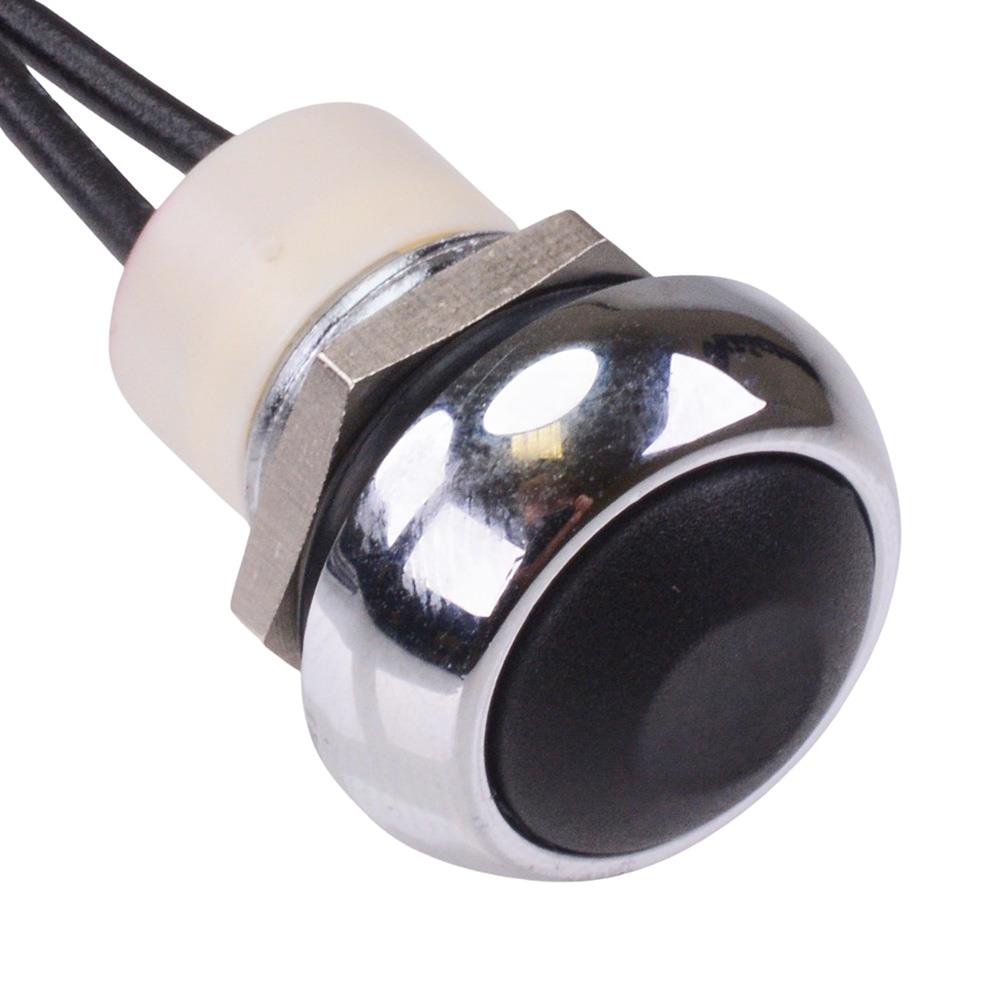

ICR3FAD2101 APEM Chrome Momentary 12mm Push Button Switch Prewired SPST IP67

The ICR3FAD2101 is a chrome bezel momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features 500mm flying leads and SPST contacts, suitable for a wide range of applications.

Momentary operation

SPST contacts

12mm chrome bushing

Sealed to IP67

Panel cut-out: 13.6mm

500mm flying leads

Rating: 5A 28VDC

Panel thickness: 1.5-4mm

Dimensions: 21 x 17.5mm (length x diameter)
