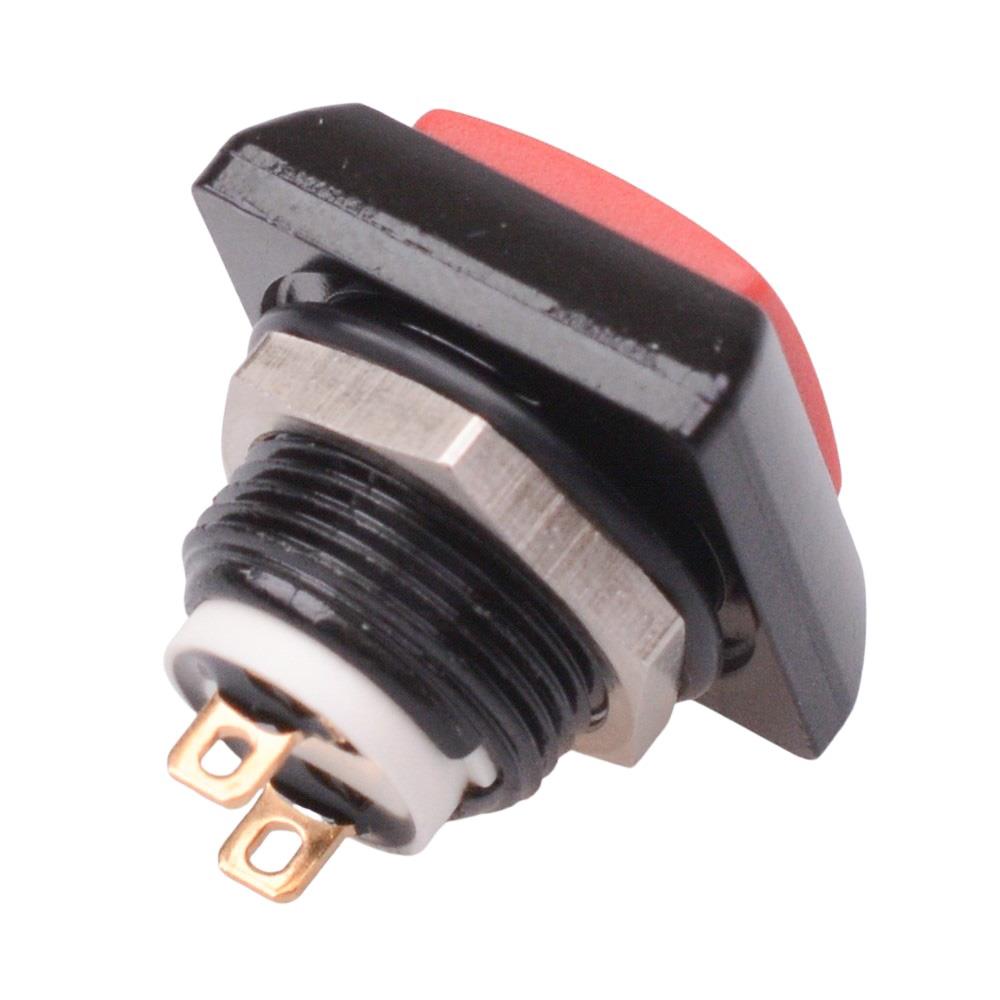

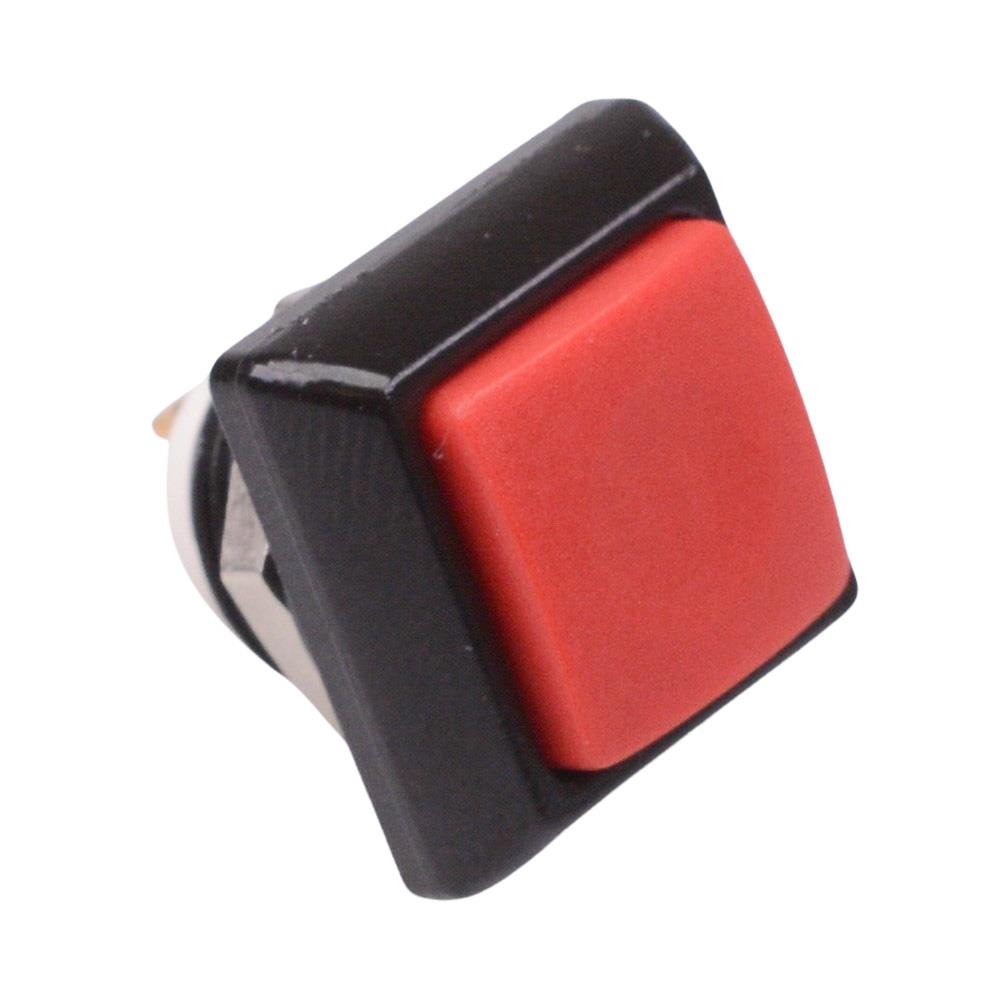

ICC3SAD6 APEM Red Square Momentary NO 12mm Push Button Switch SPST IP67

The ICC3SAD6 is a red momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug SPST contacts, suitable for a wide range of applications.

Momentary operation

SPST contacts

12mm chrome bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminas

Gold plated silver contacts

Rating: 5A 28VDC

Panel thickness: 1.5-4mm

Dimensions: 20 x 17.5 x 17.5mm (height x width x length)
