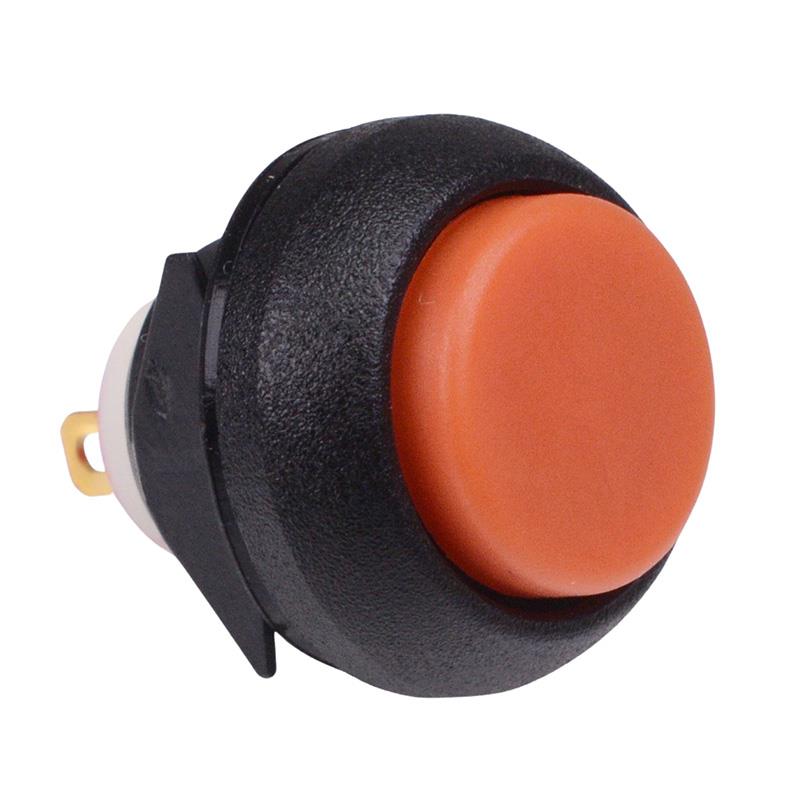

IBP3SAD900 Orange Momentary Snap-In 12mm Push Button Switch SPST IP67 APEM

The IBR3SA900 is a orange momentary push button switch with tactile feedback when pressed and a compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

Momentary operation

SPST contacts

12mm snap-in bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 400mA 32VAC - 100mA 48VDC

Panel thickness: 0.8-1.8mm

Dimensions: 20 x 17.5mm (length x diameter)
