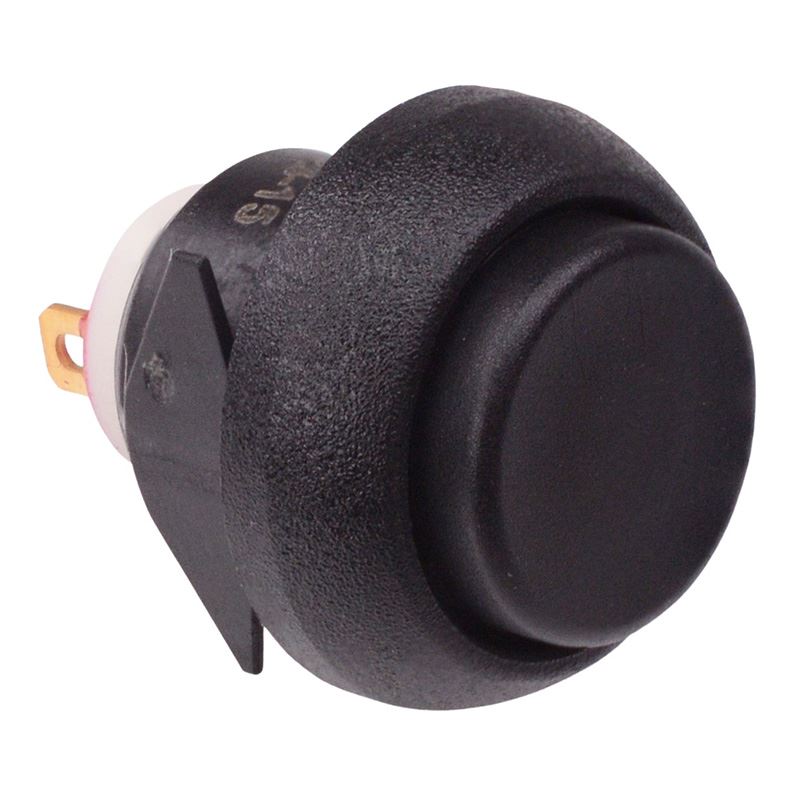

IBP3SAD200 Black Momentary Snap-In 12mm Push Button Switch SPST IP67 APEM

IBP3SAD200 Black Momentary Snap-In 12mm Push Button Switch SPST IP67 APEM

£12.53
£11.56 £12.53
Sale Sold out

Order Code: 487126

Delivery calculated at checkout.
Available Online Only

20 in stock
View full details

Product Description

The IBR3SA200 is a black momentary push button switch with tactile feedback when pressed and a compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

  • Momentary operation
  • SPST contacts
  • 12mm snap-in bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 400mA 32VAC - 100mA 48VDC
  • Panel thickness: 0.8-1.8mm
  • Dimensions: 20 x 17.5mm (length x diameter)
