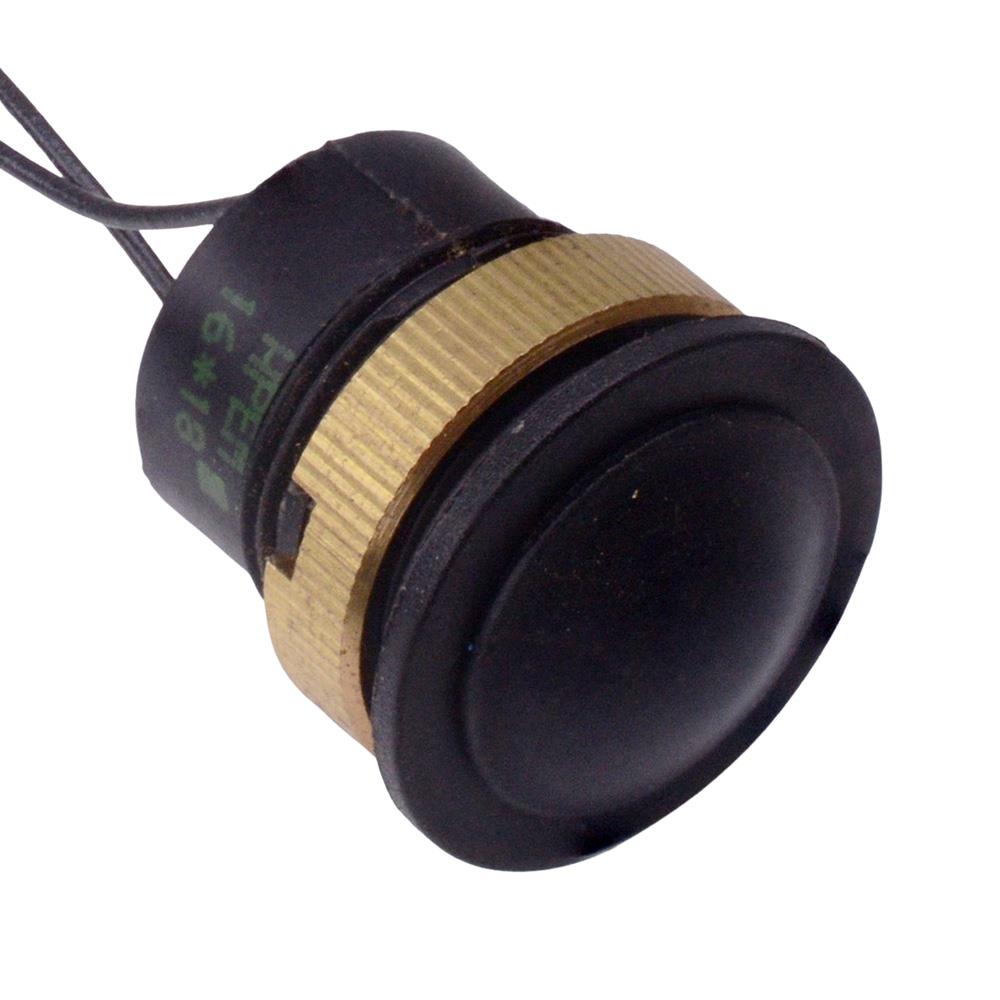

IAR3F1200X1223-07 APEM Black Low Profile 16mm Push Button Switch SPST-NO IP67

The IAR3F1200X1223-07 switch consists of a polyurethane membrane which depresses when the switch is actuated. The membrane is press fitted onto the bushing, providing an IP67 front of panel seal and ensuring high resistance to frost and external contaminants. The actuator material provides a soft feel and allows easy operation even with gloved hands. The low profile design allows easy actuation when the switches are matrix mounted.

Momentary operation

SPST-NO contacts

16mm bushing

Sealed to IP67

Panel cut-out: 16.2mm

500mm flying leads

Rating: 2A 24VDC

Panel thickness: 7mm max
