• 1.5V to 6V High Torque DC Motor
1 1

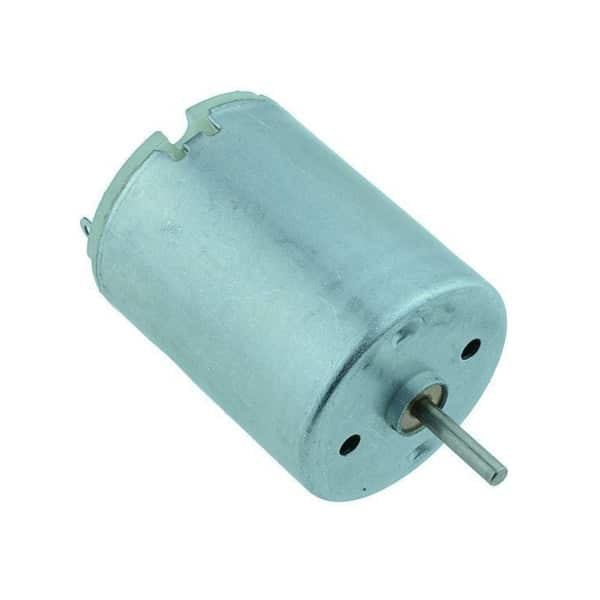

High Torque Round DC Motor 1.5V to 6.0V 9600rpm

High Torque Round DC Motor 1.5V to 6.0V 9600rpm

£3.99
£3.99
Sale Sold out
Delivery calculated at checkout.
Order Code: 14-127
View full details

Product Description

High torque miniature DC motor with a 1.5V to 6.0V operating range and 9600rpm speed, suitable for educational and model applications.

Specifications
Rated voltage (Nominal)3V
Operating Voltage1.5-6.0V
No load current0.25A
Rated load current (at maximum efficiency)1.14A
Output Wattage1.58W
No load speed9600rpm
Rated load speed7790rpm
Shaft Diameter2.0mm
Shaft length10mm
Length30.5mm
Diameter24mm
