Heated Rear Windscreen illuminated Automotive Momentary 12mm Push Button Switch SPST IP67

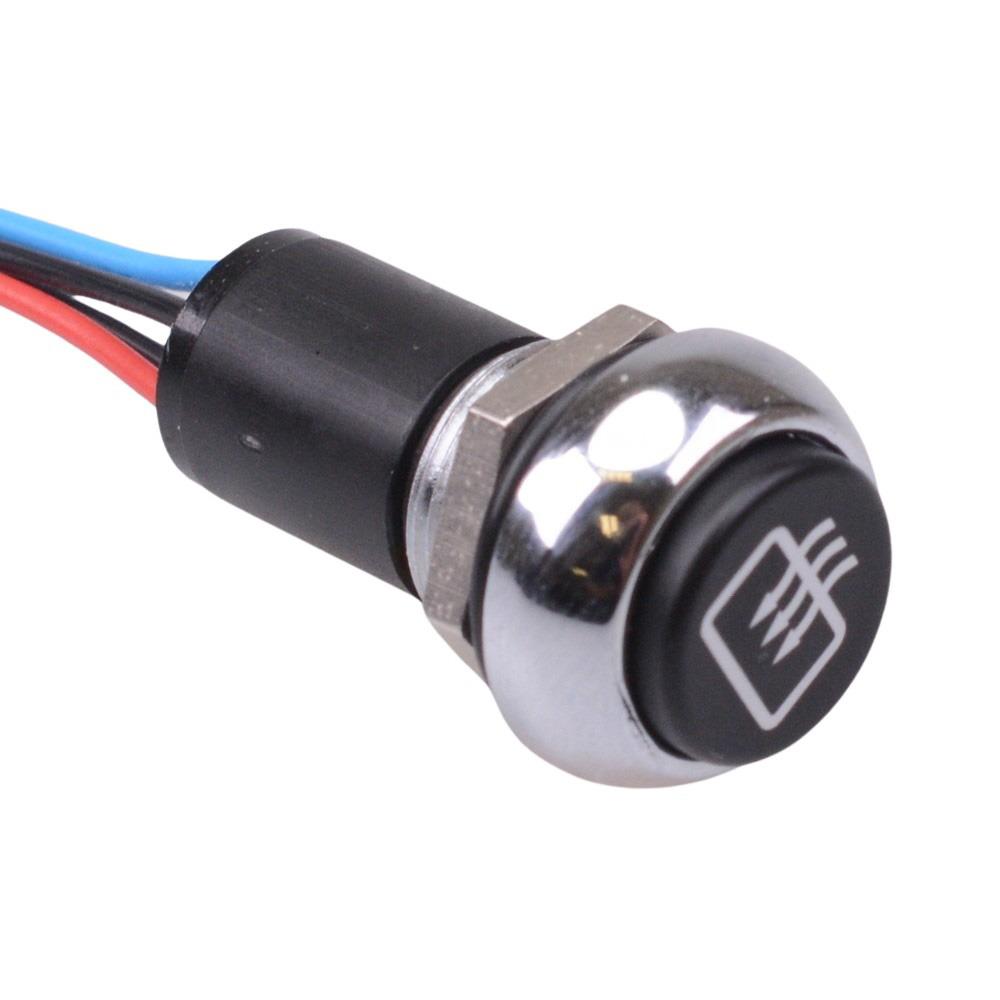

The IPP3FAD2R0Y101X1223-17 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.

Heated rear windscreen illuminated symbol

Momentary NO operation

Yellow LED

LED forward voltage: 2.1V

LED forward current: 20mA

150mm flying leads

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Solder lug terminals

Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC

Panel thickness: 1.5-4mm

Dimensions: 29.8 x 17.5mm (height x diameter)
