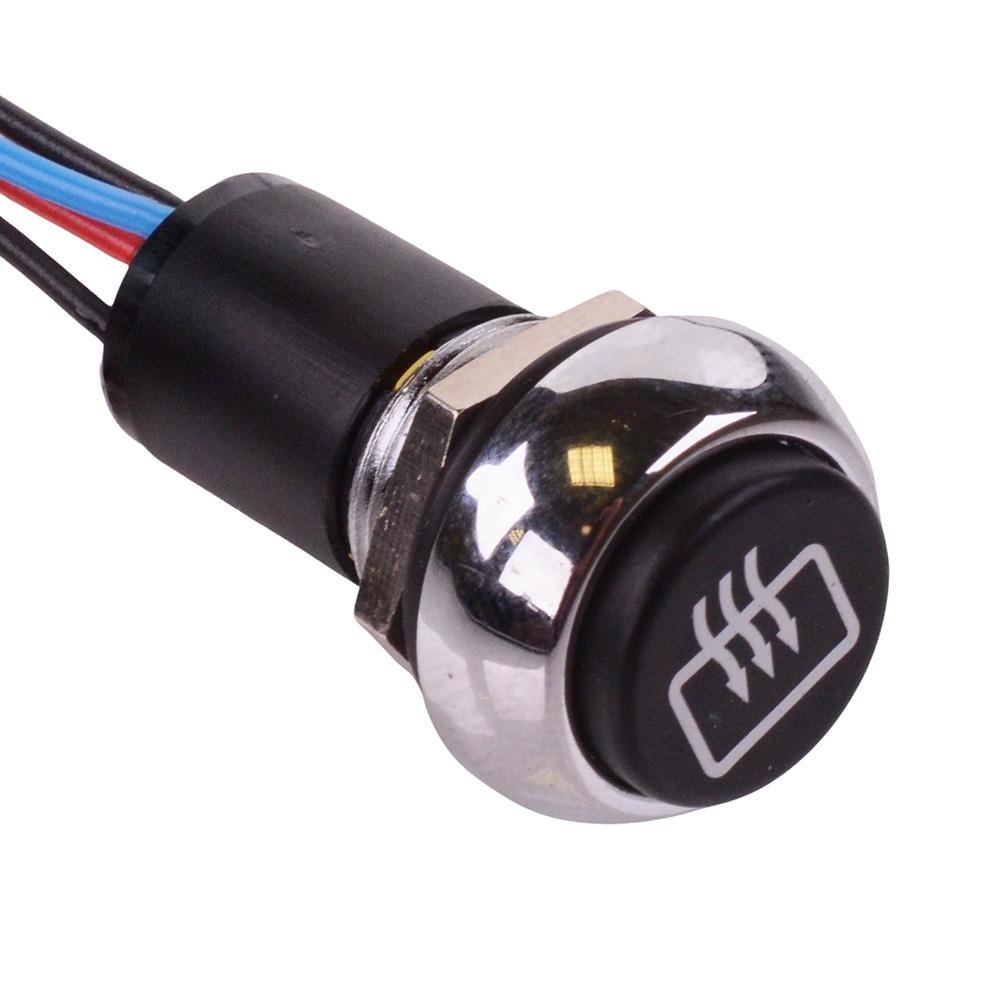

Heated Front Window illuminated Automotive Momentary 12mm Push Button Switch SPST IP67

The IPP3FAD2R0Y101X1223-17 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.

• Heated rear window illuminated symbol
• Momentary NO operation
• Yellow LED
• LED forward voltage: 2.1V
• LED forward current: 20mA
• 150mm flying leads
• SPST contacts
• 12mm bushing
• Sealed to IP67
• Panel cut-out: 13.6mm
• Solder lug terminals
• Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
• Panel thickness: 1.5-4mm
• Dimensions: 29.8 x 17.5mm (height x diameter)
