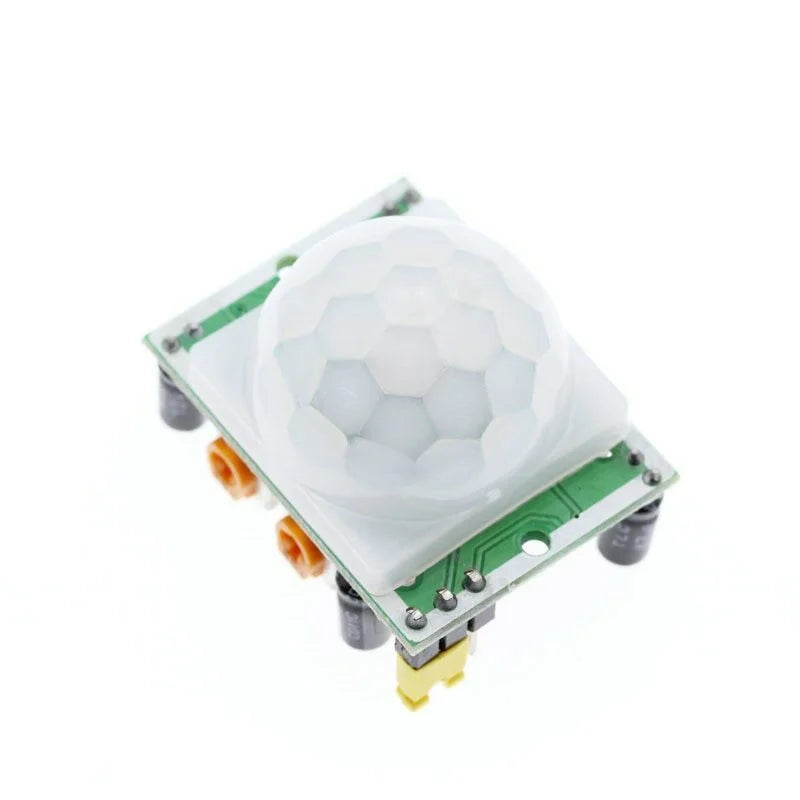

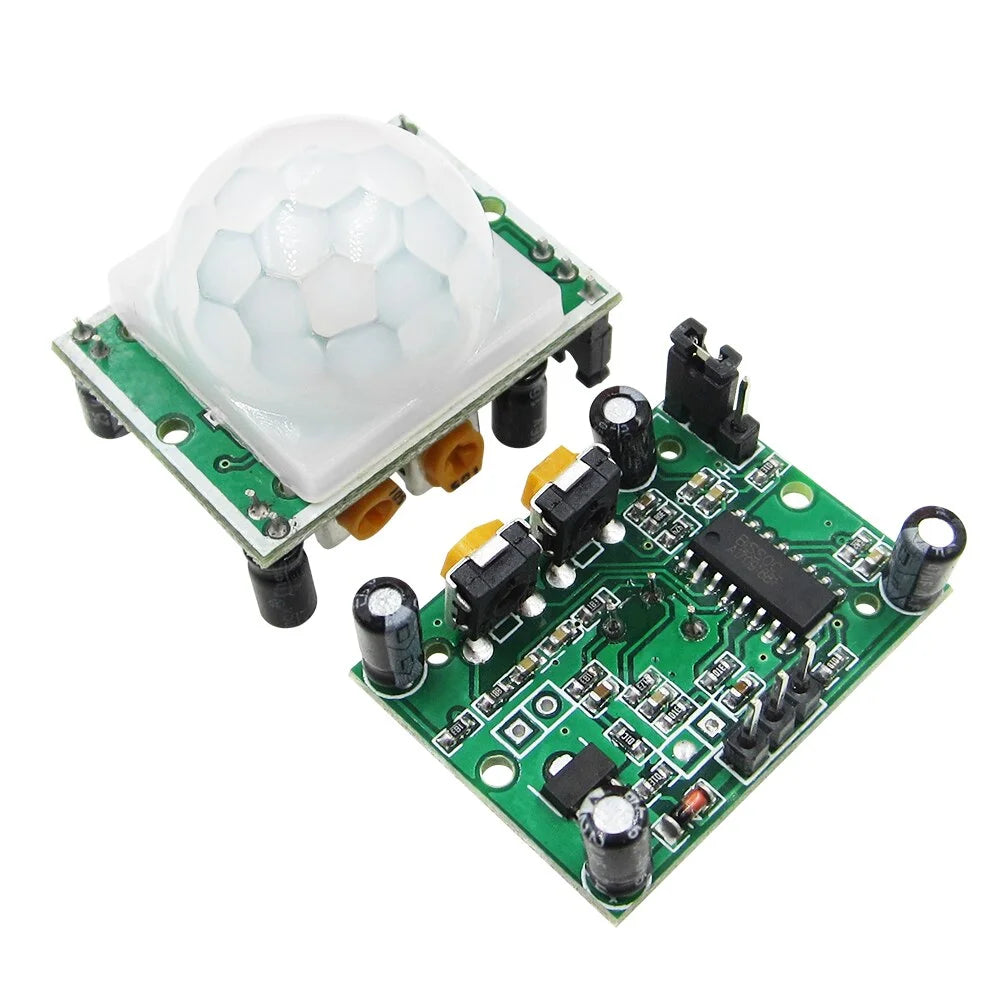

HC-SR501 Motion Sensor Module Detector PIR Adjustable

HC-SR501 Motion Sensor Key Features:

• Infrared Detection: The SR501 is adept at identifying infrared changes, interpreting them as motion and setting its output accordingly.

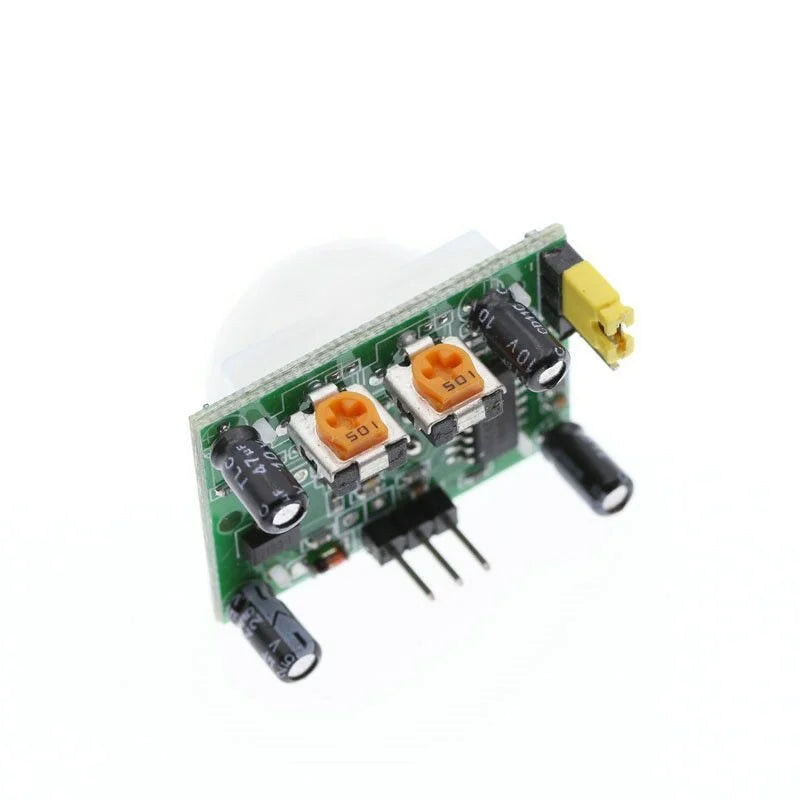

• User-Centric Adjustments: The sensor’s motion interpretation can be fine-tuned based on user settings, offering flexibility in its application.
• Wide Voltage Range: Operates efficiently within a voltage range of 4.5V to 20V, with the capability to function at lows of 3.9V.
• Energy Efficient: With a quiescent current of just 50uA, it ensures minimal power consumption.
• Versatile Output Levels: Offers a high output level of 3.3V and a low output level of 0V.
• Trigger Modes: Features both L trigger (non-repeatable) and H trigger (repeatable) modes to cater to different requirements.

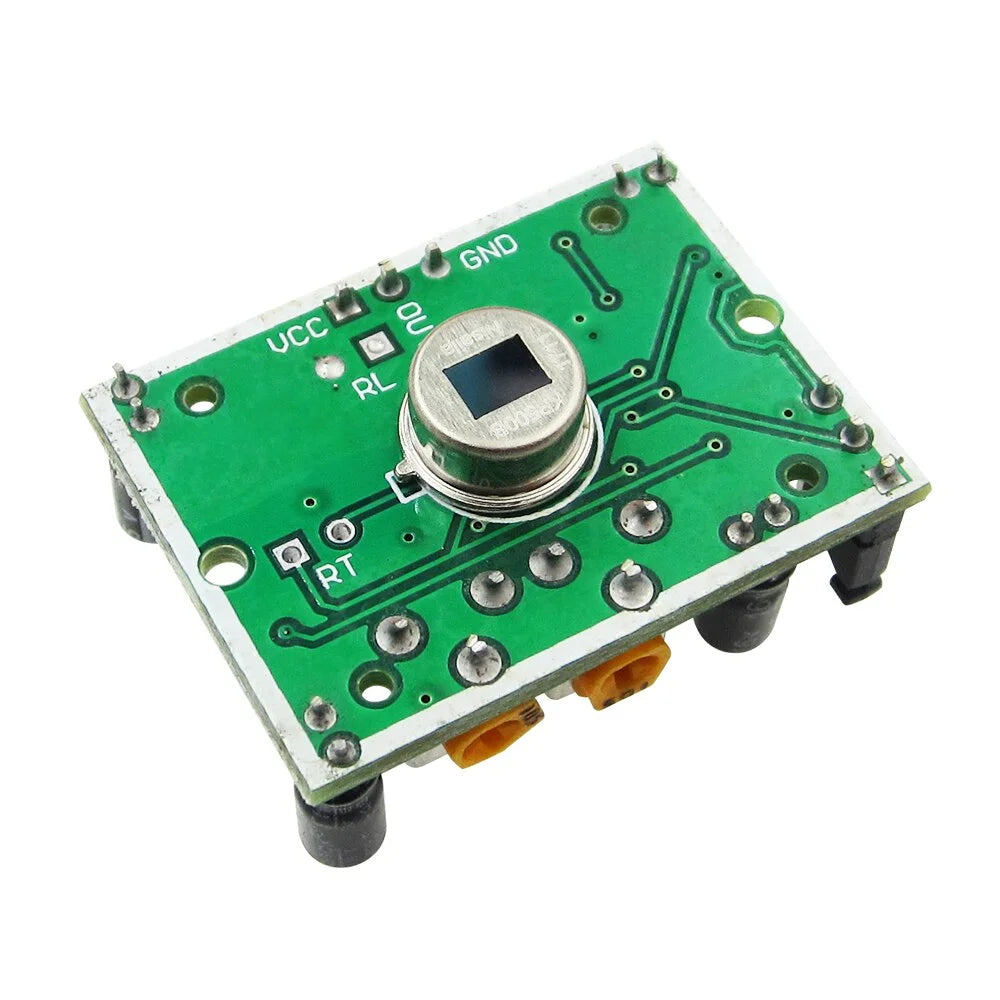

• Compact Design: The circuit board, measuring 32 x 24 mm, is designed for easy integration into various projects.
• Wide Sensing Angle: Boasts a maximum sensing angle of 110°, ensuring comprehensive coverage.
• Optimal Sensing Distance: Can detect motion from a distance ranging between 3 to 7 meters.

HC-SR501 Motion Sensor Specifications At A Glance:

• Input Voltage: 4.5-20V (Operational as low as 3.9V)
• Output Voltage: 0V (Low), 3.3V (High)
• Current Consumption: Less than 50uA

Elevate your electronic projects with Kunkune’s HC-SR501 Motion Sensor. Designed to detect even the slightest infrared changes, this sensor ensures accurate motion detection, making it a must-have for security systems, automation projects, and more.
