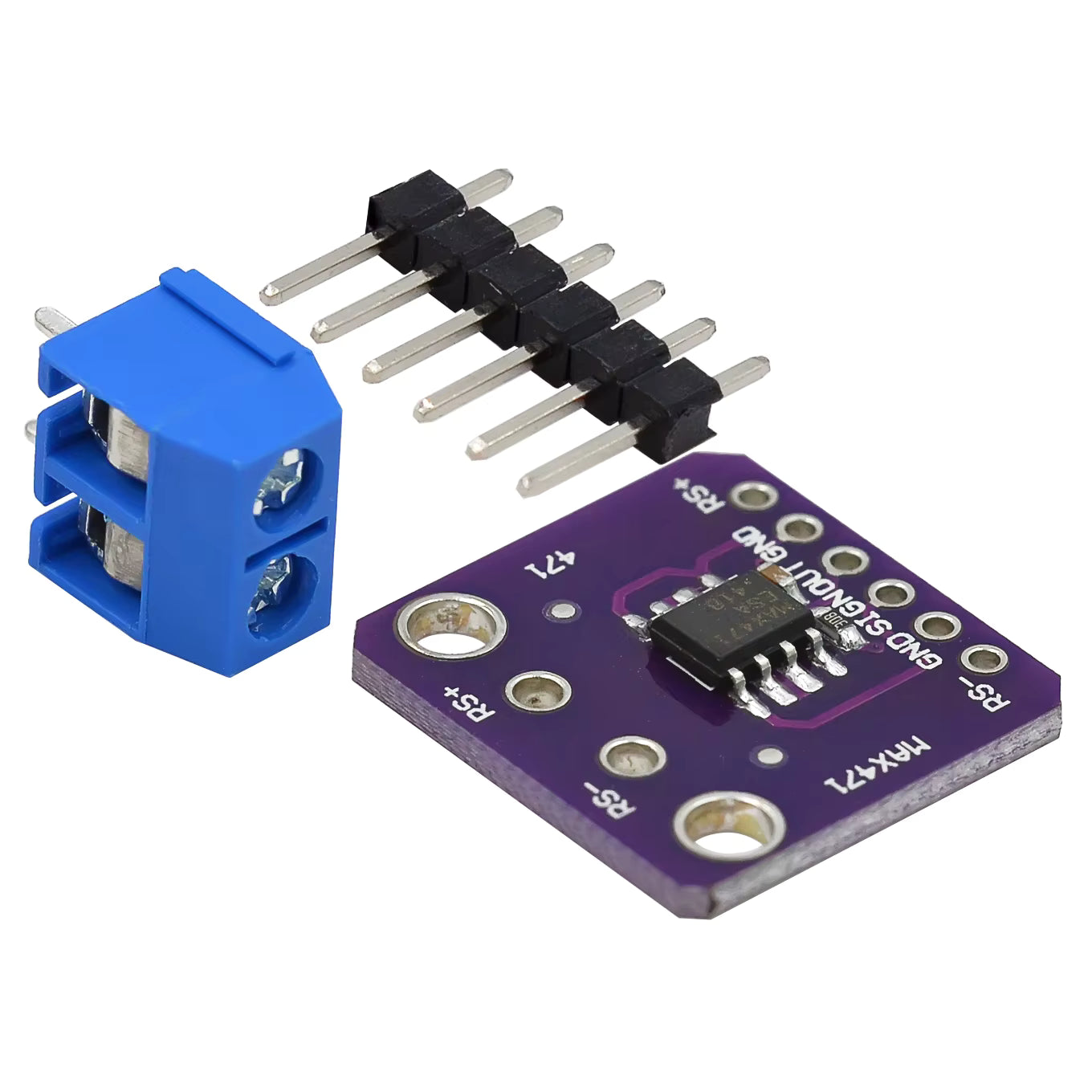

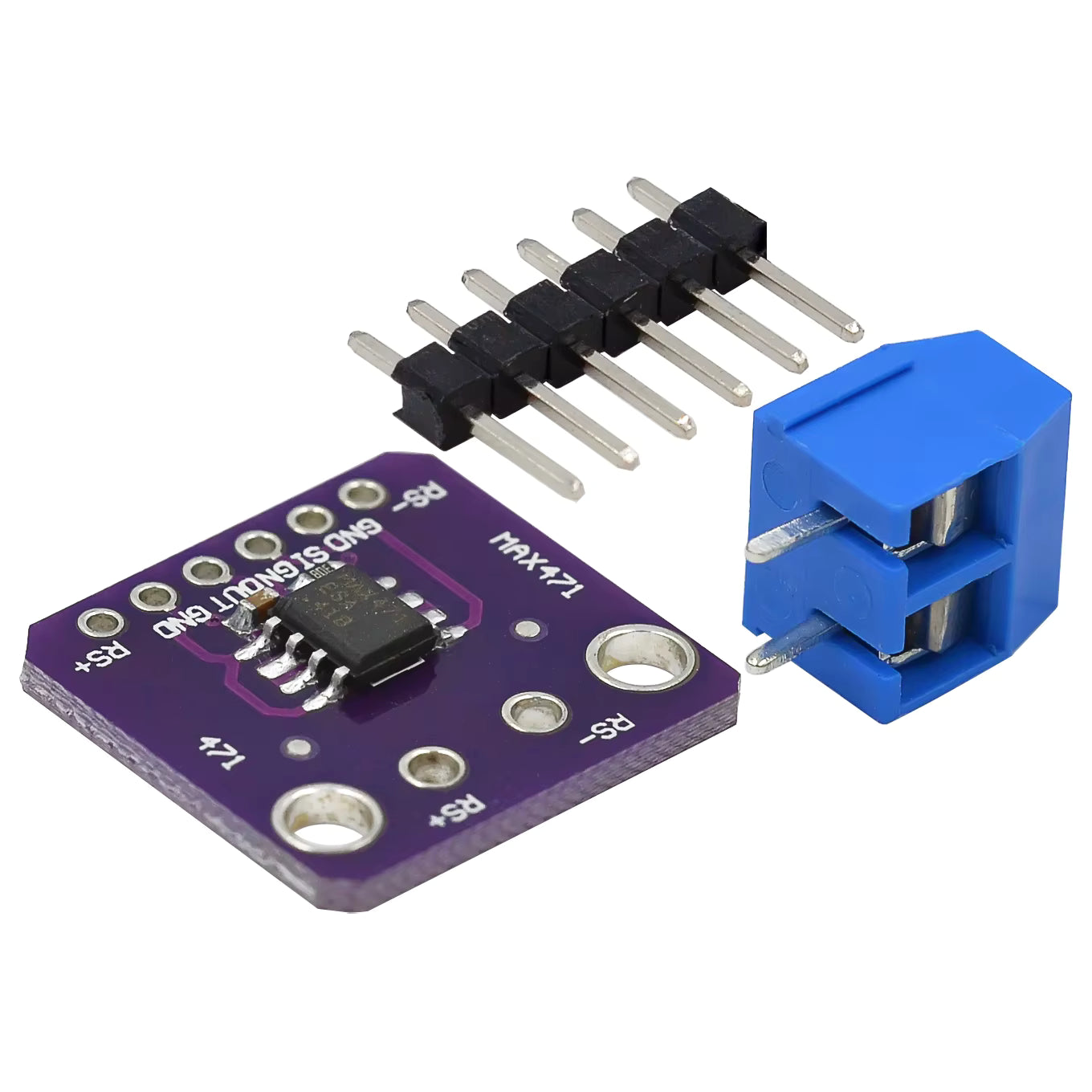

GY-471 MAX471 Current Sensor Module 3A Bidirectional High-Side Detection

GY-471 MAX471 Current Sensor Module delivers laboratory-grade current measurement for Arduino, Raspberry Pi, and embedded systems. Built around the MAX471 IC from Analog Devices, this module provides high-side current sensing that monitors circuits without disrupting ground paths, making it ideal for battery management systems, power monitoring, and IoT applications. Advanced High-Side Current Sensing Technology The MAX471 IC features sophisticated high-side current sensing technology that integrates seamlessly into power distribution networks. Unlike low-side sensors that interfere with system grounding, this module monitors current flow while preserving critical ground paths, essential for battery-powered systems and sensitive electronic applications.

Key Technical Specifications:

Current Range: ±3A bidirectional measurement

Supply Voltage: 3V to 36V DC (universal compatibility)

Accuracy: ±2% over temperature range

Sensitivity: 1V per ampere output

Power Consumption: <100µA

Compact Size: 19.5mm × 20.3mm PCB footprint

Bidirectional Current Detection Monitor both charging and discharging currents with automatic direction sensing. The integrated SIGN pin provides real-time indication of current flow direction, essential for battery management, solar panel monitoring, and power flow analysis. Precision Internal Shunt Resistor.

The factory-calibrated 35mΩ internal shunt eliminates external current sensing resistors, reducing component count and improving reliability. This precision element ensures consistent performance across temperature variations.

Universal Voltage Compatibility From 3V microcontroller projects to 36V industrial applications, the GY-471 adapts to your power requirements.

This wide voltage range supports automotive electronics, industrial automation, and renewable energy systems.

Plug-and-Play Arduino Integration Simple analog output interface connects directly to any microcontroller ADC input. No complex I2C protocols, just straightforward voltage readings that translate directly to current measurements.

Applications Smart Battery Management: Monitor charging and discharging cycles in real-time, implement intelligent power cut-off systems, and track battery health and performance metrics.

IoT Energy Monitoring: Build smart home energy meters, monitor appliance power consumption, and develop solar panel performance trackers.

Industrial & Automation: Motor current monitoring and protection, power supply quality assessment, and equipment health monitoring.

Engineer-Friendly Design High-quality PCB with gold-plated contacts ensures long-term reliability.

Intelligent thermal design with adequate copper area ensures stable operation under continuous 3A load conditions.

The open-collector SIGN output interfaces with 3.3V and 5V logic systems, providing reliable current direction indication.

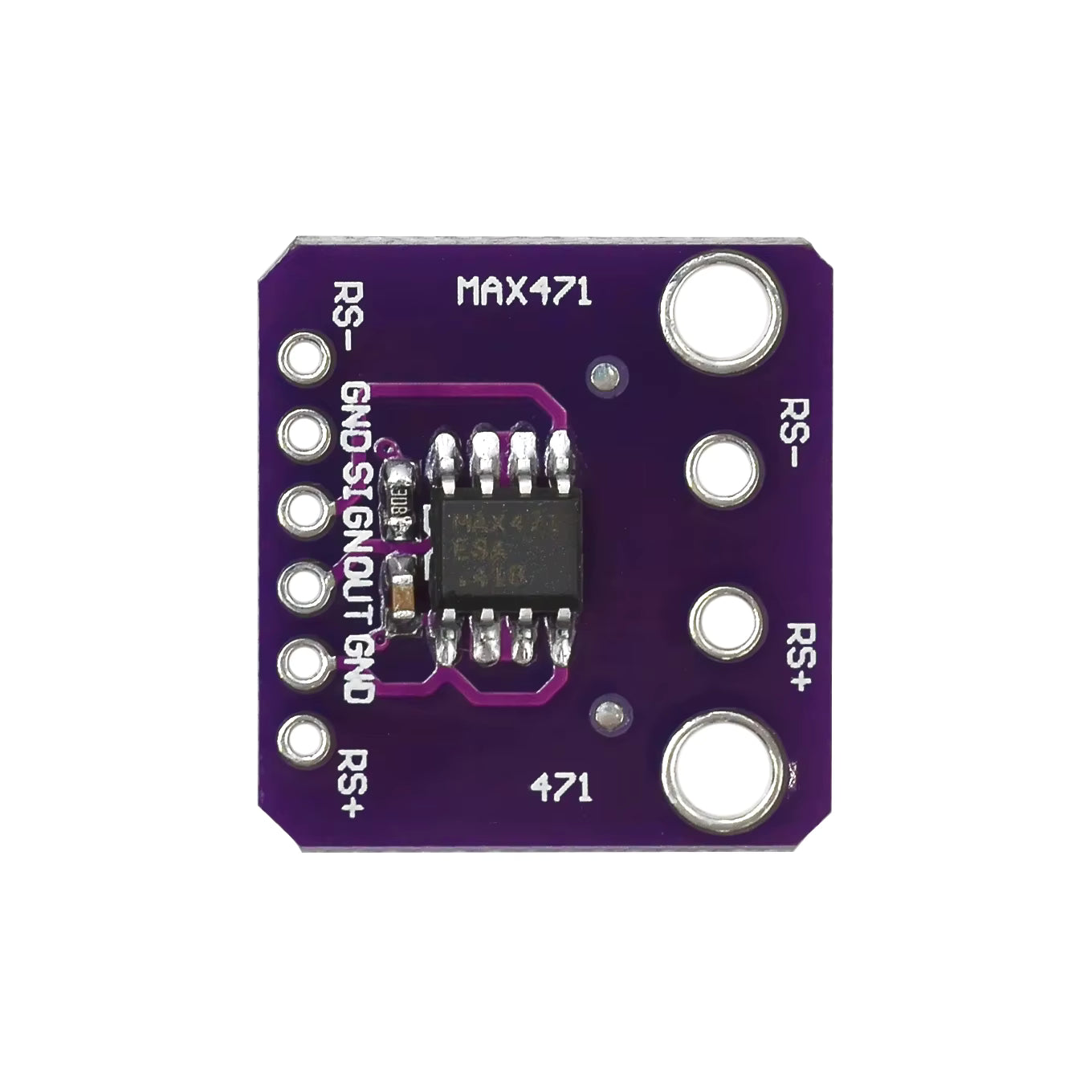

Performance Advantages Laboratory testing confirms ±2% accuracy over the full temperature range. Fast response time under 10µs captures rapid current changes, suitable for dynamic load monitoring and motor control applications. Engineered for reliable operation from -40°C to +85°C, ensuring consistent performance across diverse environmental conditions. Simple Integration Process RS+ → Connect to positive power source RS- → Connect to load positive terminal GND → System ground reference OUT → Analog input (ADC) pin SIGN → Digital input (optional direction sensing)
