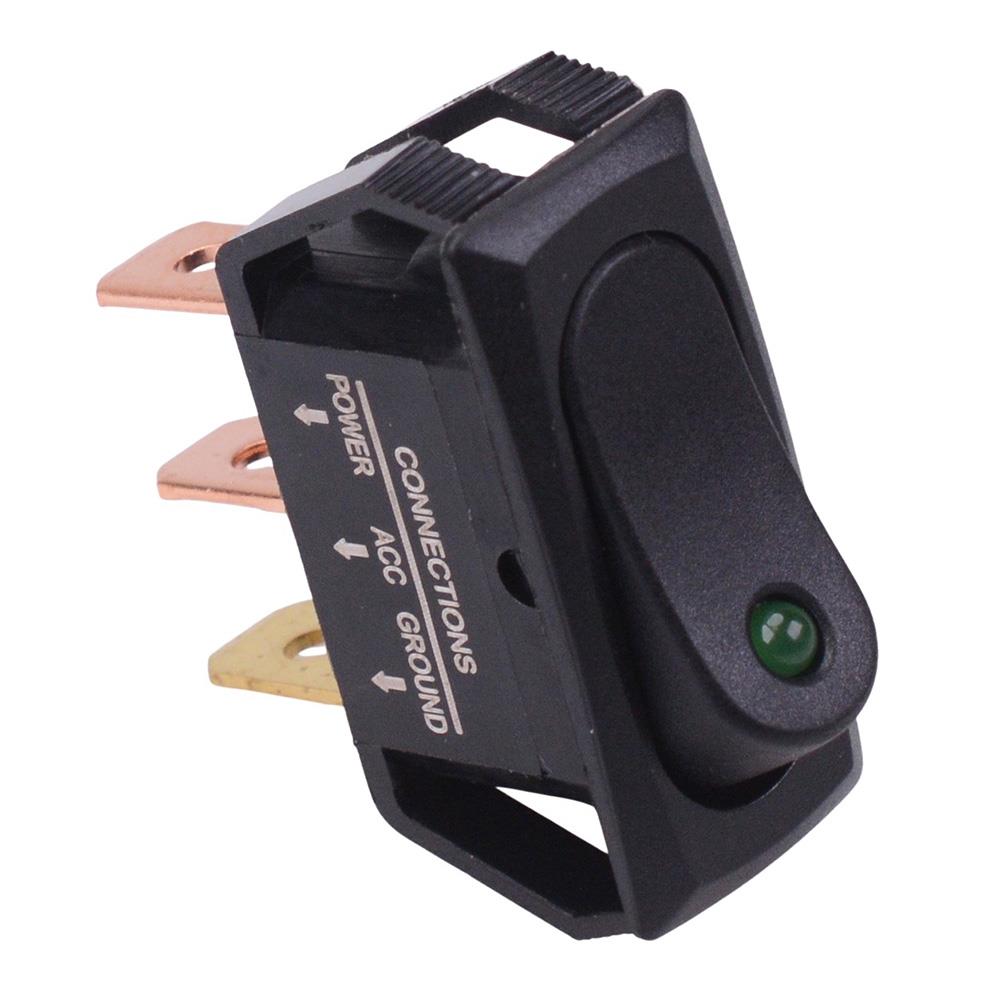

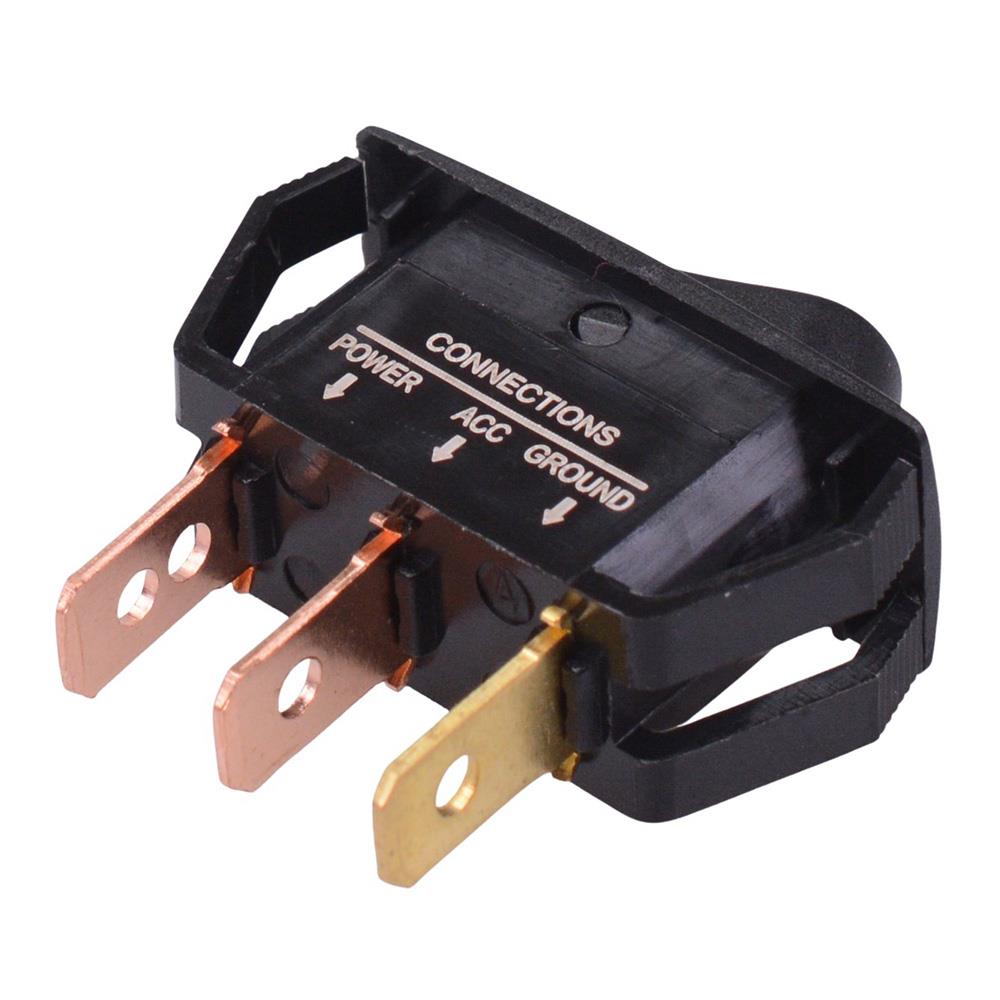

Green 12V LED Rectangle Rocker Switch 25A SPST R13-242L-01

R13-242L rectangle rocker switch featuring green 12V illumination and SPST contacts. The switch requires a 28.5 x 11.6mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 25A and is suitable for a wide range of DC automotive applications.

Function: On-Off

Contacts: SPST

Green 12V LED illumination

Panel cut-out: 28.5 x 11.6mm

Panel thickness: 0.75-3mm

Rating: 25A 12VDC

6.3mm quick connect terminals

Dimensions: 30.5 x 14.0 x 32.6mm (length x width x height)
