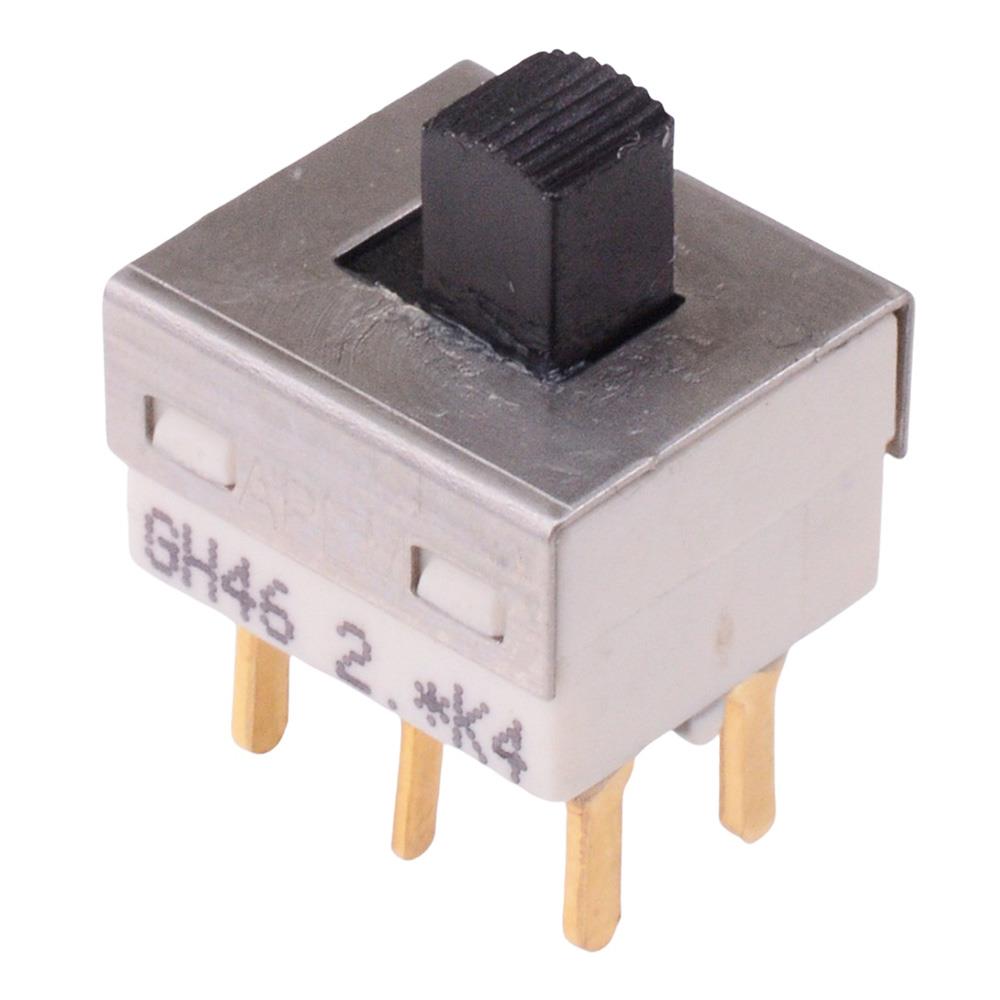

GH46P000001 APEM On-On PCB Slide Switch DPDT

The GH46P000001 is a telecom grade slide switch featuring gold plated PCB terminals and DPDT contacts. The switch features a 5.1mm height actuator and is suitable for professional applications.

On-On function

Contacts: DPDT

Rating: 0.4VA 20VAC/DC

5.1mm height actuator

Gold plated brass terminals

Epoxy sealed PCB terminals

Terminal pitch: 4.7mm

Dimensions: 12.7 x 11.4mm (length x width)
