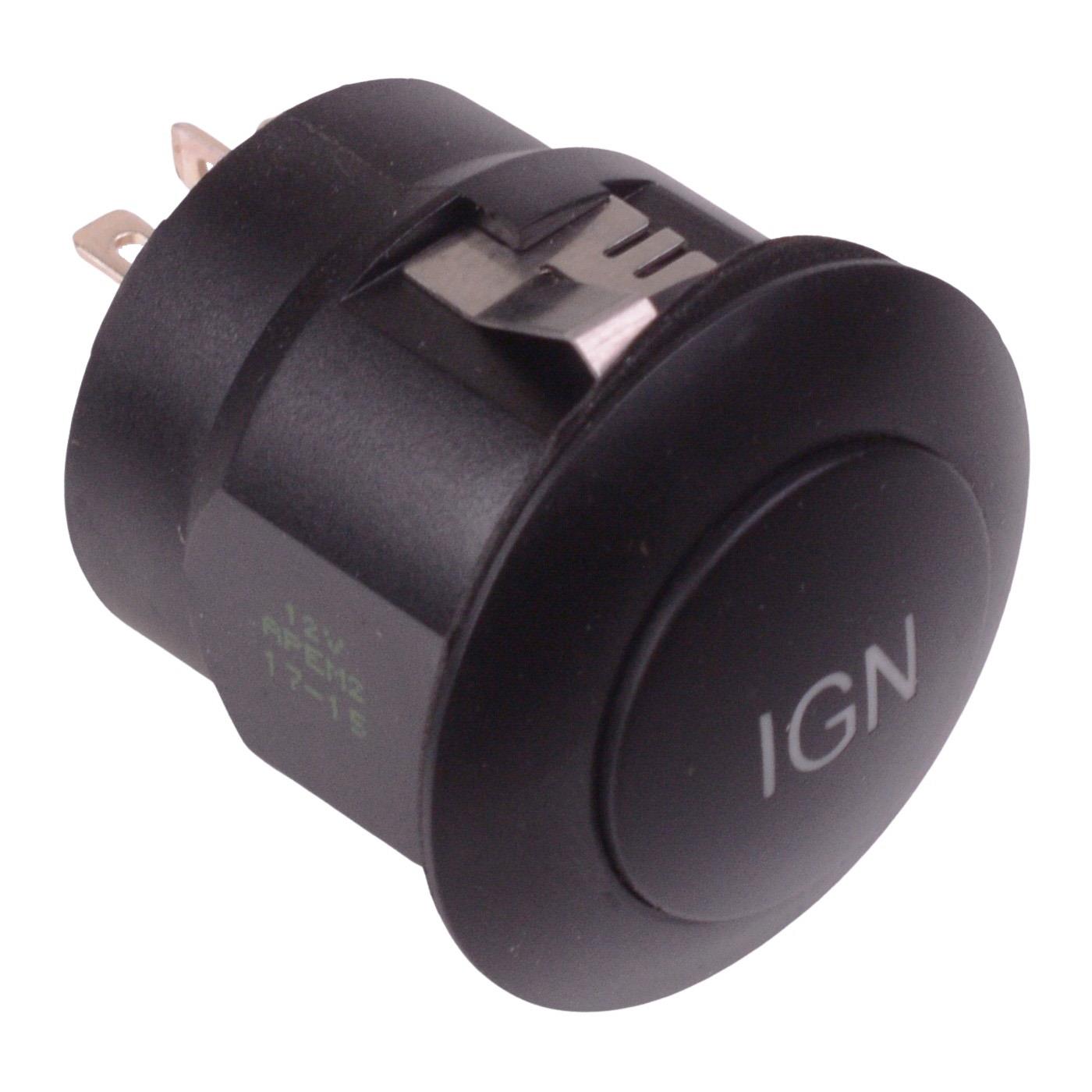

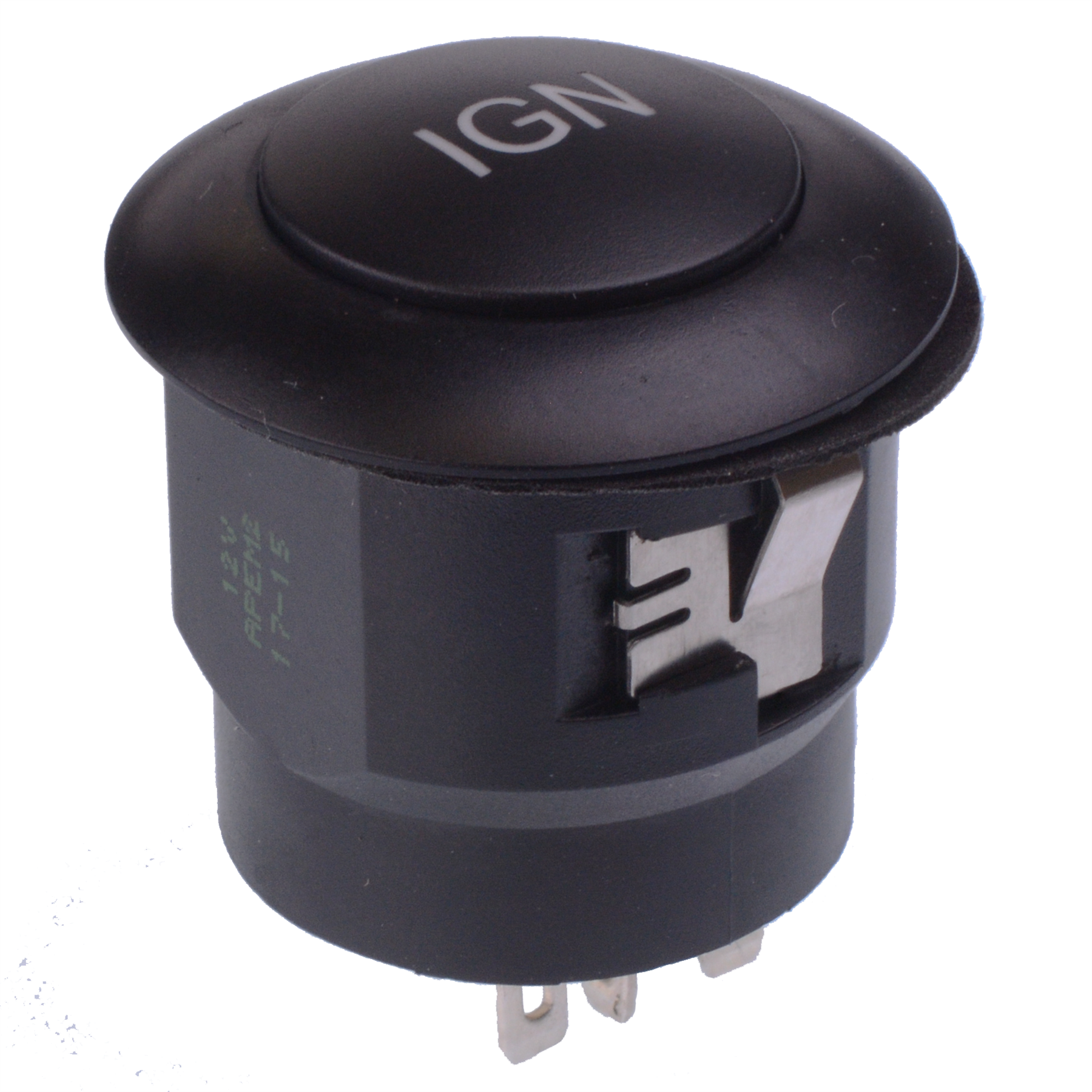

FPBR1D1222A12D5 APEM Blue illuminated On-Off Latching 26mm Push Button Switch DPST

The FPBR1D1222A12D5 is a snap-in 26mm latching push button switch with Off-On function and solder lug terminals. The switch features blue 12V illumination and IGN laser marking. The switch is suitable for applications including autotmotive and fireworks.

On-Off function

DPST function

Snap-in mounting

Blue 12VDC illumination

Solder lug terminals

Panel cut-out: 26mm

Panel thickness: 1.5-2mm

Rating: 4A 12VDC
