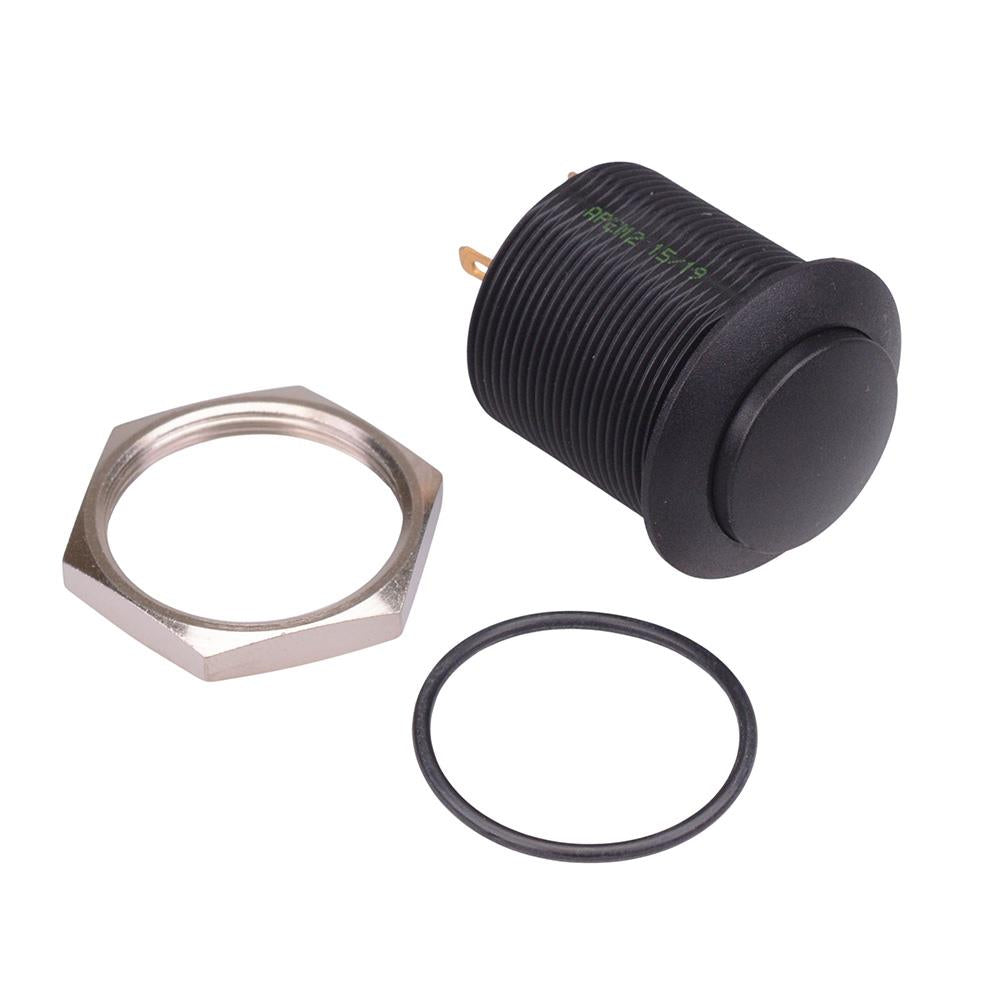

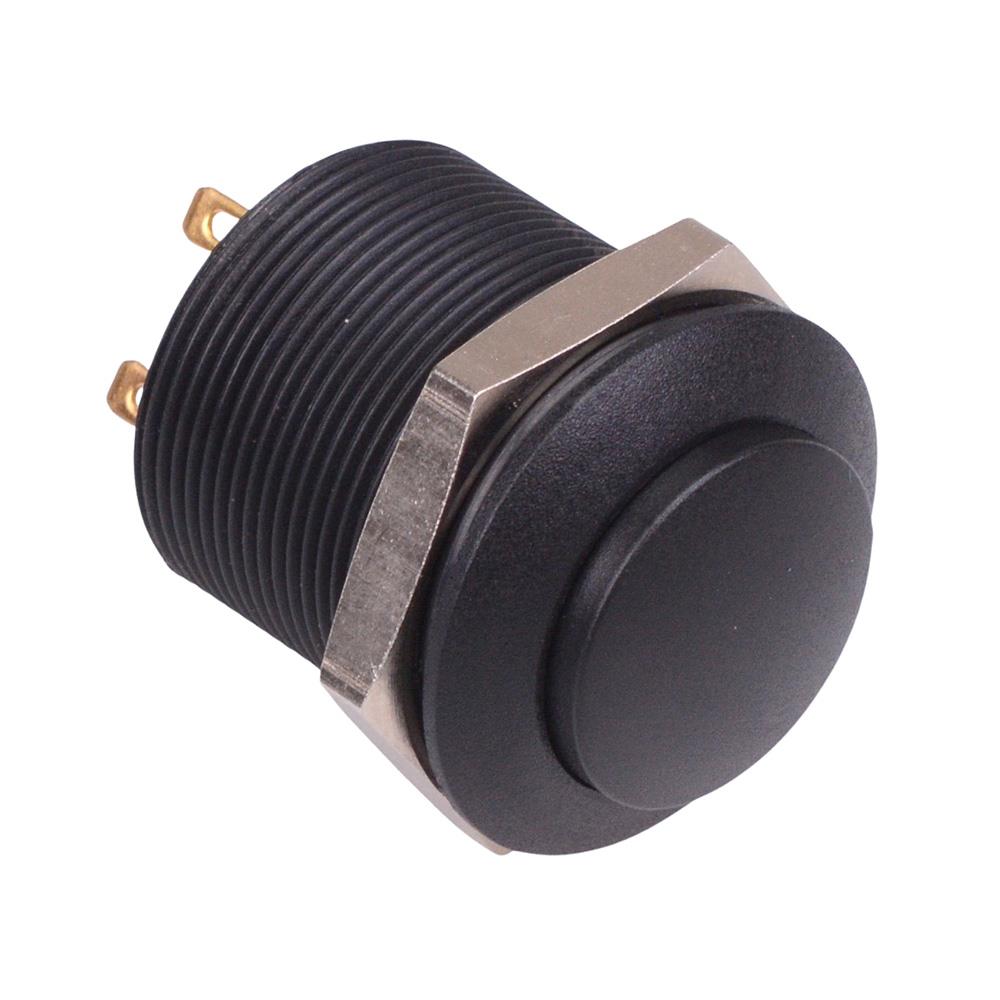

FPAR1B1422X0X Black Latching Push Button Switch Round Actuator 24.2mm DPST APEM

The FPAR1B1422X0X is a black push button switch featuring a latching mechanism and curved round actuator. The switch features DPST contacts and 24mm thread bushing, making it suitable for use in integrated designs.

Black button

DPST contacts

24.2mm panel cut-out

Curved round actuator

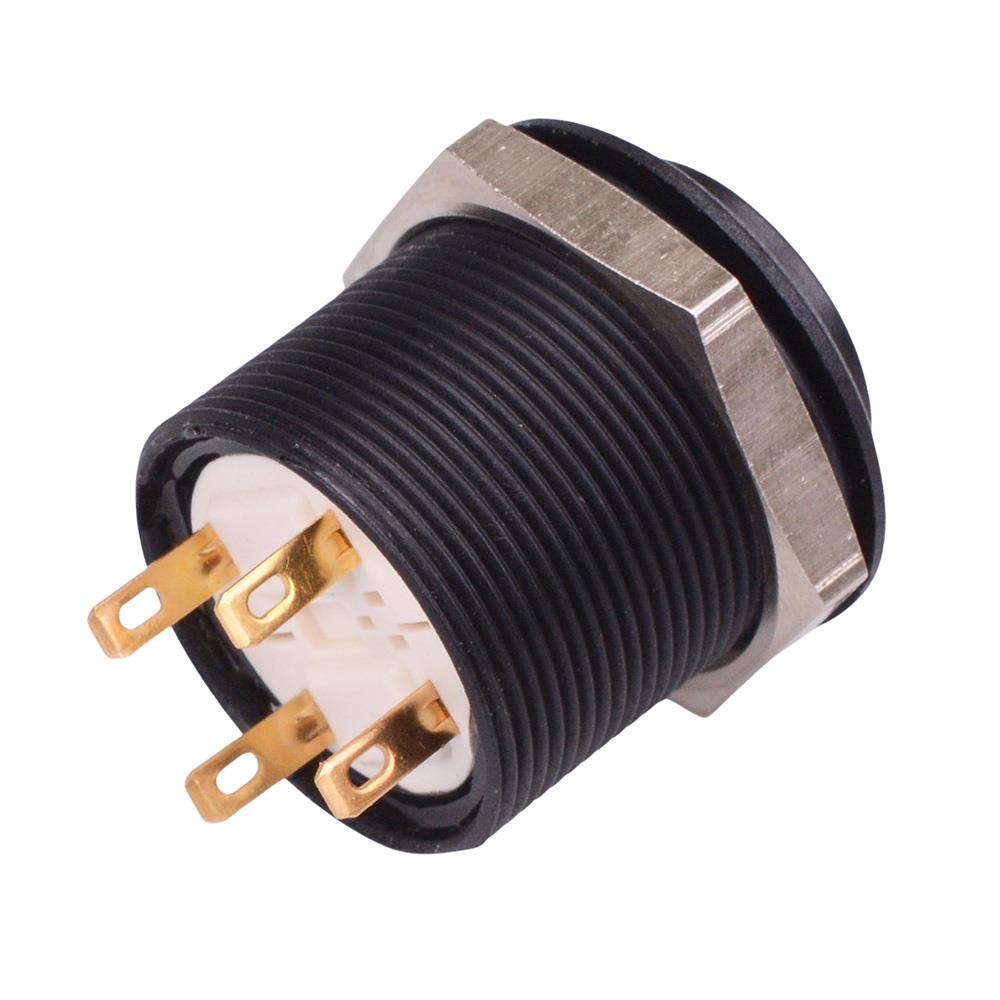

Solder lug terminals

Rating: 200mA 12VDC resistive load

Panel thickness: 1-18mm

Dimensions: 30.6 x 27.5mm (height x diameter)
