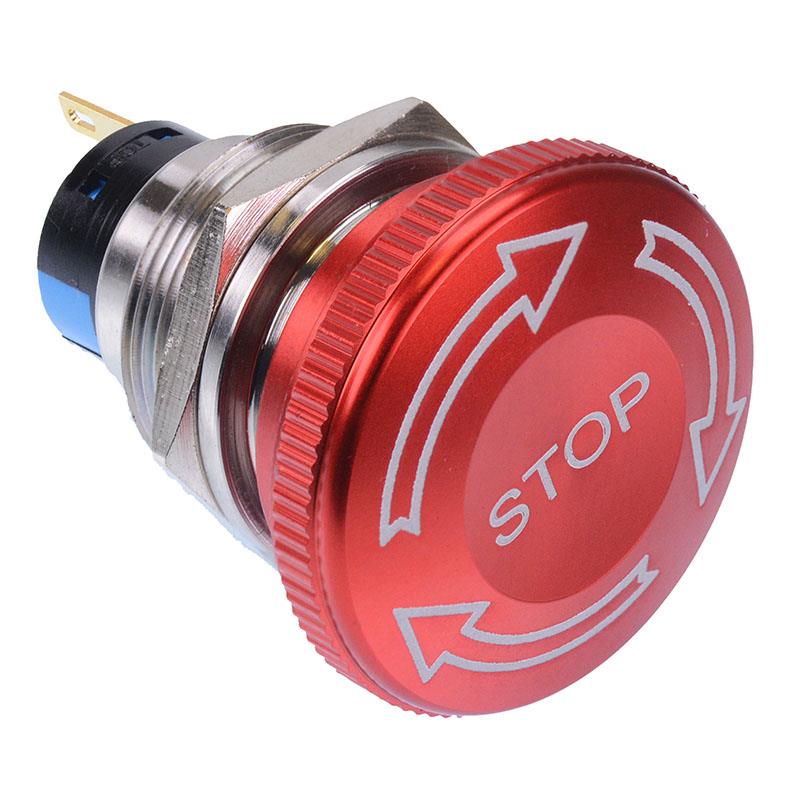

Emergency Stop 22mm Push Button Switch Stainless Steel 5A

Vandal resistant emergency stop switch manufactured from stainless steel featuring a latching mechanism and twist release. The switch requires a 22mm panel cut-out and is suitable for a range of panel mount applications.

Push to lock in the 'Off' position, twist clockwise to release it

Knurled actuator

1NO/1NC contacts

Panel cut-out: 22mm

Panel thickness: 1-6mm

IP65 protection rating

Solder 2.8 x 0.5mm terminals

Rating: 0.5A 250VAC

Body material: stainless steel

Dimensions: 51 x 29.5mm (length x diameter)
